Ref	Part #	Item	Price
010	15534-73033	ASSY PUMP,WATER	$217.89
010	15534-73033	ASSY PUMP,WATER	$217.89
020	15534-73520	FLANGE, WATER PUMP	$79.75
020	15534-73520	FLANGE, WATER PUMP	$79.75
030	15534-73550	BEARING BALL RADIAL12/26	$39.26
030	15534-73550	BEARING BALL RADIAL12/26	$39.26
040	15852-73050	SEAL,MECHANICAL ASSY ***	$22.21
040	15852-73050	SEAL,MECHANICAL ASSY ***	$22.21
050	15531-73510	IMPELLER, WATER PUMP ***	$26.80
050	15443-73510	IMPELLER, WATER PUMP ***	$25.62
060	16241-73370	PIPE, WATER RETURN	$3.19
060	15852-73340	PIPE, WATER RETURN	$7.19
070	15676-73430	GASKET, WATER PUMP	$5.30
070	15676-73430	GASKET, WATER PUMP	$5.30
080	01023-50625	BOLT M6x1.0x25 mm ***	$0.99
090	15694-74110	FAN, PUSHER 330MM	$78.16
100	01754-50665	BOLT M6x1.0x65 mm ***	$3.68
110	15656-74250	PULLEY, FAN ***	$44.18
120	15656-74152	SPACER, FAN 50MM	$26.48
130	15752-74280	PULLEY	$179.11
140	15752-23360	NUT, CRANKSHAFT ***	$13.55
150	15752-23380	WASHER, CRANKSHAFT	$2.26
160	1N132-97010	BELT, FAN 362	$24.41
160	66426-64210	BELT ***	$12.39

Ref: 010 Part #: 15534-73033 Price: $217.89

Item: ASSY PUMP,WATER

QTY:

Ref: 010 Part #: 15534-73033 Price: $217.89

Item: ASSY PUMP,WATER

QTY:

Ref: 020 Part #: 15534-73520 Price: $79.75

Item: FLANGE, WATER PUMP

QTY:

Ref: 020 Part #: 15534-73520 Price: $79.75

Item: FLANGE, WATER PUMP

QTY:

Ref: 030 Part #: 15534-73550 Price: $39.26

Item: BEARING BALL RADIAL12/26

QTY:

Ref: 030 Part #: 15534-73550 Price: $39.26

Item: BEARING BALL RADIAL12/26

QTY:

Ref: 040 Part #: 15852-73050 Price: $22.21

Item: SEAL,MECHANICAL ASSY ***

QTY:

Ref: 040 Part #: 15852-73050 Price: $22.21

Item: SEAL,MECHANICAL ASSY ***

QTY:

Ref: 050 Part #: 15531-73510 Price: $26.80

Item: IMPELLER, WATER PUMP ***

QTY:

Ref: 050 Part #: 15443-73510 Price: $25.62

Item: IMPELLER, WATER PUMP ***

QTY:

Ref: 060 Part #: 16241-73370 Price: $3.19

Item: PIPE, WATER RETURN

QTY:

Ref: 060 Part #: 15852-73340 Price: $7.19

Item: PIPE, WATER RETURN

QTY:

Ref: 070 Part #: 15676-73430 Price: $5.30

Item: GASKET, WATER PUMP

QTY:

Ref: 070 Part #: 15676-73430 Price: $5.30

Item: GASKET, WATER PUMP

QTY:

Ref: 080 Part #: 01023-50625 Price: $0.99

Item: BOLT M6x1.0x25 mm ***

QTY:

Ref: 090 Part #: 15694-74110 Price: $78.16

Item: FAN, PUSHER 330MM

QTY:

Ref: 100 Part #: 01754-50665 Price: $3.68

Item: BOLT M6x1.0x65 mm ***

QTY:

Ref: 110 Part #: 15656-74250 Price: $44.18

Item: PULLEY, FAN ***

QTY:

Ref: 120 Part #: 15656-74152 Price: $26.48

Item: SPACER, FAN 50MM

QTY:

Ref: 130 Part #: 15752-74280 Price: $179.11

Item: PULLEY

QTY:

Ref: 140 Part #: 15752-23360 Price: $13.55

Item: NUT, CRANKSHAFT ***

QTY:

Ref: 150 Part #: 15752-23380 Price: $2.26

Item: WASHER, CRANKSHAFT

QTY:

Ref: 160 Part #: 1N132-97010 Price: $24.41

Item: BELT, FAN 362

QTY:

Ref: 160 Part #: 66426-64210 Price: $12.39

Item: BELT ***

QTY:

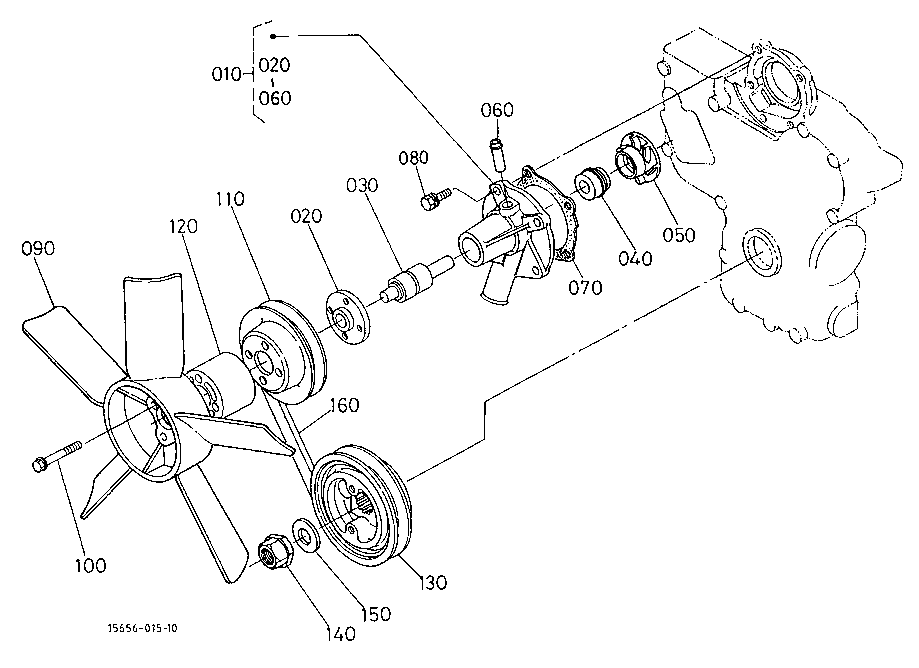

KUBOTA B1550E PARTS ENGINE T01700 WATER PUMP
