KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
1	70050-94096	SUBFRAME, WELDMNT ***	$728.97
2	70050-94094	UPRIGHT, RH	$150.16
3	70050-94090	ARM, UPRIGHT***	$520.69
4	70050-94092	SPACER	$10.35
5	70050-94093	UPRIGHT, LH	$116.02
6	70050-94091	BRACKET	$18.38
7	70050-02570	BRACKET, REAR MOUNT ***	$65.71
8	01173-51225	BOLT M12x1.25x25 mm	$1.31
9	04512-50120	WASHER, SPRING LOCK ***	$1.70
10	01173-51260	BOLT M12x1.25x60 mm ***	$2.33
11	01073-51230	BOLT M12x1.25x30 mm ***	$1.44
12	75599-31013	NUT,3/8-16UNC FIN HEX G5 PTD * *	$0.99
13	75599-33013	WASHER LOCK 3/8" PTD Std Coil Spg -B *	$0.99
14	75599-01325	BOLT,3/8-16x1 1/4 HEX G5 PTD	$1.18
15	75599-31017	NUT,HEX 5/8-11 NC FIN G5 PTD	$0.99
16	75599-33017	WASHER,5/8 SPRING LOCK *	$0.99
17	75599-01702	BOLT HEX GR 5 PLTD 5/8-11 x 6	$10.12
18	01173-51040	BOLT M10x1.25x40 mm ***	$1.44
18	01173-51030	BOLT M10x1.25x30 mm ***	$1.17
19	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
20	75599-01745	BOLT, HEX 5/8-11x2 1/4 G5 PTD	$4.11
21	01053-51260	BOLT, HEX M12 ***	$2.47

Ref: 1 Part #: 70050-94096 Price: $728.97

Item: SUBFRAME, WELDMNT ***

QTY:

Ref: 2 Part #: 70050-94094 Price: $150.16

Item: UPRIGHT, RH

QTY:

Ref: 3 Part #: 70050-94090 Price: $520.69

Item: ARM, UPRIGHT***

QTY:

Ref: 4 Part #: 70050-94092 Price: $10.35

Item: SPACER

QTY:

Ref: 5 Part #: 70050-94093 Price: $116.02

Item: UPRIGHT, LH

QTY:

Ref: 6 Part #: 70050-94091 Price: $18.38

Item: BRACKET

QTY:

Ref: 7 Part #: 70050-02570 Price: $65.71

Item: BRACKET, REAR MOUNT ***

QTY:

Ref: 8 Part #: 01173-51225 Price: $1.31

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 9 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 10 Part #: 01173-51260 Price: $2.33

Item: BOLT M12x1.25x60 mm ***

QTY:

Ref: 11 Part #: 01073-51230 Price: $1.44

Item: BOLT M12x1.25x30 mm ***

QTY:

Ref: 12 Part #: 75599-31013 Price: $0.99

Item: NUT,3/8-16UNC FIN HEX G5 PTD *** ***

QTY:

Ref: 13 Part #: 75599-33013 Price: $0.99

Item: WASHER LOCK 3/8" PTD Std Coil Spg -B *

QTY:

Ref: 14 Part #: 75599-01325 Price: $1.18

Item: BOLT,3/8-16x1 1/4 HEX G5 PTD

QTY:

Ref: 15 Part #: 75599-31017 Price: $0.99

Item: NUT,HEX 5/8-11 NC FIN G5 PTD

QTY:

Ref: 16 Part #: 75599-33017 Price: $0.99

Item: WASHER,5/8 SPRING LOCK *

QTY:

Ref: 17 Part #: 75599-01702 Price: $10.12

Item: BOLT HEX GR 5 PLTD 5/8-11 x 6

QTY:

Ref: 18 Part #: 01173-51040 Price: $1.44

Item: BOLT M10x1.25x40 mm ***

QTY:

Ref: 18 Part #: 01173-51030 Price: $1.17

Item: BOLT M10x1.25x30 mm ***

QTY:

Ref: 19 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 20 Part #: 75599-01745 Price: $4.11

Item: BOLT, HEX 5/8-11x2 1/4 G5 PTD

QTY:

Ref: 21 Part #: 01053-51260 Price: $2.47

Item: BOLT, HEX M12 ***

QTY:

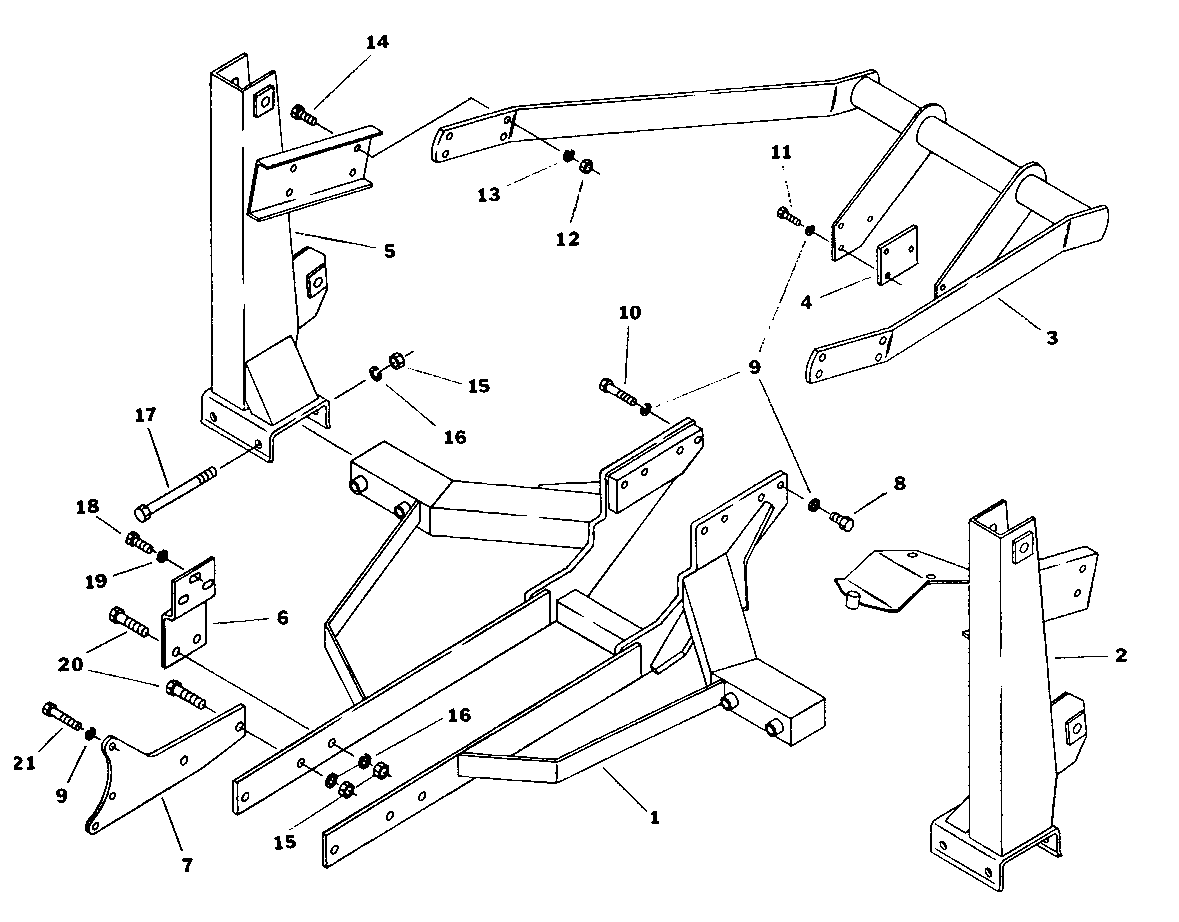

KUBOTA B1630C PARTS 001000 SUB-FRAME COMPONENTS
