Ref	Part #	Item	Price
010	67511-36300	COVER, HYD. CYL.ASSY	$2,409.41
020	67111-36320	BUSH	$29.19
030	67111-36330	BUSHING	$19.19
040	67211-51120	PLUG M10	$0.99
050	H6780-36350	PIPE, BREATHER	$18.98
050	H6780-36350	PIPE, BREATHER	$18.98
060	02114-50080	NUT, HEX M8-1.25 4T ***	$0.99
080	67111-36752	ARM ***	$445.56
090	04612-00380	CIR-CLIP, EXTERNAL	$1.32
100	34150-37340	PIN, SET ***	$104.78
110	01153-51018	BOLT	$0.99
110	01123-51018	BOLT	$0.99
120	04512-70100	WASHER,SPRING	$0.99
130	67800-36810	SHAFT, LIFT ARM ***	$248.20
140	09230-35525	SEAL, OIL	$7.22
150	67800-36830	ARM, LH LIFT ***	$419.32
160	67800-36840	ARM, RH LIFT	$356.64
170	04612-00350	CIR-CLIP, EXTERNAL	$1.32

Ref: 010 Part #: 67511-36300 Price: $2,409.41

Item: COVER, HYD. CYL.ASSY

QTY:

Ref: 020 Part #: 67111-36320 Price: $29.19

Item: BUSH

QTY:

Ref: 030 Part #: 67111-36330 Price: $19.19

Item: BUSHING

QTY:

Ref: 040 Part #: 67211-51120 Price: $0.99

Item: PLUG M10

QTY:

Ref: 050 Part #: H6780-36350 Price: $18.98

Item: PIPE, BREATHER

QTY:

Ref: 050 Part #: H6780-36350 Price: $18.98

Item: PIPE, BREATHER

QTY:

Ref: 060 Part #: 02114-50080 Price: $0.99

Item: NUT, HEX M8-1.25 4T ***

QTY:

Ref: 080 Part #: 67111-36752 Price: $445.56

Item: ARM ***

QTY:

Ref: 090 Part #: 04612-00380 Price: $1.32

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 100 Part #: 34150-37340 Price: $104.78

Item: PIN, SET ***

QTY:

Ref: 110 Part #: 01153-51018 Price: $0.99

Item: BOLT

QTY:

Ref: 110 Part #: 01123-51018 Price: $0.99

Item: BOLT

QTY:

Ref: 120 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 130 Part #: 67800-36810 Price: $248.20

Item: SHAFT, LIFT ARM ***

QTY:

Ref: 140 Part #: 09230-35525 Price: $7.22

Item: SEAL, OIL

QTY:

Ref: 150 Part #: 67800-36830 Price: $419.32

Item: ARM, LH LIFT ***

QTY:

Ref: 160 Part #: 67800-36840 Price: $356.64

Item: ARM, RH LIFT

QTY:

Ref: 170 Part #: 04612-00350 Price: $1.32

Item: CIR-CLIP, EXTERNAL

QTY:

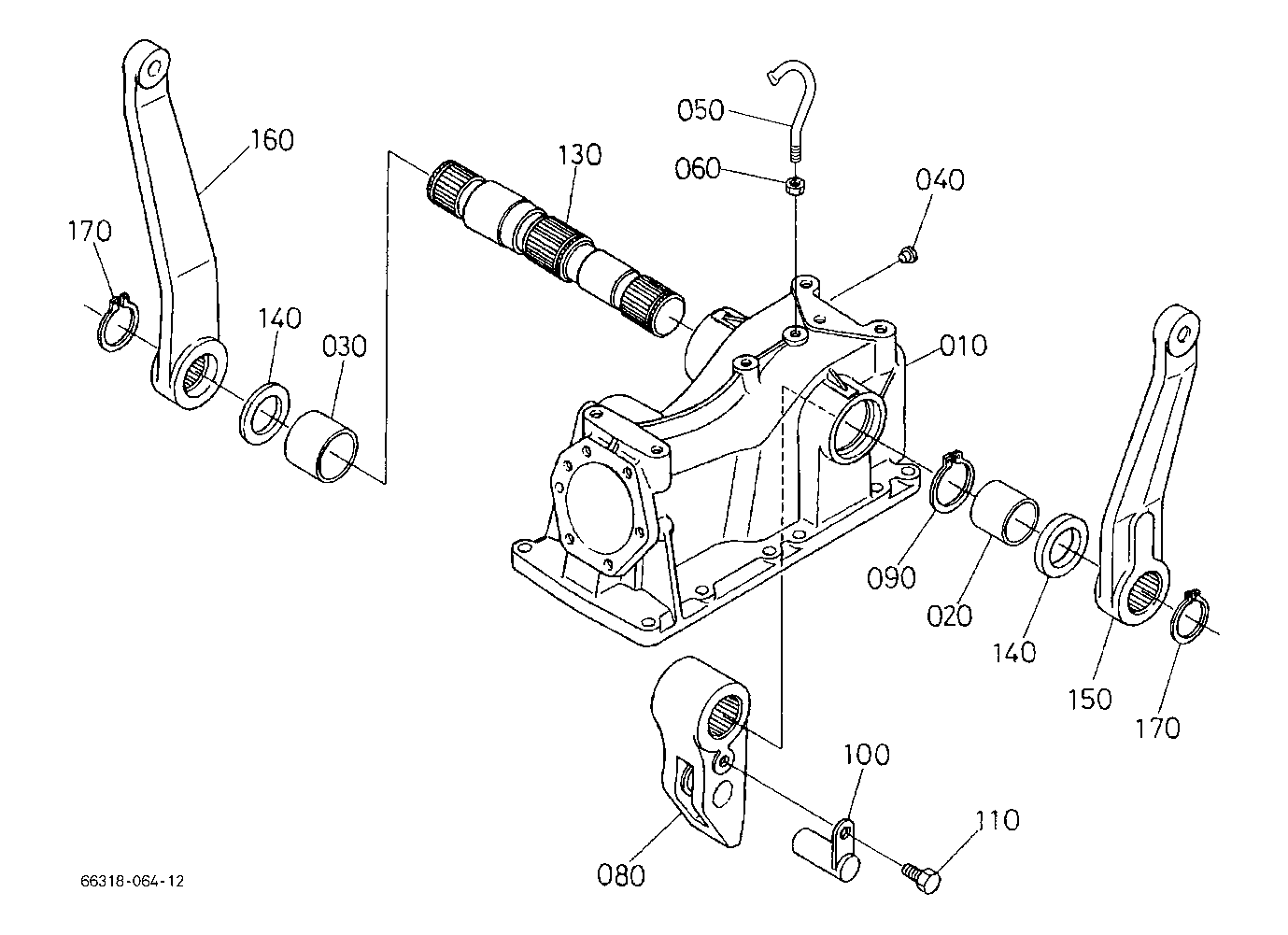

KUBOTA B2150D PARTS HYDRAULIC SYSTEM T11000 LIFT ARM
