KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
1	70050-03296	DECK, MOWER ***NLA	$828.08
2	70050-03304	BLADE, ATTACH ***	$131.07
3	70050-03298	HEIGHT ADJ,TAIL WHL ***	$116.27
4	70050-03299	MOUNT, TAIL WHEEL ***	$79.57
5	70050-03318	3-POINT HITCH ASSY ***	$176.76
6	70050-03456	GEARBOX ***	$641.23
7	70050-03330	WHEEL 12" ***	$123.18
7	70050-03449	WHEEL 16" ***	$148.94
8	70050-03300	42" BLADE PKG***	$66.76
9	70050-03328	PIN, ASSY HITCH ***	$8.41
10	70050-03320	BOLT ASSY ***NLA	$32.77
11	70050-03314	CABLE ASSY 42" ***NLA	$59.36
12	70050-03293	BAR, COVER ***	$7.97
13	70050-03305	BUSHING, PLAIN ***	$5.39
14	70050-03448	BUSHING ***	$4.24
15	70050-03359	BUSHING ***	$6.15
15	70050-03457	BUSHING ***	$5.67
16	70050-03325	BOLT, HEX 5/8"-18 ***NLA	$0.99
17, 18, 20, 23, 29, 30, 31, 32	70000-74028	O/L OBTAIN LOCALLY ***	$0.99
21	70050-03326	WASHER, FLAT ***NLA	$2.53
22	70050-03347	WASHER, POLY ***NLA	$2.53
24	70050-03324	LOCKNUT, STOVER ***	$3.10
25	70050-03084	LOCKNUT ***	$2.35
26, 33	70050-03222	LOCKNUT ***	$2.47
27	70050-03346	NUT, CASTLE ***NLA	$11.99
28	70050-03291	PIN, SPRING ***	$2.46
33	70050-03472	LOCKNUT ***	$8.43

Ref: 1 Part #: 70050-03296 Price: $828.08

Item: DECK, MOWER ***NLA

QTY:

Ref: 2 Part #: 70050-03304 Price: $131.07

Item: BLADE, ATTACH ***

QTY:

Ref: 3 Part #: 70050-03298 Price: $116.27

Item: HEIGHT ADJ,TAIL WHL ***

QTY:

Ref: 4 Part #: 70050-03299 Price: $79.57

Item: MOUNT, TAIL WHEEL ***

QTY:

Ref: 5 Part #: 70050-03318 Price: $176.76

Item: 3-POINT HITCH ASSY ***

QTY:

Ref: 6 Part #: 70050-03456 Price: $641.23

Item: GEARBOX ***

QTY:

Ref: 7 Part #: 70050-03330 Price: $123.18

Item: WHEEL 12" ***

QTY:

Ref: 7 Part #: 70050-03449 Price: $148.94

Item: WHEEL 16" ***

QTY:

Ref: 8 Part #: 70050-03300 Price: $66.76

Item: 42" BLADE PKG***

QTY:

Ref: 9 Part #: 70050-03328 Price: $8.41

Item: PIN, ASSY HITCH ***

QTY:

Ref: 10 Part #: 70050-03320 Price: $32.77

Item: BOLT ASSY ***NLA

QTY:

Ref: 11 Part #: 70050-03314 Price: $59.36

Item: CABLE ASSY 42" ***NLA

QTY:

Ref: 12 Part #: 70050-03293 Price: $7.97

Item: BAR, COVER ***

QTY:

Ref: 13 Part #: 70050-03305 Price: $5.39

Item: BUSHING, PLAIN ***

QTY:

Ref: 14 Part #: 70050-03448 Price: $4.24

Item: BUSHING ***

QTY:

Ref: 15 Part #: 70050-03359 Price: $6.15

Item: BUSHING ***

QTY:

Ref: 15 Part #: 70050-03457 Price: $5.67

Item: BUSHING ***

QTY:

Ref: 16 Part #: 70050-03325 Price: $0.99

Item: BOLT, HEX 5/8"-18 ***NLA

QTY:

Ref: 1718202329303132 Part #: 70000-74028 Price: $0.99

Item: O/L OBTAIN LOCALLY ***

QTY:

Ref: 21 Part #: 70050-03326 Price: $2.53

Item: WASHER, FLAT ***NLA

QTY:

Ref: 22 Part #: 70050-03347 Price: $2.53

Item: WASHER, POLY ***NLA

QTY:

Ref: 24 Part #: 70050-03324 Price: $3.10

Item: LOCKNUT, STOVER ***

QTY:

Ref: 25 Part #: 70050-03084 Price: $2.35

Item: LOCKNUT ***

QTY:

Ref: 2633 Part #: 70050-03222 Price: $2.47

Item: LOCKNUT ***

QTY:

Ref: 27 Part #: 70050-03346 Price: $11.99

Item: NUT, CASTLE ***NLA

QTY:

Ref: 28 Part #: 70050-03291 Price: $2.46

Item: PIN, SPRING ***

QTY:

Ref: 33 Part #: 70050-03472 Price: $8.43

Item: LOCKNUT ***

QTY:

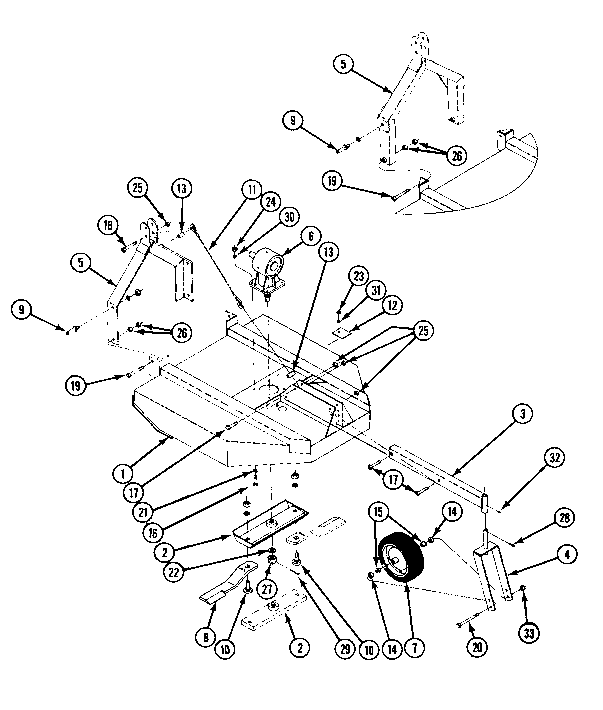

KUBOTA B342A PARTS 003000 DECK BLADE COMPONENTS
