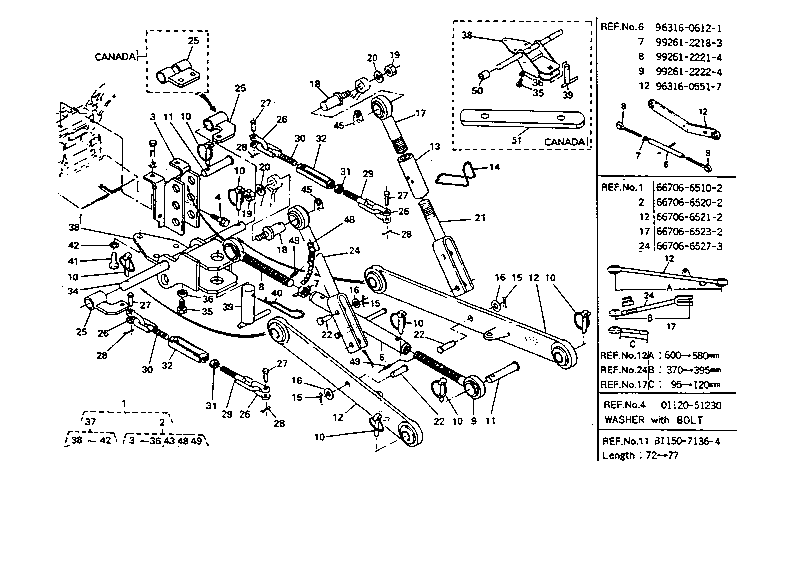

    KUBOTA B7100D P PARTS HYDRAULIC SYSTEM T06300 3-POINT LINKAGE GROUP

    KUBOTA >kubota-b7100d-p-parts-hydraulic-system-t06300-3-point-linkage-group
    Ref: 001  Part #: 96316-06013  Price: $676.30

    Item: 3PT LINK ASSY***

    QTY:
    Ref: 001  Part #: 96316-06013  Price: $676.30

    Item: 3PT LINK ASSY***

    QTY:
    Ref: 001  Part #: 96316-06013  Price: $676.30

    Item: 3PT LINK ASSY***

    QTY:
    Ref: 001  Part #: 66706-65102  Price: $3,026.47

    Item: LINK, 3PT ASSY

    QTY:
    Ref: 001  Part #: 66204-65100  Price: $1,201.92

    Item: ASSY, HITCH ***

    QTY:
    Ref: 002  Part #: 96316-00810  Price: $1,200.93

    Item: 3-PT LINK ASSY

    QTY:
    Ref: 002  Part #: 96316-00712  Price: $845.71

    Item: ASSY LINK 3-PT

    QTY:
    Ref: 002  Part #: 96316-00810  Price: $1,200.93

    Item: 3-PT LINK ASSY

    QTY:
    Ref: 002  Part #: 66706-65202  Price: $1,639.76

    Item: LINK ASSY

    QTY:
    Ref: 002  Part #: 66204-65200  Price: $797.46

    Item: ROD ASSY **

    QTY:
    Ref: 003  Part #: 96316-06110  Price: $298.75

    Item: BRACKET (3 HOLE)

    QTY:
    Ref: 004  Part #: 01153-51230  Price: $1.32

    Item: BOLT

    QTY:
    Ref: 004  Part #: 01123-51230  Price: $1.37

    Item: BOLT M12x1.75x30 mm ***

    QTY:
    Ref: 005020042  Part #: 04512-50120  Price: $1.70

    Item: WASHER, SPRING LOCK ***

    QTY:
    Ref: 006  Part #: 96316-06120  Price: $181.50

    Item: UPPER LINK ***

    QTY:
    Ref: 006  Part #: 66706-65332  Price: $111.49

    Item: LINK, TOP

    QTY:
    Ref: 007  Part #: 99261-22180  Price: $23.32

    Item: NUT, TOP LINK

    QTY:
    Ref: 007  Part #: 66706-65340  Price: $26.46

    Item: NUT

    QTY:
    Ref: 008  Part #: 99261-22210  Price: $91.70

    Item: JOINT,TOP LINK RH

    QTY:
    Ref: 008  Part #: 66706-65352  Price: $110.91

    Item: JOINT, LH

    QTY:
    Ref: 009  Part #: 99261-22220  Price: $119.84

    Item: JOINT,LH TOP LINK

    QTY:
    Ref: 009  Part #: 66706-65362  Price: $85.20

    Item: JOINT, RH ***

    QTY:
    Ref: 010  Part #: 34150-37640  Price: $5.72

    Item: PIN, SET

    QTY:
    Ref: 011  Part #: 31150-71360  Price: $12.54

    Item: PIN, JOINT

    QTY:
    Ref: 011  Part #: 31150-71360  Price: $12.54

    Item: PIN, JOINT

    QTY:
    Ref: 012  Part #: 96316-0551O  Price: Call for price

    Item: LINK LOWER S/N <=45295

    QTY:
    Ref: 012  Part #: 67401-65213  Price: $333.65

    Item: COMP. LINK LOWER ***

    QTY:
    Ref: 013  Part #: 66706-65253  Price: $69.16

    Item: ROD,LIFT MIDDLE

    QTY:
    Ref: 014  Part #: 66706-65260  Price: $41.77

    Item: SPRING

    QTY:
    Ref: 015  Part #: 05511-50325  Price: $0.99

    Item: PIN, SPLIT ***

    QTY:
    Ref: 015  Part #: 05511-50425  Price: $0.99

    Item: PIN, SPLIT ***

    QTY:
    Ref: 016  Part #: 04013-50120  Price: $0.99

    Item: WASHER, PLAIN M12 ***

    QTY:
    Ref: 017  Part #: 96316-05140  Price: $63.07

    Item: ROD LIFT RH ***

    QTY:
    Ref: 017  Part #: 66706-65232  Price: $147.97

    Item: ROD, LIFT RH

    QTY:
    Ref: 018043  Part #: 66706-65280  Price: $54.42

    Item: PIn, lift

    QTY:
    Ref: 019  Part #: 02174-50120  Price: $0.99

    Item: NUT, HEX ***

    QTY:
    Ref: 021  Part #: 96316-06130  Price: $64.33

    Item: ROD ***

    QTY:
    Ref: 021  Part #: 66706-65240  Price: $88.85

    Item: ROD

    QTY:
    Ref: 022  Part #: 05122-51240  Price: $3.20

    Item: PIN, JOINT ***

    QTY:
    Ref: 023  Part #: 05122-51235  Price: $3.20

    Item: PIN, JOINT ***

    QTY:
    Ref: 024  Part #: 96316-06140  Price: $232.54

    Item: ROD LH

    QTY:
    Ref: 024  Part #: 96316-06140  Price: $232.54

    Item: ROD LH

    QTY:
    Ref: 024  Part #: 66706-65272  Price: $261.31

    Item: COMP ROD, LIFT LH ***

    QTY:
    Ref: 024  Part #: 66706-65272  Price: $261.31

    Item: COMP ROD, LIFT LH ***

    QTY:
    Ref: 025  Part #: 96316-05540  Price: $101.46

    Item: BRACKET

    QTY:
    Ref: 025  Part #: 67401-65290  Price: $195.96

    Item: BRACKET

    QTY:
    Ref: 025  Part #: H6670-65290  Price: $57.42

    Item: BRACKET

    QTY:
    Ref: 025  Part #: H6670-65290  Price: $57.42

    Item: BRACKET

    QTY:
    Ref: 026  Part #: 31150-71860  Price: $109.95

    Item: JOINT, CHAIN ***

    QTY:
    Ref: 026  Part #: 66706-65370  Price: $29.51

    Item: JOINT, CHAIN

    QTY:
    Ref: 027  Part #: 96316-05570  Price: $7.92

    Item: PIN

    QTY:
    Ref: 027  Part #: 66706-65380  Price: $5.41

    Item: PIN, SET

    QTY:
    Ref: 028  Part #: 05511-50318  Price: $0.99

    Item: PIN, SPLIT ***

    QTY:
    Ref: 029  Part #: 96316-05230  Price: $43.34

    Item: BOLT,TURN BACKLE RH ***

    QTY:
    Ref: 029  Part #: 66706-65310  Price: $33.76

    Item: TURNBUCKLE RH

    QTY:
    Ref: 030  Part #: 96316-05240  Price: $49.12

    Item: TURNBUCKLE LH ***

    QTY:
    Ref: 030  Part #: 66706-65320  Price: $27.81

    Item: TURNBUCKLE LH

    QTY:
    Ref: 031  Part #: 02112-50120  Price: $0.99

    Item: NUT, LOCK

    QTY:
    Ref: 032  Part #: 96316-05580  Price: $37.25

    Item: TURNBUCKLE

    QTY:
    Ref: 033  Part #: 96316-05220  Price: $16.42

    Item: NUT

    QTY:
    Ref: 034  Part #: 66704-86110  Price: $112.78

    Item: PIN

    QTY:
    Ref: 034  Part #: 66704-86110  Price: $112.78

    Item: PIN

    QTY:
    Ref: 034  Part #: 66704-86110  Price: $112.78

    Item: PIN

    QTY:
    Ref: 035  Part #: 01153-50822  Price: $1.04

    Item: BOLT M8x1.25x22 mm ***

    QTY:
    Ref: 035  Part #: 66704-65120  Price: $45.20

    Item: BOLT ***

    QTY:
    Ref: 035  Part #: 66204-65120  Price: $25.79

    Item: BOLT

    QTY:
    Ref: 036  Part #: 04512-50080  Price: $0.99

    Item: WASHER, SPRING ***

    QTY:
    Ref: 036  Part #: 02118-50100  Price: $0.99

    Item: NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

    QTY:
    Ref: 036  Part #: 02174-50140  Price: $1.00

    Item: NUT, HEX M14-1.5 ***

    QTY:
    Ref: 037  Part #: 96316-06302  Price: $596.35

    Item: HITCH ASSEMBLY ***

    QTY:
    Ref: 037  Part #: 96316-06302  Price: $596.35

    Item: HITCH ASSEMBLY ***

    QTY:
    Ref: 037  Part #: 66204-65502  Price: $433.51

    Item: HITCH ASSY

    QTY:
    Ref: 038  Part #: 96316-06312  Price: $394.53

    Item: HITCH

    QTY:
    Ref: 038  Part #: 96316-06312  Price: $394.53

    Item: HITCH

    QTY:
    Ref: 038  Part #: 66204-65606  Price: $372.44

    Item: COMP.HITCH ***

    QTY:
    Ref: 039  Part #: 96316-06320  Price: $24.42

    Item: PIN

    QTY:
    Ref: 039  Part #: 67800-29320  Price: $18.28

    Item: PIN, HITCH

    QTY:
    Ref: 040  Part #: 31150-29730  Price: $4.13

    Item: PIN, SNAP

    QTY:
    Ref: 041  Part #: 01153-51235  Price: $1.95

    Item: BOLT M12x1.75x35 mm

    QTY:
    Ref: 043048  Part #: 66616-34550  Price: $44.46

    Item: CHAIN

    QTY:
    Ref: 044  Part #: 96316-05130  Price: $122.78

    Item: SUPPORT ***

    QTY:
    Ref: 045  Part #: 05515-51200  Price: $1.28

    Item: PIN,SNAP

    QTY:
    Ref: 045  Part #: 66592-34410  Price: $1.28

    Item: PIN

    QTY:
    Ref: 045  Part #: 66713-34340  Price: $5.41

    Item: PIN

    QTY:
    Ref: 046  Part #: 96316-05150  Price: $29.60

    Item: HANDLE ***

    QTY:
    Ref: 047  Part #: 05411-00628  Price: $1.00

    Item: PIN, SPRING

    QTY:
    Ref: 049  Part #: 05411-00422  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 050  Part #: 66204-65350  Price: $12.21

    Item: SPACER

    QTY:
    Ref: 051  Part #: 66204-86510  Price: $103.13

    Item: SWINGING DRAWBAR

    QTY:
