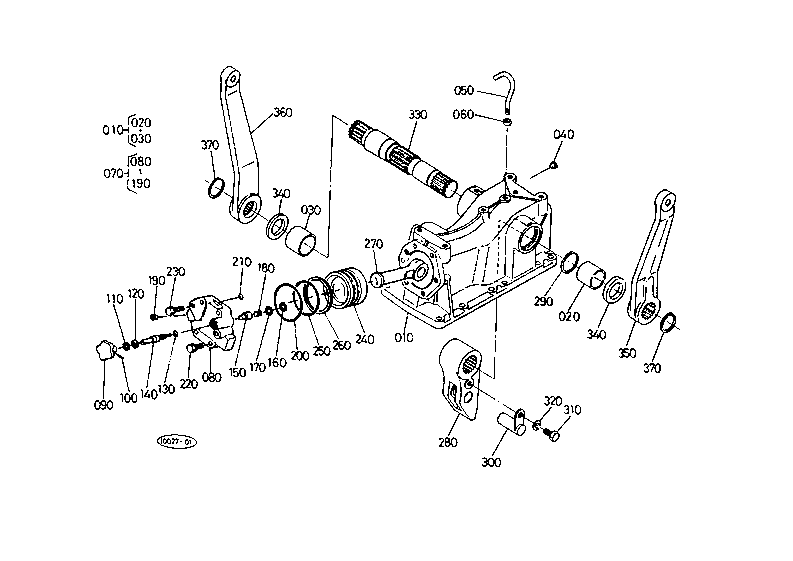

KUBOTA B9200DC DP PARTS HYDRAULIC SYSTEM T28000 CASE COVER AND LIFT ARM

    KUBOTA >kubota-b9200dc-dp-parts-hydraulic-system-t28000-case-cover-and-lift-arm
    Ref: 010  Part #: 67511-36300  Price: $2,409.41

    Item: COVER, HYD. CYL.ASSY

    QTY:
    Ref: 020  Part #: 67111-36320  Price: $29.19

    Item: BUSH

    QTY:
    Ref: 030  Part #: 67111-36330  Price: $19.19

    Item: BUSHING

    QTY:
    Ref: 040  Part #: 67211-51120  Price: $0.99

    Item: PLUG M10

    QTY:
    Ref: 050  Part #: H6780-36350  Price: $18.98

    Item: PIPE, BREATHER

    QTY:
    Ref: 050  Part #: H6780-36350  Price: $18.98

    Item: PIPE, BREATHER

    QTY:
    Ref: 060  Part #: 02114-50080  Price: $0.99

    Item: NUT, HEX M8-1.25 4T ***

    QTY:
    Ref: 070  Part #: 67800-36600  Price: $241.49

    Item: CYLINDER CAP ASSY ***

    QTY:
    Ref: 080  Part #: 67800-36620  Price: $264.36

    Item: CAP, CYLINDER

    QTY:
    Ref: 090  Part #: 34150-37230  Price: $8.30

    Item: GRIP, LEVER *

    QTY:
    Ref: 100  Part #: 05411-00418  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 110  Part #: 34150-37260  Price: $43.49

    Item: CIR-CLIP, INTERNAL

    QTY:
    Ref: 120  Part #: 04012-50080  Price: $0.99

    Item: WASHER, PLAIN ***

    QTY:
    Ref: 130  Part #: 04816-00100  Price: $0.99

    Item: O-RING, FILTER

    QTY:
    Ref: 140  Part #: 67800-37220  Price: $22.99

    Item: SHAFT, ADJ. O/P

    QTY:
    Ref: 150  Part #: 38240-37250  Price: $9.26

    Item: COLLAR, ADJUST

    QTY:
    Ref: 160  Part #: 04611-00160  Price: $0.99

    Item: CIR-CLIP, INTERNAL

    QTY:
    Ref: 170  Part #: 67511-36680  Price: $10.95

    Item: WASHER

    QTY:
    Ref: 180  Part #: 67511-36690  Price: $14.85

    Item: SPRING ***

    QTY:
    Ref: 190  Part #: 67511-36640  Price: $4.65

    Item: PLUG

    QTY:
    Ref: 200  Part #: 04811-50650  Price: $4.92

    Item: O-RING

    QTY:
    Ref: 210  Part #: 04811-00080  Price: $0.99

    Item: O-RING***

    QTY:
    Ref: 220  Part #: 01123-51030  Price: $1.22

    Item: BOLT M10x1.5x30 mm ***

    QTY:
    Ref: 230  Part #: 01123-51050  Price: $1.55

    Item: BOLT M10x1.5x50 mm ***

    QTY:
    Ref: 240  Part #: 67111-36712  Price: $396.18

    Item: PISTON, HYD.

    QTY:
    Ref: 250  Part #: 04811-00600  Price: $4.12

    Item: O RING

    QTY:
    Ref: 260  Part #: 67111-36720  Price: $15.23

    Item: RING, BACK-UP

    QTY:
    Ref: 270  Part #: 37150-37320  Price: $187.83

    Item: ROD, HYD. PISTON ***

    QTY:
    Ref: 280  Part #: 67111-36752  Price: $445.56

    Item: ARM ***

    QTY:
    Ref: 290  Part #: 04612-00380  Price: $1.32

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 300  Part #: 34150-37340  Price: $104.78

    Item: PIN, SET ***

    QTY:
    Ref: 310  Part #: 01153-51018  Price: $0.99

    Item: BOLT

    QTY:
    Ref: 320  Part #: 04512-50100  Price: $0.99

    Item: WASHER,M10 SPRING LOCK ***

    QTY:
    Ref: 330  Part #: 67800-36810  Price: $248.20

    Item: SHAFT, LIFT ARM ***

    QTY:
    Ref: 340  Part #: 09230-35525  Price: $7.22

    Item: SEAL, OIL

    QTY:
    Ref: 350  Part #: 67800-36830  Price: $419.32

    Item: ARM, LH LIFT ***

    QTY:
    Ref: 360  Part #: 67800-36840  Price: $356.64

    Item: ARM, RH LIFT

    QTY:
    Ref: 370  Part #: 04612-00350  Price: $1.32

    Item: CIR-CLIP, EXTERNAL

    QTY:
