Ref	Part #	Item	Price
010	7K504-90120	COMP BOOM (LABEL)	$1,691.28
020	75595-75170	LABEL 1, WARNING (ENGLISH) ***	$1.85
030	K2571-65120	LABEL, KUBOTA *	$12.94
030	6C430-47210	LABEL(KUBOTA) *	$2.27
040	78620-21450	RING, INNER	$11.63
040	7K503-31410	BUSHING, 3030 **	$4.98
050, 180	75596-23150	PIN (1.18*7.96)	$47.67
050	7K530-21510	PIN(29.9X202)	$25.06
060, 200	01173-51065	BOLT M10x1.25x65 mm ***	$2.21
070, 170, 210	02574-50100	NUT, M18 SELF-LOCKING	$3.20
080, 150, 190	75599-81521	FITTING, GREASE 1/4-28T.T68	$0.99
090	75595-14220	PIN 2, LOCK *	$26.76
100	7K504-22010	ASSY CYLINDER, BOOM *	$1,201.70
110	K6072-63660	ADAPTER (45) ***	$3.43
120	78620-22410	BUSHING	$6.30
130	75596-52063	ASSY TUBE, HYDRAULIC	$18.49
130	75596-52063	ASSY TUBE, HYDRAULIC	$18.49
135	75540-64940	CLAMP, HOSE	$3.12
140	75598-23112	PIN	$42.99
160	01173-51075	BOLT M10x1.25x75 mm	$2.47

Ref: 010 Part #: 7K504-90120 Price: $1,691.28

Item: COMP BOOM (LABEL)

QTY:

Ref: 020 Part #: 75595-75170 Price: $1.85

Item: LABEL 1, WARNING (ENGLISH) ***

QTY:

Ref: 030 Part #: K2571-65120 Price: $12.94

Item: LABEL, KUBOTA *

QTY:

Ref: 030 Part #: 6C430-47210 Price: $2.27

Item: LABEL(KUBOTA) *

QTY:

Ref: 040 Part #: 78620-21450 Price: $11.63

Item: RING, INNER

QTY:

Ref: 040 Part #: 7K503-31410 Price: $4.98

Item: BUSHING, 30*30 ***

QTY:

Ref: 050180 Part #: 75596-23150 Price: $47.67

Item: PIN (1.18*7.96)

QTY:

Ref: 050 Part #: 7K530-21510 Price: $25.06

Item: PIN(29.9X202)

QTY:

Ref: 060200 Part #: 01173-51065 Price: $2.21

Item: BOLT M10x1.25x65 mm ***

QTY:

Ref: 070170210 Part #: 02574-50100 Price: $3.20

Item: NUT, M18 SELF-LOCKING

QTY:

Ref: 080150190 Part #: 75599-81521 Price: $0.99

Item: FITTING, GREASE 1/4-28T.T*68 *

QTY:

Ref: 090 Part #: 75595-14220 Price: $26.76

Item: PIN 2, LOCK *

QTY:

Ref: 100 Part #: 7K504-22010 Price: $1,201.70

Item: ASSY CYLINDER, BOOM *

QTY:

Ref: 110 Part #: K6072-63660 Price: $3.43

Item: ADAPTER (45) ***

QTY:

Ref: 120 Part #: 78620-22410 Price: $6.30

Item: BUSHING

QTY:

Ref: 130 Part #: 75596-52063 Price: $18.49

Item: ASSY TUBE, HYDRAULIC

QTY:

Ref: 130 Part #: 75596-52063 Price: $18.49

Item: ASSY TUBE, HYDRAULIC

QTY:

Ref: 135 Part #: 75540-64940 Price: $3.12

Item: CLAMP, HOSE

QTY:

Ref: 140 Part #: 75598-23112 Price: $42.99

Item: PIN

QTY:

Ref: 160 Part #: 01173-51075 Price: $2.47

Item: BOLT M10x1.25x75 mm

QTY:

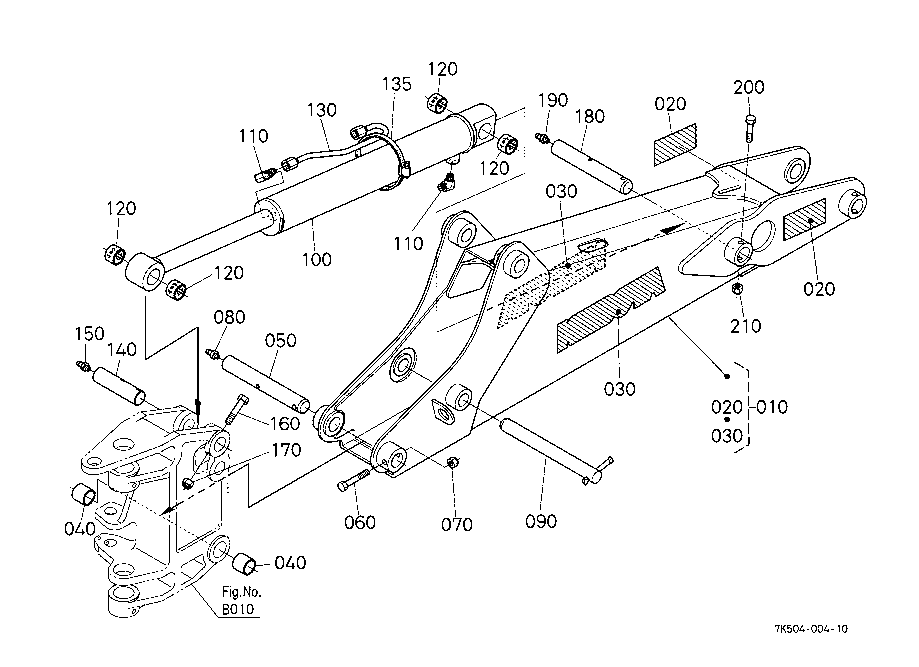

KUBOTA BH65 PARTS FRONT ATTACHMENTS B10000 BOOM
