Ref	Part #	Item	Price
010	7K505-41110	LINK, GUIDE 1 * ***	$125.26
020	7K505-41150	LINK, GUIDE 2 * ***	$141.85
030	7K505-41210	LINK, BUCKET * ***	$242.71
040, 230	7K500-33130	BUSHING (3251) **	$14.90
050	7K500-41220	BUSHING (32*32)	$12.97
060	75595-42610	PIN (1.257.70)	$50.68
070	01173-51075	BOLT M10x1.25x75 mm	$2.47
080, 120, 160, 260	02574-50100	NUT, M18 SELF-LOCKING	$3.20
090, 130, 170, 270	75599-81531	FITTING,GREASE 1/8-27 NPTF ***	$0.99
100	75595-42623	PIN (1.25X8.82)	$53.40
100	75595-42623	PIN (1.25X8.82)	$53.40
110	01173-51080	BOLT M10x1.25x80 mm ***	$2.59
140	75597-42620	PIN (1.509.04)	$61.00
150	01173-51090	BOLT M10x1.25x90 mm ***	$2.86
180	75597-42630	COLLAR,BUCKET	$5.52
190	7K505-43010	ASSY CYLINDER, BUCKET * ***	$1,121.90
200	75540-64910	ELBOW 1#190-8-6 ***	$5.21
210	7K505-43060	ASSY TUBE, HYDRAULIC	$18.54
220	7K500-33120	BUSHING,32x64	$16.83
240	75595-33160	PIN, HS (1.256.16)	$57.84
250	01173-51070	BOLT M10x1.25x70 mm	$2.33
280	75590-44212	CLAMP 1, SMV MARK ***	$3.69
290	7K500-44222	CLAMP 2, SMV MARK	$7.40
300	01133-51020	BOLT M10x1.25x20 mm ***	$1.44
310	7L500-89930	SOCKET, MTG SMV ***	$6.38
320	7L500-89810	BOLT, SQ NECK 5/16x16 *	$0.99
330	75599-31012	NUT, HEX 5/16-18 UNC SAE PTD ***	$0.99
340	75540-64940	CLAMP, HOSE	$3.12

Ref: 010 Part #: 7K505-41110 Price: $125.26

Item: LINK, GUIDE 1 * ***

QTY:

Ref: 020 Part #: 7K505-41150 Price: $141.85

Item: LINK, GUIDE 2 * ***

QTY:

Ref: 030 Part #: 7K505-41210 Price: $242.71

Item: LINK, BUCKET * ***

QTY:

Ref: 040230 Part #: 7K500-33130 Price: $14.90

Item: BUSHING (32*51) ***

QTY:

Ref: 050 Part #: 7K500-41220 Price: $12.97

Item: BUSHING (32*32)

QTY:

Ref: 060 Part #: 75595-42610 Price: $50.68

Item: PIN (1.25*7.70) *

QTY:

Ref: 070 Part #: 01173-51075 Price: $2.47

Item: BOLT M10x1.25x75 mm

QTY:

Ref: 080120160260 Part #: 02574-50100 Price: $3.20

Item: NUT, M18 SELF-LOCKING

QTY:

Ref: 090130170270 Part #: 75599-81531 Price: $0.99

Item: FITTING,GREASE 1/8-27 NPTF ***

QTY:

Ref: 100 Part #: 75595-42623 Price: $53.40

Item: PIN (1.25X8.82)

QTY:

Ref: 100 Part #: 75595-42623 Price: $53.40

Item: PIN (1.25X8.82)

QTY:

Ref: 110 Part #: 01173-51080 Price: $2.59

Item: BOLT M10x1.25x80 mm ***

QTY:

Ref: 140 Part #: 75597-42620 Price: $61.00

Item: PIN (1.50*9.04) *

QTY:

Ref: 150 Part #: 01173-51090 Price: $2.86

Item: BOLT M10x1.25x90 mm ***

QTY:

Ref: 180 Part #: 75597-42630 Price: $5.52

Item: COLLAR,BUCKET

QTY:

Ref: 190 Part #: 7K505-43010 Price: $1,121.90

Item: ASSY CYLINDER, BUCKET * ***

QTY:

Ref: 200 Part #: 75540-64910 Price: $5.21

Item: ELBOW 1#190-8-6 ***

QTY:

Ref: 210 Part #: 7K505-43060 Price: $18.54

Item: ASSY TUBE, HYDRAULIC

QTY:

Ref: 220 Part #: 7K500-33120 Price: $16.83

Item: BUSHING,32x64

QTY:

Ref: 240 Part #: 75595-33160 Price: $57.84

Item: PIN, HS (1.25*6.16) *

QTY:

Ref: 250 Part #: 01173-51070 Price: $2.33

Item: BOLT M10x1.25x70 mm

QTY:

Ref: 280 Part #: 75590-44212 Price: $3.69

Item: CLAMP 1, SMV MARK ***

QTY:

Ref: 290 Part #: 7K500-44222 Price: $7.40

Item: CLAMP 2, SMV MARK

QTY:

Ref: 300 Part #: 01133-51020 Price: $1.44

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 310 Part #: 7L500-89930 Price: $6.38

Item: SOCKET, MTG SMV ***

QTY:

Ref: 320 Part #: 7L500-89810 Price: $0.99

Item: BOLT, SQ NECK 5/16x16 *

QTY:

Ref: 330 Part #: 75599-31012 Price: $0.99

Item: NUT, HEX 5/16-18 UNC SAE PTD ***

QTY:

Ref: 340 Part #: 75540-64940 Price: $3.12

Item: CLAMP, HOSE

QTY:

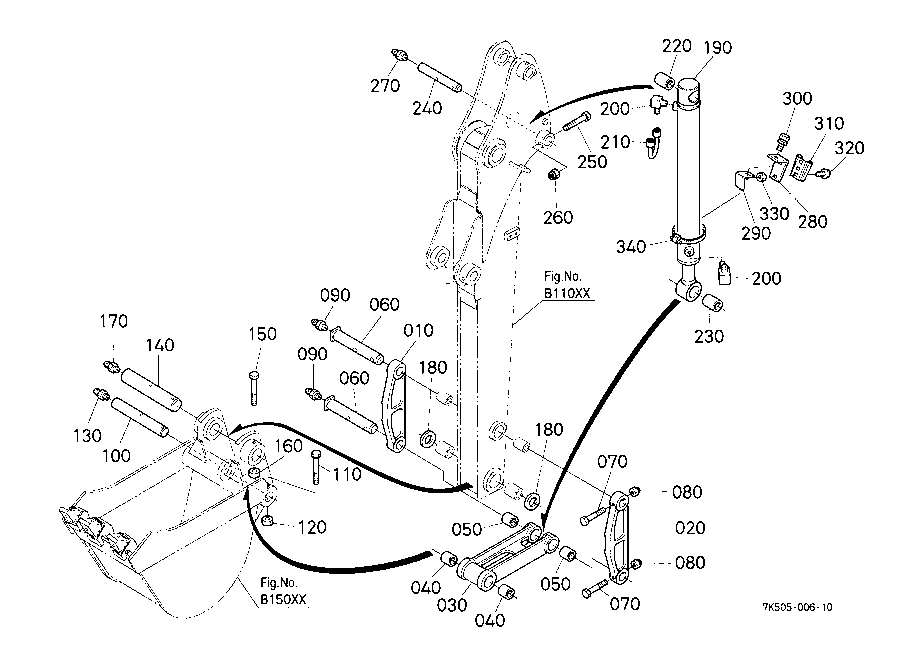

KUBOTA BH92 PARTS FRONT ATTACHMENTS B12000 BUCKET LINK
