Ref	Part #	Item	Price
010	K2511-12410	GEAR SHAFT, 10 FINAL	$123.43
020	32430-44260	BRG CYL ROLLER25/52	$80.99
030, 180	08101-06208	BEARING,BALL RADIAL 40/80 ***	$22.31
040	31353-43760	SHIM, 0.60MM	$1.07
040	31353-43770	SHIM, 0.80MM	$1.07
040	31353-43780	SHIM, 1.00MM	$1.42
040	31353-43790	SHIM, 1.20MM	$1.53
040	6A320-56880	SHIM	$4.65
040	31353-43860	SHIM 0.1	$3.34
050	K2561-12510	ASSY DIFFERENTIAL, REAR	$484.77
060	K2561-12490	CASE, DIFFERENTIAL	$188.70
070	K2561-12480	SHAFT, DIFFERENTIAL	$35.71
080	K2561-12470	KEY, FEATHER	$11.63
100	31351-26390	WASHER, DIFF PINION	$8.52
130	31331-26470	WASHER, DIFF. SIDE 1	$5.41
130	31331-26480	WASHER, DIFF. SIDE 2	$5.41
130	31331-26490	WASHER, DIFF. SIDE 3	$5.41
140	K2511-12550	GEAR, 66 FINAL	$362.95
150	37300-28170	PIN, STRAIGHT	$4.13
160	37800-43870	BOLT	$10.40
170	34150-26615	SHIFTER,DIFF LOCK	$104.55
190	08101-06210	BEARING BALL RADIAL50/90 * ***	$31.52
200	K2511-90100	ASSY GEAR, BEVEL	$557.80
210	K2561-90120	ASSY GEAR, BEVEL (REAR DIFF)	$606.73

Ref: 010 Part #: K2511-12410 Price: $123.43

Item: GEAR SHAFT, 10 FINAL

QTY:

Ref: 020 Part #: 32430-44260 Price: $80.99

Item: BRG CYL ROLLER25/52

QTY:

Ref: 030180 Part #: 08101-06208 Price: $22.31

Item: BEARING,BALL RADIAL 40/80 ***

QTY:

Ref: 040 Part #: 31353-43760 Price: $1.07

Item: SHIM, 0.60MM

QTY:

Ref: 040 Part #: 31353-43770 Price: $1.07

Item: SHIM, 0.80MM

QTY:

Ref: 040 Part #: 31353-43780 Price: $1.42

Item: SHIM, 1.00MM

QTY:

Ref: 040 Part #: 31353-43790 Price: $1.53

Item: SHIM, 1.20MM

QTY:

Ref: 040 Part #: 6A320-56880 Price: $4.65

Item: SHIM

QTY:

Ref: 040 Part #: 31353-43860 Price: $3.34

Item: SHIM 0.1

QTY:

Ref: 050 Part #: K2561-12510 Price: $484.77

Item: ASSY DIFFERENTIAL, REAR

QTY:

Ref: 060 Part #: K2561-12490 Price: $188.70

Item: CASE, DIFFERENTIAL

QTY:

Ref: 070 Part #: K2561-12480 Price: $35.71

Item: SHAFT, DIFFERENTIAL

QTY:

Ref: 080 Part #: K2561-12470 Price: $11.63

Item: KEY, FEATHER

QTY:

Ref: 100 Part #: 31351-26390 Price: $8.52

Item: WASHER, DIFF PINION

QTY:

Ref: 130 Part #: 31331-26470 Price: $5.41

Item: WASHER, DIFF. SIDE 1

QTY:

Ref: 130 Part #: 31331-26480 Price: $5.41

Item: WASHER, DIFF. SIDE 2

QTY:

Ref: 130 Part #: 31331-26490 Price: $5.41

Item: WASHER, DIFF. SIDE 3

QTY:

Ref: 140 Part #: K2511-12550 Price: $362.95

Item: GEAR, 66 FINAL

QTY:

Ref: 150 Part #: 37300-28170 Price: $4.13

Item: PIN, STRAIGHT

QTY:

Ref: 160 Part #: 37800-43870 Price: $10.40

Item: BOLT

QTY:

Ref: 170 Part #: 34150-26615 Price: $104.55

Item: SHIFTER,DIFF LOCK

QTY:

Ref: 190 Part #: 08101-06210 Price: $31.52

Item: BEARING BALL RADIAL50/90 * ***

QTY:

Ref: 200 Part #: K2511-90100 Price: $557.80

Item: ASSY GEAR, BEVEL

QTY:

Ref: 210 Part #: K2561-90120 Price: $606.73

Item: ASSY GEAR, BEVEL (REAR DIFF)

QTY:

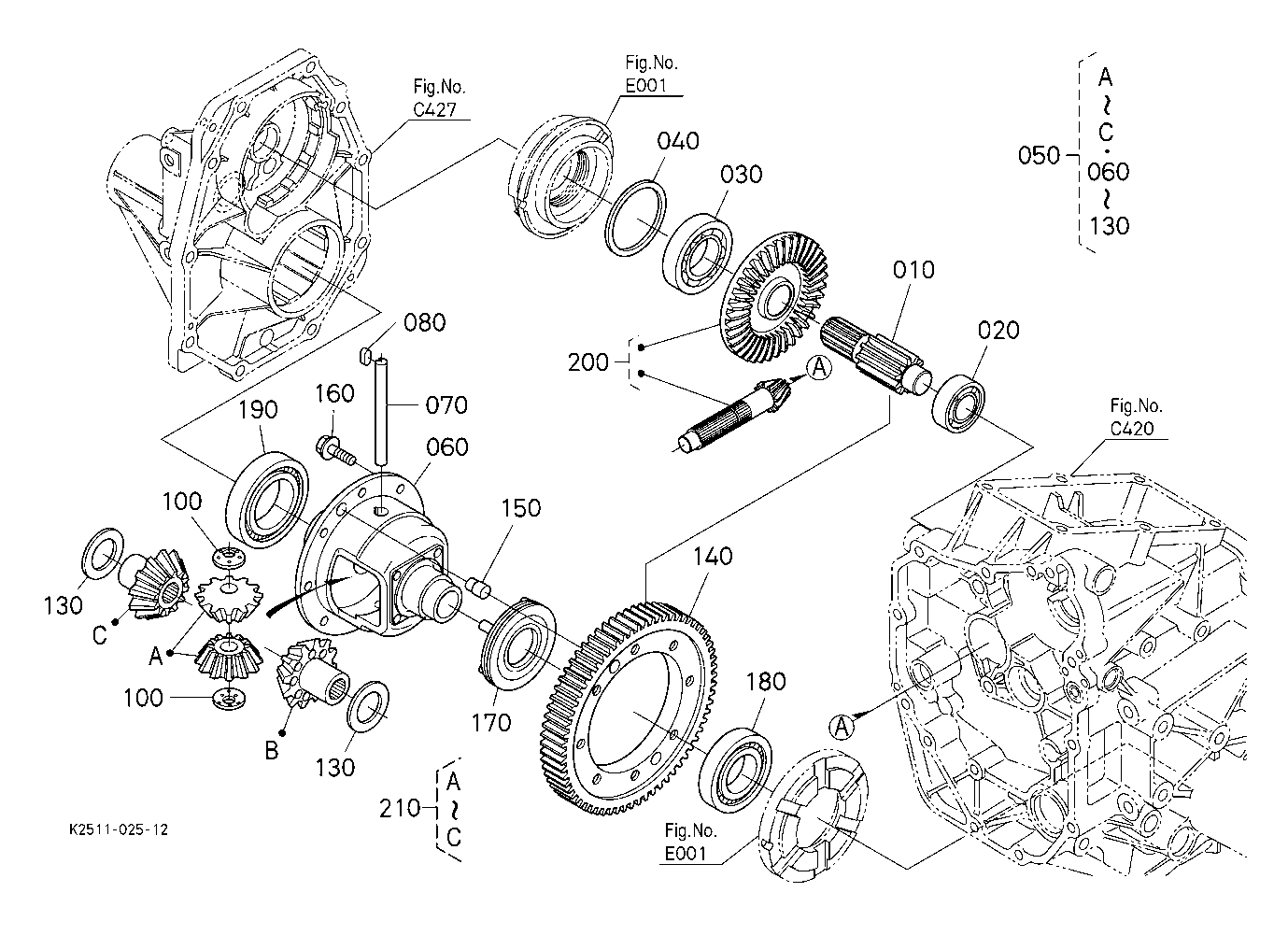

KUBOTA BX1500D PARTS TRANSMISSION D14000 REAR DIFFERENTIAL
