Ref	Part #	Item	Price
010	K2871-15420	CASE(FRONT GEAR,RH)	$350.34
020	66711-13320	BOLT, CLUTCH ADJUSTING	$2.37
030	02118-50100	NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***	$0.99
040	01774-51010	BOLT M10x1.25x10 mm ***	$1.95
050	04717-01000	WASHER, SEAL W/RUBBER	$1.49
060	6A320-56220	SEAL, OIL	$35.68
070	1G772-51760	BEARING	$76.93
080	04611-00680	CIR-CLIP, INTERNAL	$4.42
090	08101-06909	BEARING BALL (RADIAL) 45/68 ***	$36.64
100	04612-00450	CIR-CLIP, EXTERNAL 45mm	$1.49
110	K2561-16280	GEAR,BEVEL(15)	$60.99
120	08101-06204	BEARING,BALL RADIAL ***	$9.26
130	K2561-16310	GEARSHAFT BEVEL (9)	$121.97
140	08101-06304	BEARING, BALL	$12.11

Ref: 010 Part #: K2871-15420 Price: $350.34

Item: CASE(FRONT GEAR,RH)

QTY:

Ref: 020 Part #: 66711-13320 Price: $2.37

Item: BOLT, CLUTCH ADJUSTING

QTY:

Ref: 030 Part #: 02118-50100 Price: $0.99

Item: NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

QTY:

Ref: 040 Part #: 01774-51010 Price: $1.95

Item: BOLT M10x1.25x10 mm ***

QTY:

Ref: 050 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 060 Part #: 6A320-56220 Price: $35.68

Item: SEAL, OIL

QTY:

Ref: 070 Part #: 1G772-51760 Price: $76.93

Item: BEARING

QTY:

Ref: 080 Part #: 04611-00680 Price: $4.42

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 090 Part #: 08101-06909 Price: $36.64

Item: BEARING BALL (RADIAL) 45/68 ***

QTY:

Ref: 100 Part #: 04612-00450 Price: $1.49

Item: CIR-CLIP, EXTERNAL 45mm

QTY:

Ref: 110 Part #: K2561-16280 Price: $60.99

Item: GEAR,BEVEL(15)

QTY:

Ref: 120 Part #: 08101-06204 Price: $9.26

Item: BEARING,BALL RADIAL ***

QTY:

Ref: 130 Part #: K2561-16310 Price: $121.97

Item: GEARSHAFT BEVEL (9)

QTY:

Ref: 140 Part #: 08101-06304 Price: $12.11

Item: BEARING, BALL

QTY:

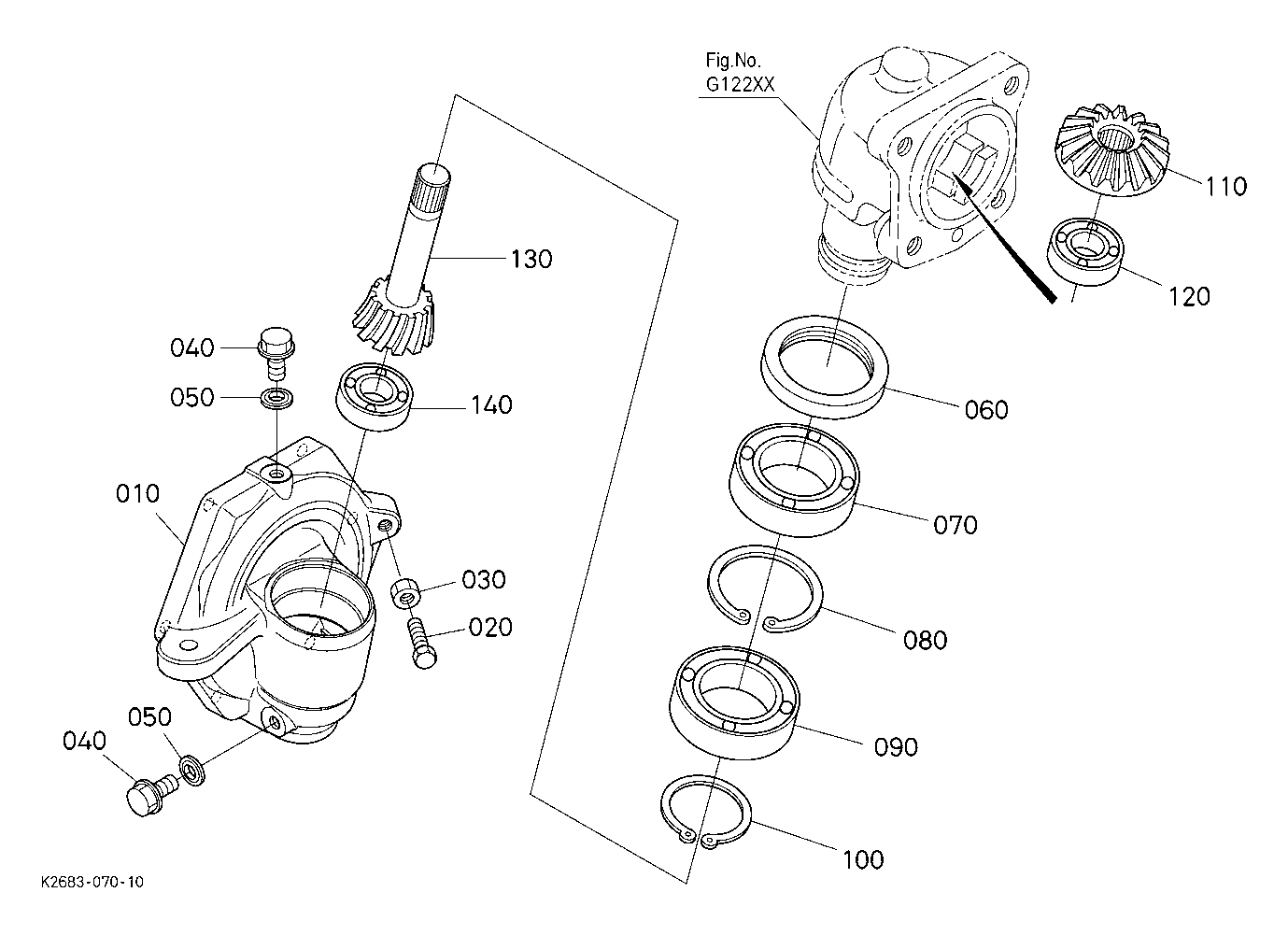

KUBOTA BX2670 PARTS FRONT AXLE G12702 FRONT AXLE CASE RH
