Ref	Part #	Item	Price
010	16394-72700	COMP FLANGE, WATER	$112.12
010	16394-72702	COMP FLANGE,WATER	$112.12
020	16241-73370	PIPE, WATER RETURN	$3.19
030	1A021-96020	PLUG	$5.08
035	5H601-41940	SENSOR, WATER TEMPERATURE	$72.65
036	04717-01200	WASHER, w/RUBBER ***	$1.49
040	16264-72920	GASKET, WATER FLANGE NA	$3.04
050, 140	01023-50616	BOLT M6x1.0x16 mm ***	$0.99
060	01023-50655	BOLT M6x1.0x55 mm ***	$1.49
070	16241-73350	PIPE, WATER RETURN	$6.90
080	1G687-73362	CLAMP,HOSE	$3.04
090	1E401-73012	THERMOSTAT,ASSY	$42.64
100	16219-73260	COVER, THERMOSTAT	$19.32
110	16221-73270	GASKET, THERMOSTAT NA ***	$3.94
120	01123-50835	BOLT M8x1.25x35 mm ***	$1.04
130	16241-64422	STAY, DYNAMO	$10.00
150	16281-72862	PIPE 2, WATER	$71.20
160	16241-72870	PIPE,WATER	$13.28
170	1G677-72960	CLAMP,HOSE	$5.13
180	06311-55010	PLUG ***	$2.04
190	04724-00100	GASKET, COPPER	$0.99

Ref: 010 Part #: 16394-72700 Price: $112.12

Item: COMP FLANGE, WATER

QTY:

Ref: 010 Part #: 16394-72702 Price: $112.12

Item: COMP FLANGE,WATER

QTY:

Ref: 020 Part #: 16241-73370 Price: $3.19

Item: PIPE, WATER RETURN

QTY:

Ref: 030 Part #: 1A021-96020 Price: $5.08

Item: PLUG

QTY:

Ref: 035 Part #: 5H601-41940 Price: $72.65

Item: SENSOR, WATER TEMPERATURE

QTY:

Ref: 036 Part #: 04717-01200 Price: $1.49

Item: WASHER, w/RUBBER ***

QTY:

Ref: 040 Part #: 16264-72920 Price: $3.04

Item: GASKET, WATER FLANGE NA

QTY:

Ref: 050140 Part #: 01023-50616 Price: $0.99

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 060 Part #: 01023-50655 Price: $1.49

Item: BOLT M6x1.0x55 mm ***

QTY:

Ref: 070 Part #: 16241-73350 Price: $6.90

Item: PIPE, WATER RETURN

QTY:

Ref: 080 Part #: 1G687-73362 Price: $3.04

Item: CLAMP,HOSE

QTY:

Ref: 090 Part #: 1E401-73012 Price: $42.64

Item: THERMOSTAT,ASSY

QTY:

Ref: 100 Part #: 16219-73260 Price: $19.32

Item: COVER, THERMOSTAT

QTY:

Ref: 110 Part #: 16221-73270 Price: $3.94

Item: GASKET, THERMOSTAT NA ***

QTY:

Ref: 120 Part #: 01123-50835 Price: $1.04

Item: BOLT M8x1.25x35 mm ***

QTY:

Ref: 130 Part #: 16241-64422 Price: $10.00

Item: STAY, DYNAMO

QTY:

Ref: 150 Part #: 16281-72862 Price: $71.20

Item: PIPE 2, WATER

QTY:

Ref: 160 Part #: 16241-72870 Price: $13.28

Item: PIPE,WATER

QTY:

Ref: 170 Part #: 1G677-72960 Price: $5.13

Item: CLAMP,HOSE

QTY:

Ref: 180 Part #: 06311-55010 Price: $2.04

Item: PLUG ***

QTY:

Ref: 190 Part #: 04724-00100 Price: $0.99

Item: GASKET, COPPER

QTY:

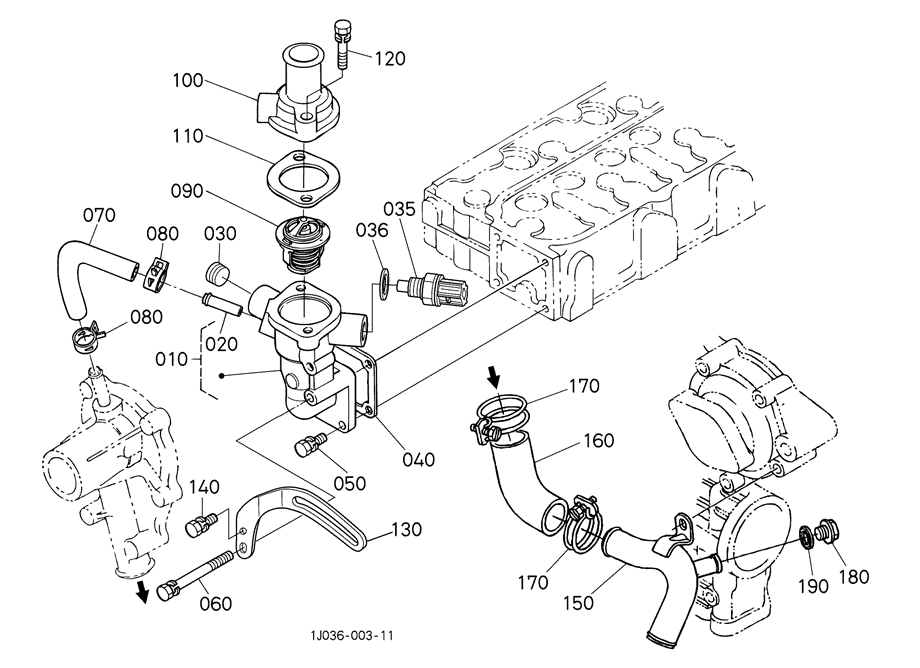

KUBOTA F2690 PARTS ENGINE 050000 WATER FLANGE AND THERMOSTAT
