Ref	Part #	Item	Price
010	K3511-56210	CASE	$389.02
020	04811-50850	O-RING ***	$5.59
030	05012-01020	PIN, STRAIGHT	$1.00
040	01133-51225	BOLT M12x1.25x25 mm ***	$1.44
050	67910-56250	SEAL, DUST	$18.06
060	67910-56260	SUPPORT, KNUCKLE ARM	$60.62
070	01123-50818	BOLT M8x1.25x18 mm ***	$0.99
080	K3511-56710	GEAR, BEVEL	$194.52
090	37410-57150	SHIM	$1.07
090	37410-57160	SHIM	$1.56
090	37410-57170	SHIM	$1.56
100	08101-06207	BEARING,BALL RADIAL 35/72 ***	$13.69
110	04611-00720	CIR-CLIP, INTERNAL	$6.61

Ref: 010 Part #: K3511-56210 Price: $389.02

Item: CASE

QTY:

Ref: 020 Part #: 04811-50850 Price: $5.59

Item: O-RING ***

QTY:

Ref: 030 Part #: 05012-01020 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 040 Part #: 01133-51225 Price: $1.44

Item: BOLT M12x1.25x25 mm ***

QTY:

Ref: 050 Part #: 67910-56250 Price: $18.06

Item: SEAL, DUST

QTY:

Ref: 060 Part #: 67910-56260 Price: $60.62

Item: SUPPORT, KNUCKLE ARM

QTY:

Ref: 070 Part #: 01123-50818 Price: $0.99

Item: BOLT M8x1.25x18 mm ***

QTY:

Ref: 080 Part #: K3511-56710 Price: $194.52

Item: GEAR, BEVEL

QTY:

Ref: 090 Part #: 37410-57150 Price: $1.07

Item: SHIM

QTY:

Ref: 090 Part #: 37410-57160 Price: $1.56

Item: SHIM

QTY:

Ref: 090 Part #: 37410-57170 Price: $1.56

Item: SHIM

QTY:

Ref: 100 Part #: 08101-06207 Price: $13.69

Item: BEARING,BALL RADIAL 35/72 ***

QTY:

Ref: 110 Part #: 04611-00720 Price: $6.61

Item: CIR-CLIP, INTERNAL

QTY:

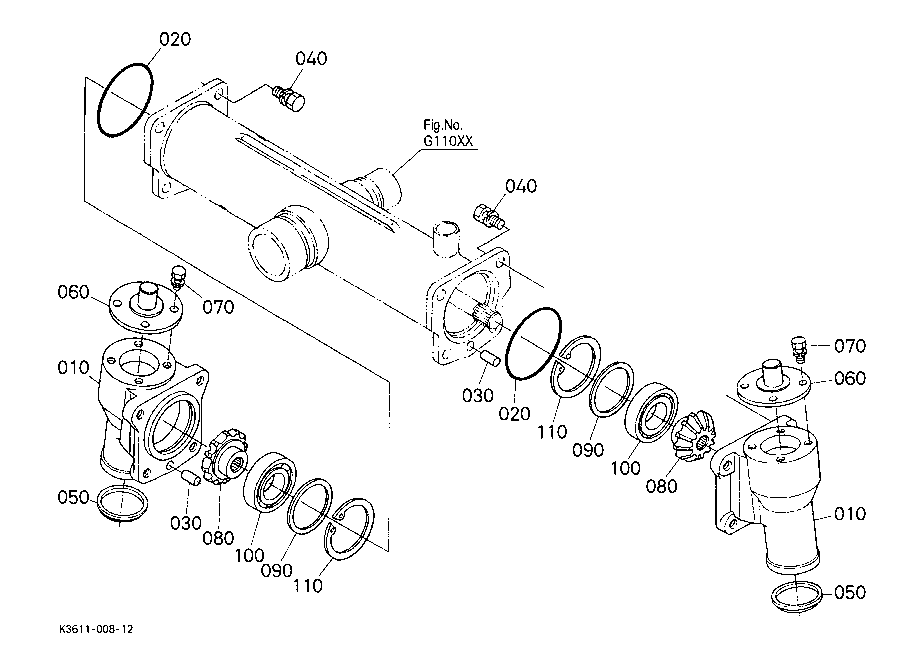

KUBOTA F3990 PARTS REAR AXLE REAR WHEEL G12300 BEVEL GEAR CASE
