KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
001	70710-73220	CASE, CHAIN	$886.04
002	70710-53240	PLUG ASSEMBLY	$8.94
004	70710-53260	LABEL, OIL FLR ***	$1.35
005	01153-50814	BOLT	$0.99
006	04717-00800	WASHER, w/RUBBER	$1.49
007	70710-73270	COVER, CHAIN CASE ***	$144.43
008	70710-73280	GASKET NA	$22.37
009	01123-50816	BOLT M8x1.25x16 mm ***	$0.99
010	01173-51228	BOLT M12x1.25x28 mm	$1.44
011	04512-50120	WASHER, SPRING LOCK ***	$1.70
012	09230-35726	SEAL	$9.42
013	08101-06306	BEARING, BALL (RADIAL)	$15.18
014	79205-51530	SPROCKET,11T ***	$192.51
015	63134-32420	WASHER, SPROCKET	$40.00
016	63134-32430	WASHER, LOCK	$1.65
017	01073-51020	BOLT M10x1.25x20 mm ***	$1.31
018	70710-53410	CHAIN, ROLLER	$194.52
019	70710-53430	SPROCKET,16	$376.60
020	66613-33140	STOPPER	$11.20
021	66613-33150	STOPPER	$5.22
022	01173-51225	BOLT M12x1.25x25 mm	$1.31
023	08101-06307	BEARING, BALL (RADIAL) ***	$27.35
024	04611-00800	CIR-CLIP, INTERNAL	$8.83
025	66613-32340	SEAL, OIL	$42.56
026	70710-53520	TIGHTENER ***	$77.86
027	65072-32150	PIN ***	$17.79
028	04717-01000	WASHER, SEAL W/RUBBER	$1.49
029	04613-50100	CIR-CLIP, EXTERNAL	$0.99
030	70710-53540	BOLT, TIGHTENER	$168.42
031	04724-00120	GASKET, COPPER	$0.99
032	02174-50120	NUT, HEX ***	$0.99

Ref: 001 Part #: 70710-73220 Price: $886.04

Item: CASE, CHAIN

QTY:

Ref: 002 Part #: 70710-53240 Price: $8.94

Item: PLUG ASSEMBLY

QTY:

Ref: 004 Part #: 70710-53260 Price: $1.35

Item: LABEL, OIL FLR ***

QTY:

Ref: 005 Part #: 01153-50814 Price: $0.99

Item: BOLT

QTY:

Ref: 006 Part #: 04717-00800 Price: $1.49

Item: WASHER, w/RUBBER

QTY:

Ref: 007 Part #: 70710-73270 Price: $144.43

Item: COVER, CHAIN CASE ***

QTY:

Ref: 008 Part #: 70710-73280 Price: $22.37

Item: GASKET NA

QTY:

Ref: 009 Part #: 01123-50816 Price: $0.99

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 010 Part #: 01173-51228 Price: $1.44

Item: BOLT M12x1.25x28 mm

QTY:

Ref: 011 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 012 Part #: 09230-35726 Price: $9.42

Item: SEAL

QTY:

Ref: 013 Part #: 08101-06306 Price: $15.18

Item: BEARING, BALL (RADIAL)

QTY:

Ref: 014 Part #: 79205-51530 Price: $192.51

Item: SPROCKET,11T ***

QTY:

Ref: 015 Part #: 63134-32420 Price: $40.00

Item: WASHER, SPROCKET

QTY:

Ref: 016 Part #: 63134-32430 Price: $1.65

Item: WASHER, LOCK

QTY:

Ref: 017 Part #: 01073-51020 Price: $1.31

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 018 Part #: 70710-53410 Price: $194.52

Item: CHAIN, ROLLER

QTY:

Ref: 019 Part #: 70710-53430 Price: $376.60

Item: SPROCKET,16

QTY:

Ref: 020 Part #: 66613-33140 Price: $11.20

Item: STOPPER

QTY:

Ref: 021 Part #: 66613-33150 Price: $5.22

Item: STOPPER

QTY:

Ref: 022 Part #: 01173-51225 Price: $1.31

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 023 Part #: 08101-06307 Price: $27.35

Item: BEARING, BALL (RADIAL) ***

QTY:

Ref: 024 Part #: 04611-00800 Price: $8.83

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 025 Part #: 66613-32340 Price: $42.56

Item: SEAL, OIL

QTY:

Ref: 026 Part #: 70710-53520 Price: $77.86

Item: TIGHTENER ***

QTY:

Ref: 027 Part #: 65072-32150 Price: $17.79

Item: PIN ***

QTY:

Ref: 028 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 029 Part #: 04613-50100 Price: $0.99

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 030 Part #: 70710-53540 Price: $168.42

Item: BOLT, TIGHTENER

QTY:

Ref: 031 Part #: 04724-00120 Price: $0.99

Item: GASKET, COPPER

QTY:

Ref: 032 Part #: 02174-50120 Price: $0.99

Item: NUT, HEX ***

QTY:

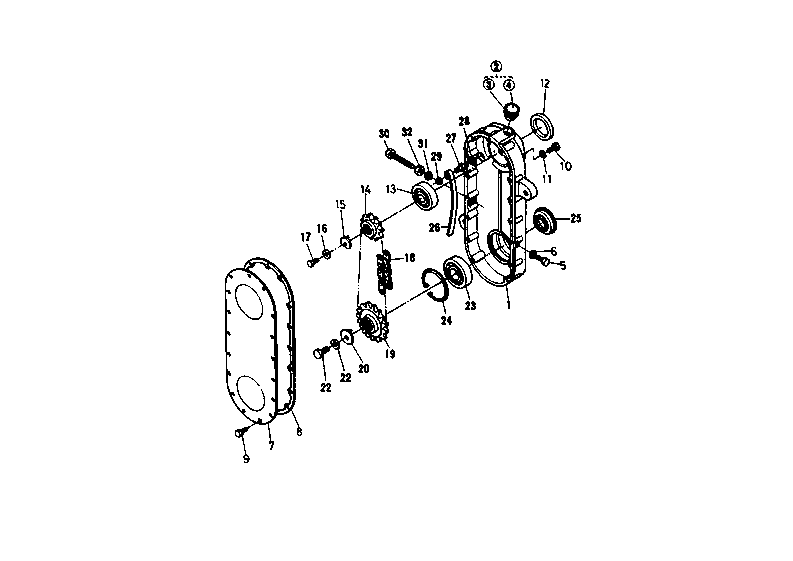

KUBOTA FL850 PARTS CHAIN CASE I00300 CHAIN CASE
