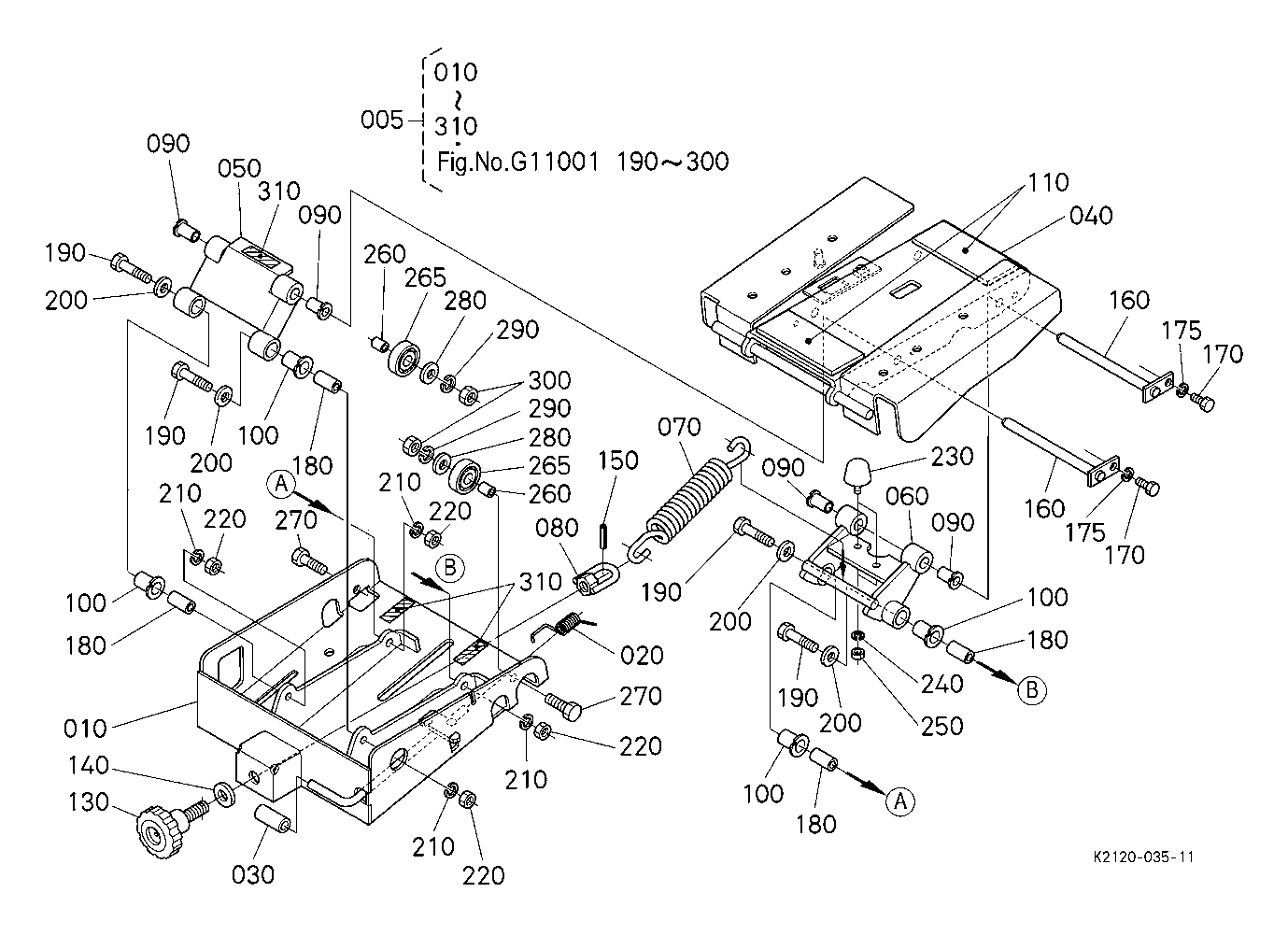

KUBOTA G2460G PARTS HOOD BONNET G04500 SEAT SUSPENSION

    KUBOTA >kubota-g2460g-parts-hood-bonnet-g04500-seat-suspension
    Ref: 005  Part #: K2110-56110  Price: $1,647.49

    Item: ASSY SUPPORT, SEAT

    QTY:
    Ref: 005  Part #: K2113-56110  Price: $1,352.11

    Item: ASSY SUPPORT, SEAT ***

    QTY:
    Ref: 010  Part #: K2110-56124  Price: $117.18

    Item: SUPPORT, SEAT UNDER

    QTY:
    Ref: 020  Part #: K1211-56152  Price: $1.23

    Item: SPRING,LOCK ***

    QTY:
    Ref: 030  Part #: K1211-56140  Price: $1.00

    Item: COVER, LEVER

    QTY:
    Ref: 040  Part #: K2113-56220  Price: $160.49

    Item: SUPPORT, SEAT UPPER

    QTY:
    Ref: 040  Part #: K2113-56220  Price: $160.49

    Item: SUPPORT, SEAT UPPER

    QTY:
    Ref: 050  Part #: K2110-56235  Price: $148.03

    Item: LINK, SEAT, 1

    QTY:
    Ref: 060  Part #: K2110-56243  Price: $121.84

    Item: LINK SEAT 2

    QTY:
    Ref: 070  Part #: K2110-56250  Price: $47.61

    Item: SPRING,SUSPENSION

    QTY:
    Ref: 080  Part #: K2110-56262  Price: $8.40

    Item: NUT (ADJUSTMENT)

    QTY:
    Ref: 090  Part #: K2110-56272  Price: $15.17

    Item: BUSHING (SUSPENSION)

    QTY:
    Ref: 100  Part #: K3111-56223  Price: $16.70

    Item: BUSHING (DP-FL-1/2X3/4) ***

    QTY:
    Ref: 110  Part #: K2110-56322  Price: $2.31

    Item: RUBBER , SEAT *** ***

    QTY:
    Ref: 130  Part #: 75599-32114  Price: $0.99

    Item: WASHER, FLAT 7/16 WIDE ***

    QTY:
    Ref: 140  Part #: K2110-56290  Price: $24.24

    Item: BOLT,KNOB

    QTY:
    Ref: 150  Part #: 75599-52211  Price: $1.67

    Item: PIN, SPRING (1/8x9/16)

    QTY:
    Ref: 160  Part #: K2110-56312  Price: $27.02

    Item: PIN, SEAT *

    QTY:
    Ref: 170  Part #: 01053-50616  Price: $0.99

    Item: BOLT M6x1.0x16 mm ***

    QTY:
    Ref: 175240  Part #: 75599-33011  Price: $0.99

    Item: WASHER,1/4" LOCK Rectang Coil Spring *

    QTY:
    Ref: 180  Part #: K2110-56352  Price: $10.00

    Item: COLLAR, SEAT

    QTY:
    Ref: 190  Part #: 01053-50840  Price: $0.99

    Item: BOLT M8x1.25x40 mm ***

    QTY:
    Ref: 200  Part #: 75599-32112  Price: $0.99

    Item: WASHER, FLAT 5/16 (DPB-2003-013) ***

    QTY:
    Ref: 210  Part #: 75599-33012  Price: $0.99

    Item: WASHER,LOCK 5/16 PTD *

    QTY:
    Ref: 220  Part #: 02054-50080  Price: $1.32

    Item: NUT, HEX M8x1.25, 4T ***

    QTY:
    Ref: 230  Part #: K2110-56280  Price: $3.89

    Item: CUSHION ***

    QTY:
    Ref: 250  Part #: 02014-50060  Price: $0.99

    Item: NUT, HEX M6x1.0 ***

    QTY:
    Ref: 260  Part #: K2110-56362  Price: $4.85

    Item: COLLAR,SLIDE

    QTY:
    Ref: 265  Part #: K2110-56370  Price: $6.98

    Item: ROLLER SLIDE-G2160 *

    QTY:
    Ref: 270  Part #: 01073-51030  Price: $1.55

    Item: BOLT M10x1.25x30 mm ***

    QTY:
    Ref: 280  Part #: 75599-32113  Price: $0.99

    Item: WASHER, FLAT 3/8 USS PLTD *** ***

    QTY:
    Ref: 290  Part #: 04512-70100  Price: $0.99

    Item: WASHER,SPRING

    QTY:
    Ref: 300  Part #: 02018-50100  Price: $0.99

    Item: NUT, 10MM X 1.25 ***

    QTY:
    Ref: 310  Part #: K1122-57163  Price: $0.99

    Item: PLATE, RUBBER

    QTY:
    Ref: 310  Part #: K1122-57163  Price: $0.99

    Item: PLATE, RUBBER

    QTY:
