Ref	Part #	Item	Price
001	EG641-63010	ASSY, STARTER (+$50.00 CORE) *	$353.31
002	15852-63050	LEVER, DRIVE	$26.48
003	15852-63023	SWITCH,MAGNETIC	$193.07
004	15852-63030	FRAME, DRIVE END	$113.24
005	15852-63240	BUSHING	$8.19
006	15852-63150	STOPPER ***	$9.95
007	15852-63040	COVER-RUNNING CLUTCH	$141.34
008	15852-63320	BOLT, STARTER	$2.89
009	15852-63070	ARMATURE	$322.27
010	15852-63410	WASHER, ADJUSTING	$9.39
011	15852-63080	YOKE	$265.02
012	15852-63360	BRUSH, STARTER	$11.23
013	15852-63380	BRUSH HOLDER ASSY.	$57.36
014	15852-63390	SPRING, BRUSH	$3.09
015	15852-63370	DEDSH, STARTER	$13.57
016	15852-63200	END FRAME ASSY.	$49.37
017	15852-63250	BUSHING, STARTER	$7.95
018	15852-93310	SCREW	$3.04

Ref: 001 Part #: EG641-63010 Price: $353.31

Item: ASSY, STARTER (+$50.00 CORE) *

QTY:

Ref: 002 Part #: 15852-63050 Price: $26.48

Item: LEVER, DRIVE

QTY:

Ref: 003 Part #: 15852-63023 Price: $193.07

Item: SWITCH,MAGNETIC

QTY:

Ref: 004 Part #: 15852-63030 Price: $113.24

Item: FRAME, DRIVE END

QTY:

Ref: 005 Part #: 15852-63240 Price: $8.19

Item: BUSHING

QTY:

Ref: 006 Part #: 15852-63150 Price: $9.95

Item: STOPPER ***

QTY:

Ref: 007 Part #: 15852-63040 Price: $141.34

Item: COVER-RUNNING CLUTCH

QTY:

Ref: 008 Part #: 15852-63320 Price: $2.89

Item: BOLT, STARTER

QTY:

Ref: 009 Part #: 15852-63070 Price: $322.27

Item: ARMATURE

QTY:

Ref: 010 Part #: 15852-63410 Price: $9.39

Item: WASHER, ADJUSTING

QTY:

Ref: 011 Part #: 15852-63080 Price: $265.02

Item: YOKE

QTY:

Ref: 012 Part #: 15852-63360 Price: $11.23

Item: BRUSH, STARTER

QTY:

Ref: 013 Part #: 15852-63380 Price: $57.36

Item: BRUSH HOLDER ASSY.

QTY:

Ref: 014 Part #: 15852-63390 Price: $3.09

Item: SPRING, BRUSH

QTY:

Ref: 015 Part #: 15852-63370 Price: $13.57

Item: DEDSH, STARTER

QTY:

Ref: 016 Part #: 15852-63200 Price: $49.37

Item: END FRAME ASSY.

QTY:

Ref: 017 Part #: 15852-63250 Price: $7.95

Item: BUSHING, STARTER

QTY:

Ref: 018 Part #: 15852-93310 Price: $3.04

Item: SCREW

QTY:

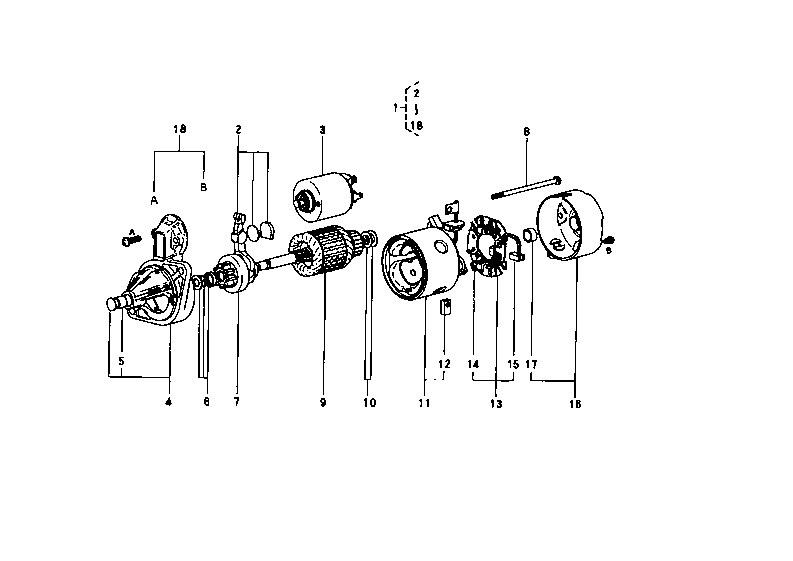

KUBOTA G3200 PARTS ELECTRICAL SYSTEM T08200 STARTER [SECTION PARTS]
