Ref	Part #	Item	Price
010	68581-61130	ASSY VALVE,CONTROL ***	$1,481.35
020	68741-70110	VALVE, INLET SECTION	$286.07
030	68741-70510	HOUSING, VALVE INLET	$286.07
040, 180	68021-81330	O-RING ***	$1.02
050	68131-65020	ASSY SECTION, SPOOL (OUTLET)	$429.02
060	68761-70120	SPOOL SECTION ASSY	$653.34
070	68751-70120	SPOOL SECTION ASSY	$590.75
080	68761-70130	SPOOL SECTION ASSY	$616.83
090	68761-70140	SPOOL SECTION ASSY	$906.48
100	68581-70150	VALVE,SPACER SECTION ***	$1,038.15
110	68761-70710	SPACER	$187.87
120	68761-70740	SPACER	$22.35
130	68761-70770	SPACER	$22.35
140	68761-70720	VALVE	$63.15
150	68761-70750	VALVE	$63.15
160	68761-70730	SPRING	$3.23
170	68761-70760	SPRING	$3.23
190	68741-70560	O-RING	$6.90
200	70726-67440	O RING	$2.66
210	68761-70780	PLUG	$85.81
220	68741-70550	PLUG	$85.81
230	68581-70010	ASSY VALVE, MAIN REL	$408.34
240	68011-62220	O-RING	$2.70
250	68389-96110	O-RING	$8.26
260	68581-70040	VALVE RELIEF ASSY	$408.34
270	68741-70150	PLUG	$25.26
280	68389-61240	ROD, TIE	$35.29
290	68021-81380	NUT	$27.41
300	68389-61250	ROD, TIE	$28.22
310	68021-81370	NUT	$10.40
320	01173-71030	BOLT M10x1.25x30 mm	$1.31
330	04512-70100	WASHER,SPRING	$0.99
340	02118-70100	NUT	$0.99

Ref: 010 Part #: 68581-61130 Price: $1,481.35

Item: ASSY VALVE,CONTROL ***

QTY:

Ref: 020 Part #: 68741-70110 Price: $286.07

Item: VALVE, INLET SECTION

QTY:

Ref: 030 Part #: 68741-70510 Price: $286.07

Item: HOUSING, VALVE INLET

QTY:

Ref: 040180 Part #: 68021-81330 Price: $1.02

Item: O-RING ***

QTY:

Ref: 050 Part #: 68131-65020 Price: $429.02

Item: ASSY SECTION, SPOOL (OUTLET)

QTY:

Ref: 060 Part #: 68761-70120 Price: $653.34

Item: SPOOL SECTION ASSY

QTY:

Ref: 070 Part #: 68751-70120 Price: $590.75

Item: SPOOL SECTION ASSY

QTY:

Ref: 080 Part #: 68761-70130 Price: $616.83

Item: SPOOL SECTION ASSY

QTY:

Ref: 090 Part #: 68761-70140 Price: $906.48

Item: SPOOL SECTION ASSY

QTY:

Ref: 100 Part #: 68581-70150 Price: $1,038.15

Item: VALVE,SPACER SECTION ***

QTY:

Ref: 110 Part #: 68761-70710 Price: $187.87

Item: SPACER

QTY:

Ref: 120 Part #: 68761-70740 Price: $22.35

Item: SPACER

QTY:

Ref: 130 Part #: 68761-70770 Price: $22.35

Item: SPACER

QTY:

Ref: 140 Part #: 68761-70720 Price: $63.15

Item: VALVE

QTY:

Ref: 150 Part #: 68761-70750 Price: $63.15

Item: VALVE

QTY:

Ref: 160 Part #: 68761-70730 Price: $3.23

Item: SPRING

QTY:

Ref: 170 Part #: 68761-70760 Price: $3.23

Item: SPRING

QTY:

Ref: 190 Part #: 68741-70560 Price: $6.90

Item: O-RING

QTY:

Ref: 200 Part #: 70726-67440 Price: $2.66

Item: O RING

QTY:

Ref: 210 Part #: 68761-70780 Price: $85.81

Item: PLUG

QTY:

Ref: 220 Part #: 68741-70550 Price: $85.81

Item: PLUG

QTY:

Ref: 230 Part #: 68581-70010 Price: $408.34

Item: ASSY VALVE, MAIN REL

QTY:

Ref: 240 Part #: 68011-62220 Price: $2.70

Item: O-RING

QTY:

Ref: 250 Part #: 68389-96110 Price: $8.26

Item: O-RING

QTY:

Ref: 260 Part #: 68581-70040 Price: $408.34

Item: VALVE RELIEF ASSY

QTY:

Ref: 270 Part #: 68741-70150 Price: $25.26

Item: PLUG

QTY:

Ref: 280 Part #: 68389-61240 Price: $35.29

Item: ROD, TIE

QTY:

Ref: 290 Part #: 68021-81380 Price: $27.41

Item: NUT

QTY:

Ref: 300 Part #: 68389-61250 Price: $28.22

Item: ROD, TIE

QTY:

Ref: 310 Part #: 68021-81370 Price: $10.40

Item: NUT

QTY:

Ref: 320 Part #: 01173-71030 Price: $1.31

Item: BOLT M10x1.25x30 mm

QTY:

Ref: 330 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 340 Part #: 02118-70100 Price: $0.99

Item: NUT

QTY:

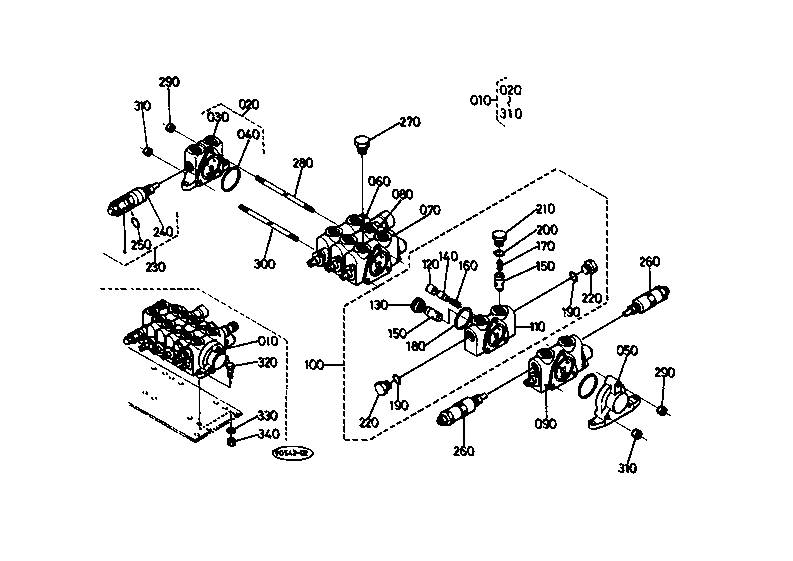

KUBOTA KH 101 PARTS HYDRAULIC SYSTEM S04200 CONTROL VALVE (1) COMPONENT PARTS
