Ref	Part #	Item	Price
010	68493-61290	MOTOR, DRIVE ***	$3,056.92
020	68493-71790	WASHER	$12.76
021	68493-71750	SHAFT	$468.24
022	68493-71820	BEARING BALL	$115.32
023	68493-71830	BEARING NEEDLE	$68.17
024	68493-71840	PIN,STRAIGHT	$15.93
025	68493-71800	SWASHPLATE ASSY	$1,784.47
030	68493-71810	SPRING	$12.98
040	68493-71450	PIN,STRAIGHT	$10.10
050	68493-71850	SPRING ***	$12.73
060	68493-71860	RING, SNAP ***	$10.10
070	68493-71870	SEAL, OIL	$37.20
080	68493-71880	RING, SNAP	$22.17
090	68493-71910	PIN,STRAIGHT	$10.10
100	68493-71490	GASKET ***	$21.72
110	68493-71930	BOLT, SOCKET HEAD	$11.28
120	68493-71920	VALVE, BRAKE	$2,265.79
130	68493-71960	SEAT, SPRING	$26.13
140	68493-71970	SPRING	$12.98
150	68493-71980	CAP	$70.83
160	68493-71990	O-RING	$12.87
170	04810-00160	O-RING***	$1.46
180	68493-72110	VALVE, RELIEF ***	$533.77
190	04817-00180	O-RING ***	$1.49
200	04816-00140	O-RING ***	$1.32
210	68493-71580	RING, BACK UP	$5.48
220	68493-91310	KIT, SEAL	$94.45
230	68493-91320	KIT, SEAL RELIEF VLV	$57.19
240	04811-11000	O-RING	$5.33
250	01133-51230	BOLT M12x1.25x30 mm ***	$1.55

Ref: 010 Part #: 68493-61290 Price: $3,056.92

Item: MOTOR, DRIVE ***

QTY:

Ref: 020 Part #: 68493-71790 Price: $12.76

Item: WASHER

QTY:

Ref: 021 Part #: 68493-71750 Price: $468.24

Item: SHAFT

QTY:

Ref: 022 Part #: 68493-71820 Price: $115.32

Item: BEARING BALL

QTY:

Ref: 023 Part #: 68493-71830 Price: $68.17

Item: BEARING NEEDLE

QTY:

Ref: 024 Part #: 68493-71840 Price: $15.93

Item: PIN,STRAIGHT

QTY:

Ref: 025 Part #: 68493-71800 Price: $1,784.47

Item: SWASHPLATE ASSY

QTY:

Ref: 030 Part #: 68493-71810 Price: $12.98

Item: SPRING

QTY:

Ref: 040 Part #: 68493-71450 Price: $10.10

Item: PIN,STRAIGHT

QTY:

Ref: 050 Part #: 68493-71850 Price: $12.73

Item: SPRING ***

QTY:

Ref: 060 Part #: 68493-71860 Price: $10.10

Item: RING, SNAP ***

QTY:

Ref: 070 Part #: 68493-71870 Price: $37.20

Item: SEAL, OIL

QTY:

Ref: 080 Part #: 68493-71880 Price: $22.17

Item: RING, SNAP

QTY:

Ref: 090 Part #: 68493-71910 Price: $10.10

Item: PIN,STRAIGHT

QTY:

Ref: 100 Part #: 68493-71490 Price: $21.72

Item: GASKET ***

QTY:

Ref: 110 Part #: 68493-71930 Price: $11.28

Item: BOLT, SOCKET HEAD

QTY:

Ref: 120 Part #: 68493-71920 Price: $2,265.79

Item: VALVE, BRAKE

QTY:

Ref: 130 Part #: 68493-71960 Price: $26.13

Item: SEAT, SPRING

QTY:

Ref: 140 Part #: 68493-71970 Price: $12.98

Item: SPRING

QTY:

Ref: 150 Part #: 68493-71980 Price: $70.83

Item: CAP

QTY:

Ref: 160 Part #: 68493-71990 Price: $12.87

Item: O-RING

QTY:

Ref: 170 Part #: 04810-00160 Price: $1.46

Item: O-RING***

QTY:

Ref: 180 Part #: 68493-72110 Price: $533.77

Item: VALVE, RELIEF ***

QTY:

Ref: 190 Part #: 04817-00180 Price: $1.49

Item: O-RING ***

QTY:

Ref: 200 Part #: 04816-00140 Price: $1.32

Item: O-RING ***

QTY:

Ref: 210 Part #: 68493-71580 Price: $5.48

Item: RING, BACK UP

QTY:

Ref: 220 Part #: 68493-91310 Price: $94.45

Item: KIT, SEAL

QTY:

Ref: 230 Part #: 68493-91320 Price: $57.19

Item: KIT, SEAL RELIEF VLV

QTY:

Ref: 240 Part #: 04811-11000 Price: $5.33

Item: O-RING

QTY:

Ref: 250 Part #: 01133-51230 Price: $1.55

Item: BOLT M12x1.25x30 mm ***

QTY:

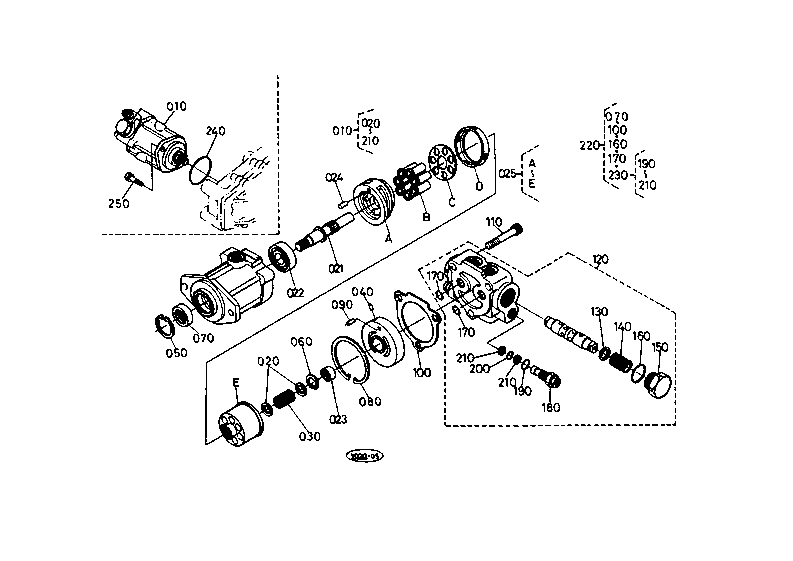

KUBOTA KH 191 PARTS HYDRAULIC SYSTEM S03900 DRIVE MOTOR COMPONENT PARTS
