Ref	Part #	Item	Price
010	RD579-51512	PLATE(PARTITION)	$1,120.13
020, 190, 220	01135-51020	BOLT M10x1.25x20 mm ***	$1.31
030, 035	RD411-51240	CUSHION, 2 FUEL TANK	$4.26
040	RD809-51432	CUSHION	$6.20
050	T2560-42330	GROMMET(HARNESS)	$18.06
060, 130	RC348-41250	TRIM	$3.83
080	RD579-51672	COVER	$16.21
090, 110	01125-50820	BOLT M8x1.25x20 mm ***	$0.99
100	RD579-51540	PLATE(PARTITION)	$186.51
120	RC348-44170	TRIM	$13.38
140	RD579-51620	TRIM	$29.89
150	RD578-41310	FRAME(2,ARCH)	Call for price
160	01135-51230	BOLT M12x1.25x30 mm ***	$2.27
170	01135-51030	BOLT M10x1.25x30 mm ***	$1.55
180	RD579-44920	COVER(ECU,ENGINE)	$107.03
200	01025-50625	BOLT M6x1.0x25 mm ***	$0.99
210	RD159-41532	STAY(SBF)	$31.73
230	RD579-46162	TANK,ASSY(WASHER)	$158.46
240	RD451-46210	CAP	$7.40
250	01025-50620	BOLT M6x1.0x20 mm ***	$0.99
260	RD579-46150	JOINT	$10.81
270	RD579-46180	TUBE(WASHER,1600)	$4.46

Ref: 010 Part #: RD579-51512 Price: $1,120.13

Item: PLATE(PARTITION)

QTY:

Ref: 020190220 Part #: 01135-51020 Price: $1.31

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 030035 Part #: RD411-51240 Price: $4.26

Item: CUSHION, 2 FUEL TANK

QTY:

Ref: 040 Part #: RD809-51432 Price: $6.20

Item: CUSHION

QTY:

Ref: 050 Part #: T2560-42330 Price: $18.06

Item: GROMMET(HARNESS)

QTY:

Ref: 060130 Part #: RC348-41250 Price: $3.83

Item: TRIM

QTY:

Ref: 080 Part #: RD579-51672 Price: $16.21

Item: COVER

QTY:

Ref: 090110 Part #: 01125-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 100 Part #: RD579-51540 Price: $186.51

Item: PLATE(PARTITION)

QTY:

Ref: 120 Part #: RC348-44170 Price: $13.38

Item: TRIM

QTY:

Ref: 140 Part #: RD579-51620 Price: $29.89

Item: TRIM

QTY:

Ref: 150 Part #: RD578-41310 Price: Call for price

Item: FRAME(2,ARCH)

QTY:

Ref: 160 Part #: 01135-51230 Price: $2.27

Item: BOLT M12x1.25x30 mm ***

QTY:

Ref: 170 Part #: 01135-51030 Price: $1.55

Item: BOLT M10x1.25x30 mm ***

QTY:

Ref: 180 Part #: RD579-44920 Price: $107.03

Item: COVER(ECU,ENGINE)

QTY:

Ref: 200 Part #: 01025-50625 Price: $0.99

Item: BOLT M6x1.0x25 mm ***

QTY:

Ref: 210 Part #: RD159-41532 Price: $31.73

Item: STAY(SBF)

QTY:

Ref: 230 Part #: RD579-46162 Price: $158.46

Item: TANK,ASSY(WASHER)

QTY:

Ref: 240 Part #: RD451-46210 Price: $7.40

Item: CAP

QTY:

Ref: 250 Part #: 01025-50620 Price: $0.99

Item: BOLT M6x1.0x20 mm ***

QTY:

Ref: 260 Part #: RD579-46150 Price: $10.81

Item: JOINT

QTY:

Ref: 270 Part #: RD579-46180 Price: $4.46

Item: TUBE(WASHER,1600)

QTY:

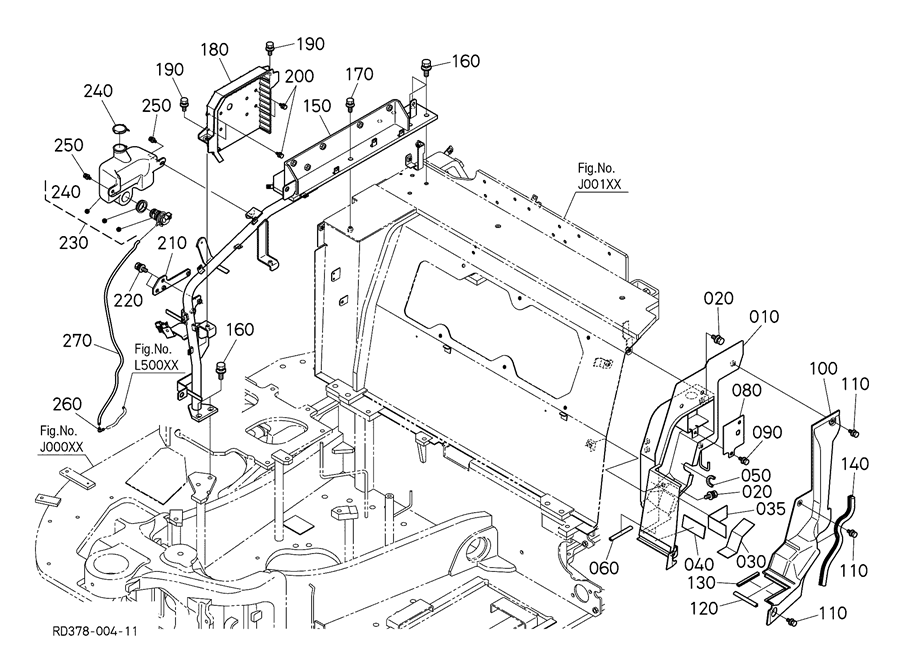

KUBOTA KX057 5 PARTS SWIVEL FRAME J00200 ARCH FRAME (2)
