Ref	Part #	Item	Price
010	RD809-51762	ASSY PUMP ***	$1,218.92
020	RD809-51770	GASKET	$41.55
030	RD809-51780	JOINT, PIPE	$136.73
040	RD809-51792	FILTER, SUCTION *	$99.51
040	RD809-51792	FILTER, SUCTION *	$99.51
050, 190	01125-70816	BOLT M8x1.25x16 mm	$0.99
060	R1401-63150	CLAMP,HOSE	$7.22
070	RD809-51460	PLATE	$17.79
080	01023-70616	BOLT	$0.99
090	RD809-51816	BOX	$178.80
090	RD809-51816	BOX	$178.80
100	01135-71020	BOLT M10x1.25x20 mm	$1.31
110	RD809-91190	KIT COVER	$40.76
115	RD809-57260	LABEL, FILLER	$6.02
120	03004-50614	SCREW, w/WASHER M6 1.0x13 mm Phillips	$0.99
130	69251-41272	CLAMP	$11.63
140	01123-70825	BOLT M8x1.25x25 mm	$1.04
150	RD809-51720	HOSE, FUEL OIL FILLER	$225.02
160	RD809-51730	HOSE, FUEL OIL FILLER	$47.56
170	RD809-51832	CUP	$110.04
180	RD809-51840	COVER	$49.53

Ref: 010 Part #: RD809-51762 Price: $1,218.92

Item: ASSY PUMP ***

QTY:

Ref: 020 Part #: RD809-51770 Price: $41.55

Item: GASKET

QTY:

Ref: 030 Part #: RD809-51780 Price: $136.73

Item: JOINT, PIPE

QTY:

Ref: 040 Part #: RD809-51792 Price: $99.51

Item: FILTER, SUCTION *

QTY:

Ref: 040 Part #: RD809-51792 Price: $99.51

Item: FILTER, SUCTION *

QTY:

Ref: 050190 Part #: 01125-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 060 Part #: R1401-63150 Price: $7.22

Item: CLAMP,HOSE

QTY:

Ref: 070 Part #: RD809-51460 Price: $17.79

Item: PLATE

QTY:

Ref: 080 Part #: 01023-70616 Price: $0.99

Item: BOLT

QTY:

Ref: 090 Part #: RD809-51816 Price: $178.80

Item: BOX

QTY:

Ref: 090 Part #: RD809-51816 Price: $178.80

Item: BOX

QTY:

Ref: 100 Part #: 01135-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 110 Part #: RD809-91190 Price: $40.76

Item: KIT COVER

QTY:

Ref: 115 Part #: RD809-57260 Price: $6.02

Item: LABEL, FILLER

QTY:

Ref: 120 Part #: 03004-50614 Price: $0.99

Item: SCREW, w/WASHER M6 1.0x13 mm Phillips

QTY:

Ref: 130 Part #: 69251-41272 Price: $11.63

Item: CLAMP

QTY:

Ref: 140 Part #: 01123-70825 Price: $1.04

Item: BOLT M8x1.25x25 mm

QTY:

Ref: 150 Part #: RD809-51720 Price: $225.02

Item: HOSE, FUEL OIL FILLER

QTY:

Ref: 160 Part #: RD809-51730 Price: $47.56

Item: HOSE, FUEL OIL FILLER

QTY:

Ref: 170 Part #: RD809-51832 Price: $110.04

Item: CUP

QTY:

Ref: 180 Part #: RD809-51840 Price: $49.53

Item: COVER

QTY:

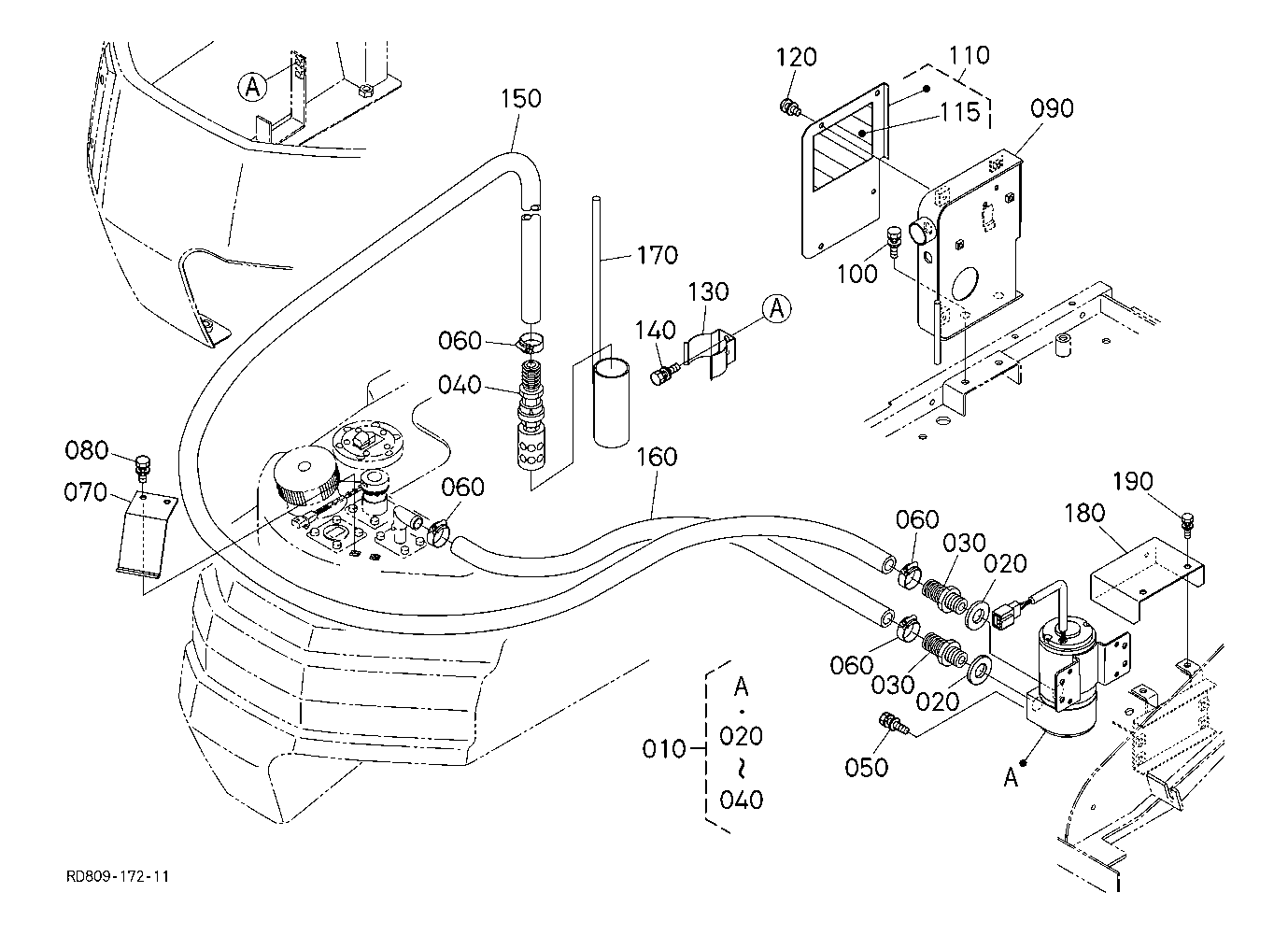

KUBOTA KX080 3 PARTS FUEL SYSTEM A30500 FUEL SUPPLY PUMP
