Ref	Part #	Item	Price
010	RD809-41203	ASSY FRAME, SWING *	$19,319.12
010	RD809-41203	ASSY FRAME, SWING *	$19,319.12
010	RD809-41203	ASSY FRAME, SWING *	$19,319.12
020	RD809-41130	BUSHING,SWIVEL FRAME	$357.55
030	RD809-41190	SEAL, DUST	$48.59
040	06611-15010	NIPPLE,GREASE	$2.34
050	RD809-41430	GROMMET,SWIVEL (ANGLE BLADE)	$23.04
060	RD809-41440	GROMMET,SWIVEL	$20.21
070	RD809-41450	GROMMET,SWIVEL	$17.31
075	68741-66560	CAP	$8.45
090	RD809-41170	COVER	$99.79
095	RD809-42272	COVER	$178.80
095	RD809-42272	COVER	$178.80
100, 120	01135-71020	BOLT M10x1.25x20 mm	$1.31
100	01135-71025	BOLT M10x1.25x25 mm *	$1.63
110	RD809-41180	BRACKET	$33.89
130	RD809-41510	COVER	$46.47
140	01125-70816	BOLT M8x1.25x16 mm	$0.99
150	RD809-41760	GROMMET	$8.86
160	RD809-48500	CUSHION (BOLT ON)	$226.65
165	RD809-48500	CUSHION (BOLT ON)	$226.65
170	01138-71230	BOLT	$1.86
180	RD809-48560	CUP,RUBBER	$20.77
185	3F240-87170	WASHER, FENDER	$9.78
190	RD809-48550	WASHER	$49.61
195	RD809-48510	BOLT	$20.21
200	RD809-48520	NUT	$40.82
210	04512-70160	WASHER,SPRING	$0.99
220	36500-49390	NUT, M16	$5.72
230	68051-42160	CUSHION	$62.28
240	RD809-48532	PLATE, CUSHION	$13.55
250	04015-70100	WASHER,PLAIN	$0.99
260	04512-70100	WASHER,SPRING	$0.99
270	02118-70100	NUT	$0.99
280	01133-71020	BOLT M10x1.25x20 mm	$1.31

Ref: 010 Part #: RD809-41203 Price: $19,319.12

Item: ASSY FRAME, SWING *

QTY:

Ref: 010 Part #: RD809-41203 Price: $19,319.12

Item: ASSY FRAME, SWING *

QTY:

Ref: 010 Part #: RD809-41203 Price: $19,319.12

Item: ASSY FRAME, SWING *

QTY:

Ref: 020 Part #: RD809-41130 Price: $357.55

Item: BUSHING,SWIVEL FRAME

QTY:

Ref: 030 Part #: RD809-41190 Price: $48.59

Item: SEAL, DUST

QTY:

Ref: 040 Part #: 06611-15010 Price: $2.34

Item: NIPPLE,GREASE

QTY:

Ref: 050 Part #: RD809-41430 Price: $23.04

Item: GROMMET,SWIVEL (ANGLE BLADE)

QTY:

Ref: 060 Part #: RD809-41440 Price: $20.21

Item: GROMMET,SWIVEL

QTY:

Ref: 070 Part #: RD809-41450 Price: $17.31

Item: GROMMET,SWIVEL

QTY:

Ref: 075 Part #: 68741-66560 Price: $8.45

Item: CAP

QTY:

Ref: 090 Part #: RD809-41170 Price: $99.79

Item: COVER

QTY:

Ref: 095 Part #: RD809-42272 Price: $178.80

Item: COVER

QTY:

Ref: 095 Part #: RD809-42272 Price: $178.80

Item: COVER

QTY:

Ref: 100120 Part #: 01135-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 100 Part #: 01135-71025 Price: $1.63

Item: BOLT M10x1.25x25 mm *

QTY:

Ref: 110 Part #: RD809-41180 Price: $33.89

Item: BRACKET

QTY:

Ref: 130 Part #: RD809-41510 Price: $46.47

Item: COVER

QTY:

Ref: 140 Part #: 01125-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 150 Part #: RD809-41760 Price: $8.86

Item: GROMMET

QTY:

Ref: 160 Part #: RD809-48500 Price: $226.65

Item: CUSHION (BOLT ON)

QTY:

Ref: 165 Part #: RD809-48500 Price: $226.65

Item: CUSHION (BOLT ON)

QTY:

Ref: 170 Part #: 01138-71230 Price: $1.86

Item: BOLT

QTY:

Ref: 180 Part #: RD809-48560 Price: $20.77

Item: CUP,RUBBER

QTY:

Ref: 185 Part #: 3F240-87170 Price: $9.78

Item: WASHER, FENDER

QTY:

Ref: 190 Part #: RD809-48550 Price: $49.61

Item: WASHER

QTY:

Ref: 195 Part #: RD809-48510 Price: $20.21

Item: BOLT

QTY:

Ref: 200 Part #: RD809-48520 Price: $40.82

Item: NUT

QTY:

Ref: 210 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 220 Part #: 36500-49390 Price: $5.72

Item: NUT, M16

QTY:

Ref: 230 Part #: 68051-42160 Price: $62.28

Item: CUSHION

QTY:

Ref: 240 Part #: RD809-48532 Price: $13.55

Item: PLATE, CUSHION

QTY:

Ref: 250 Part #: 04015-70100 Price: $0.99

Item: WASHER,PLAIN

QTY:

Ref: 260 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 270 Part #: 02118-70100 Price: $0.99

Item: NUT

QTY:

Ref: 280 Part #: 01133-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

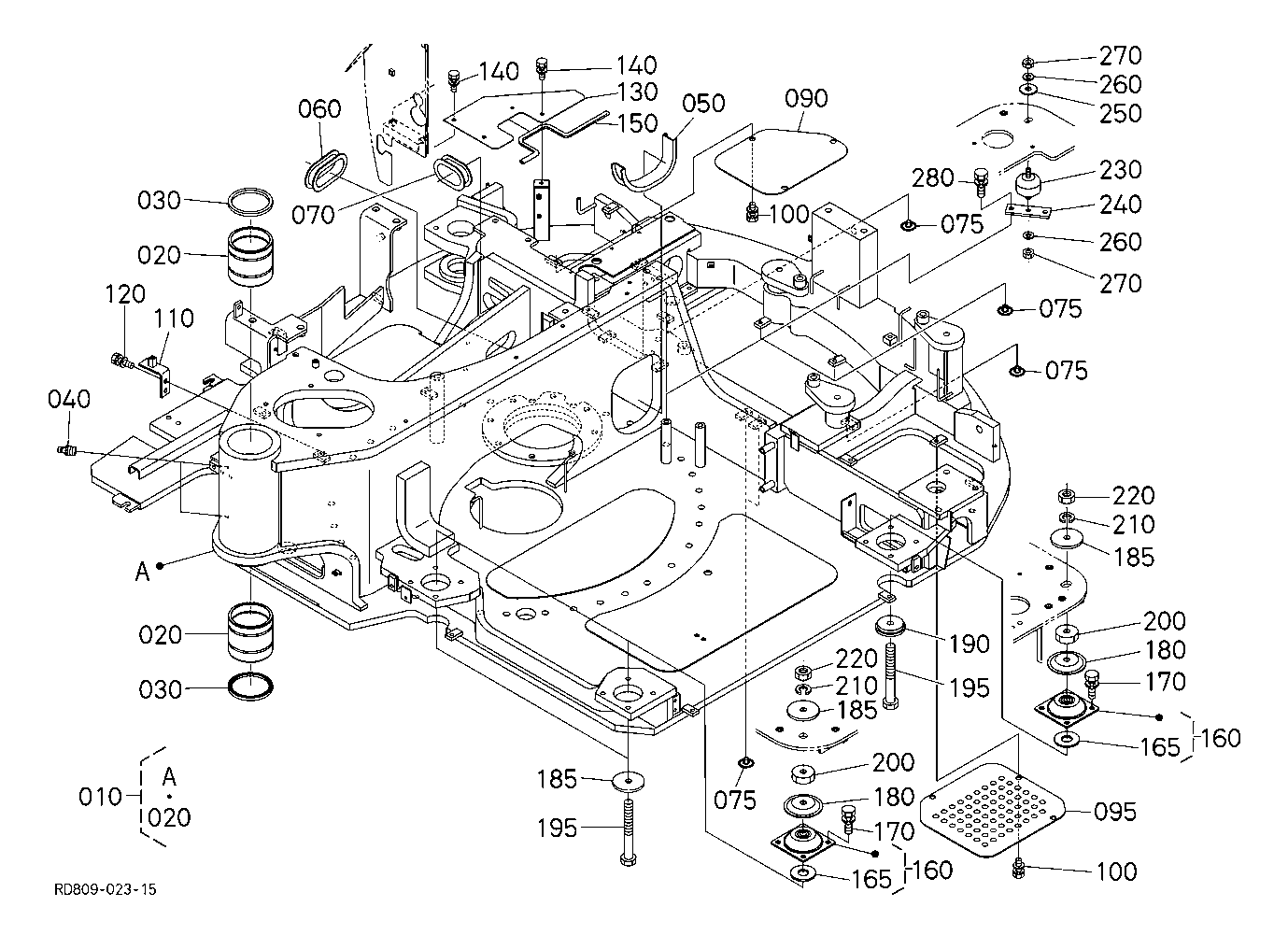

KUBOTA KX080 3 PARTS SWIVEL FRAME J00000 SWIVEL FRAME
