Ref	Part #	Item	Price
010	RD451-93900	ASSY COMPRESSOR	$1,604.77
020	3C581-96110	ASSY CLUTCH, MAGNET	$1,045.05
030	T1065-87320	SCREW, w/WASHER	$1.88
040	T1065-87340	SHIM	$0.99
040	T1065-87350	SHIM	$2.66
040	T1065-87360	SHIM	$2.66
040	T1065-87370	SHIM	$2.66
040	T1065-87380	SHIM (1.0, LS30)	$2.99
050	T1065-87440	CIR-CLIP	$9.42
060	T1065-87450	CIR-CLIP	$9.42
070	T1065-87460	BOLT	$1.65
080	T0270-72320	BUSHING	$12.88
090	01125-50835	BOLT M8x1.25x35 mm ***	$1.44
100	01125-50825	BOLT M8x1.25x25 mm ***	$1.17
110	01123-50825	BOLT M8x1.25x25 mm *	$0.99
120	04015-70080	WASHER, PLAIN	$0.99
130	RD819-42782	BELT, V (A-54)	$79.85
130	RD819-42790	BELT, V (A-54.5)	$66.50
140	RD819-42850	BRACKET, COMPRESSOR	$261.74
150	T1065-30540	CLIP	$6.03
160	68841-44650	GROMMET	$5.14
170	01125-70820	BOLT M8x1.25x20 mm	$0.99
180	01125-50890	BOLT M8x1.25x90 mm ***	$2.33
190	01135-71025	BOLT M10x1.25x25 mm *	$1.63

Ref: 010 Part #: RD451-93900 Price: $1,604.77

Item: ASSY COMPRESSOR

QTY:

Ref: 020 Part #: 3C581-96110 Price: $1,045.05

Item: ASSY CLUTCH, MAGNET

QTY:

Ref: 030 Part #: T1065-87320 Price: $1.88

Item: SCREW, w/WASHER

QTY:

Ref: 040 Part #: T1065-87340 Price: $0.99

Item: SHIM

QTY:

Ref: 040 Part #: T1065-87350 Price: $2.66

Item: SHIM

QTY:

Ref: 040 Part #: T1065-87360 Price: $2.66

Item: SHIM

QTY:

Ref: 040 Part #: T1065-87370 Price: $2.66

Item: SHIM

QTY:

Ref: 040 Part #: T1065-87380 Price: $2.99

Item: SHIM (1.0, LS30)

QTY:

Ref: 050 Part #: T1065-87440 Price: $9.42

Item: CIR-CLIP

QTY:

Ref: 060 Part #: T1065-87450 Price: $9.42

Item: CIR-CLIP

QTY:

Ref: 070 Part #: T1065-87460 Price: $1.65

Item: BOLT

QTY:

Ref: 080 Part #: T0270-72320 Price: $12.88

Item: BUSHING

QTY:

Ref: 090 Part #: 01125-50835 Price: $1.44

Item: BOLT M8x1.25x35 mm ***

QTY:

Ref: 100 Part #: 01125-50825 Price: $1.17

Item: BOLT M8x1.25x25 mm ***

QTY:

Ref: 110 Part #: 01123-50825 Price: $0.99

Item: BOLT M8x1.25x25 mm *

QTY:

Ref: 120 Part #: 04015-70080 Price: $0.99

Item: WASHER, PLAIN

QTY:

Ref: 130 Part #: RD819-42782 Price: $79.85

Item: BELT, V (A-54)

QTY:

Ref: 130 Part #: RD819-42790 Price: $66.50

Item: BELT, V (A-54.5)

QTY:

Ref: 140 Part #: RD819-42850 Price: $261.74

Item: BRACKET, COMPRESSOR

QTY:

Ref: 150 Part #: T1065-30540 Price: $6.03

Item: CLIP

QTY:

Ref: 160 Part #: 68841-44650 Price: $5.14

Item: GROMMET

QTY:

Ref: 170 Part #: 01125-70820 Price: $0.99

Item: BOLT M8x1.25x20 mm

QTY:

Ref: 180 Part #: 01125-50890 Price: $2.33

Item: BOLT M8x1.25x90 mm ***

QTY:

Ref: 190 Part #: 01135-71025 Price: $1.63

Item: BOLT M10x1.25x25 mm *

QTY:

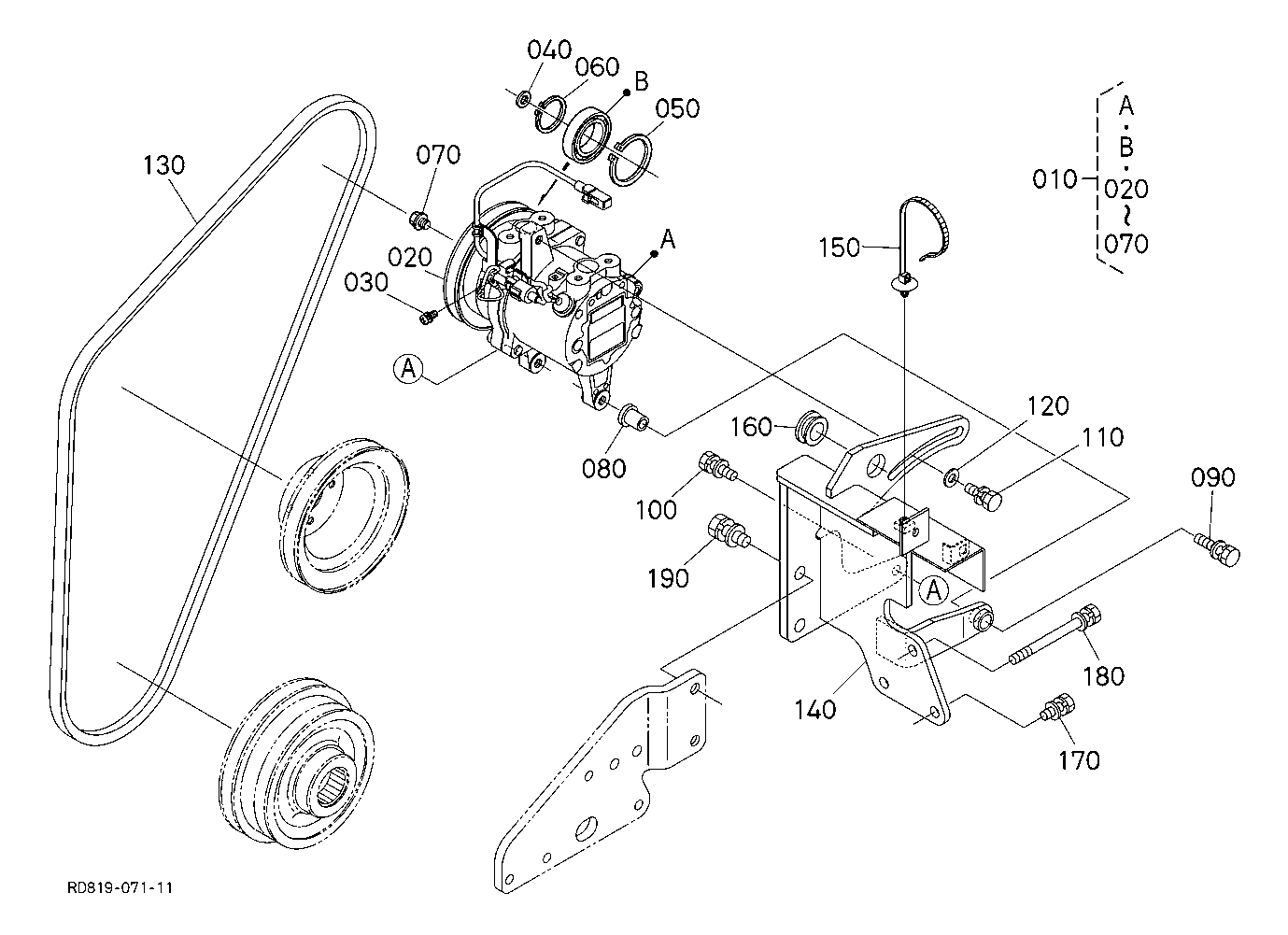

KUBOTA KX080 3T PARTS CABIN L60300 CABIN (AIR CONDITIONER 2)
