KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	15401-95693	JOINT,EYE	$20.61
020	15461-51010	PUMP, INJ. ASSY	$1,772.65
030	19077-52123	SHIM, INJ PUMP 0.30mm	$6.90
040	01123-50822	BOLT M8x1.25x22 mm ***	$0.99
050	01513-50822	STUD ***	$0.99
060	02156-50080	NUT, HEX M8 -1.25 ***	$0.99
070	04512-50080	WASHER, SPRING ***	$0.99
080	15748-60572	ASSY ORIFICE	$15.69
090	15426-52850	COVER	$6.27
090	06311-85020	CAP, SEALING ***	$2.04
100	1A021-52140	GASKET, FUEL PUMP N/A *	$1.24
110	01023-50616	BOLT M6x1.0x16 mm ***	$0.99

Ref: 010 Part #: 15401-95693 Price: $20.61

Item: JOINT,EYE

QTY:

Ref: 020 Part #: 15461-51010 Price: $1,772.65

Item: PUMP, INJ. ASSY

QTY:

Ref: 030 Part #: 19077-52123 Price: $6.90

Item: SHIM, INJ PUMP 0.30mm

QTY:

Ref: 040 Part #: 01123-50822 Price: $0.99

Item: BOLT M8x1.25x22 mm ***

QTY:

Ref: 050 Part #: 01513-50822 Price: $0.99

Item: STUD ***

QTY:

Ref: 060 Part #: 02156-50080 Price: $0.99

Item: NUT, HEX M8 -1.25 ***

QTY:

Ref: 070 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 080 Part #: 15748-60572 Price: $15.69

Item: ASSY ORIFICE

QTY:

Ref: 090 Part #: 15426-52850 Price: $6.27

Item: COVER

QTY:

Ref: 090 Part #: 06311-85020 Price: $2.04

Item: CAP, SEALING ***

QTY:

Ref: 100 Part #: 1A021-52140 Price: $1.24

Item: GASKET, FUEL PUMP N/A *

QTY:

Ref: 110 Part #: 01023-50616 Price: $0.99

Item: BOLT M6x1.0x16 mm ***

QTY:

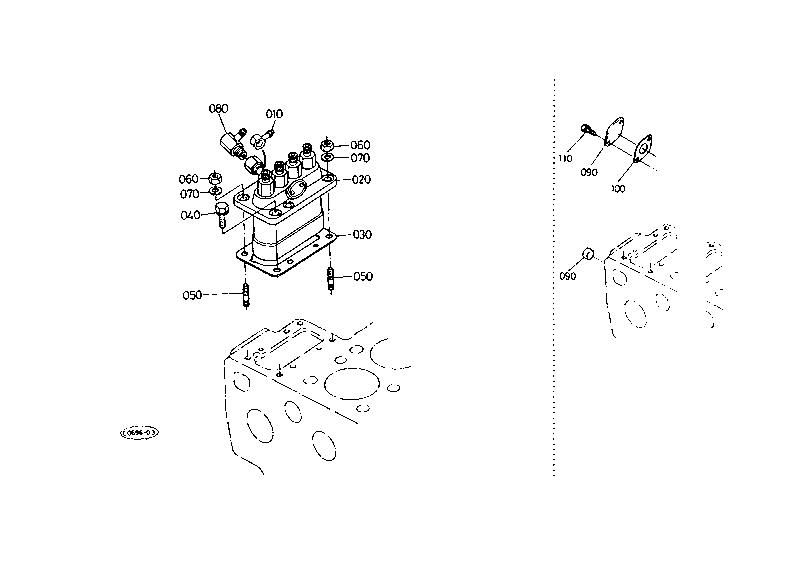

KUBOTA KX101 PARTS FUEL SYSTEM S01800 INJECTION PUMP CAMSHAFT (1)
