Ref	Part #	Item	Price
010	68741-74440	PIN *	$68.42
020	01173-71285	BOLT M12x1.25x85 mm	$1.95
030, 070	02174-70120	NUT *	$0.99
040	RC401-66750	PIN,BUCKET	$184.31
040	RC401-66750	PIN,BUCKET	$184.31
050	06611-15010	NIPPLE,GREASE	$2.34
060	01173-51200	BOLT M12x1.25x100 mm ***	$4.04
080	RD108-66800	ASSY BUCKET 650-600 ***	$2,893.96
080	RD108-68300	ASSY BUCKET 550-500 ***	$2,254.44
090	77700-03301	SHANK, CAST (ADAPTER) * *	$76.48
100	70090-33091	TOOTH, LONG HD 2 3/16 x 5 3/4 ***	$67.22
110	68000-31730	PLUG, RUBBER	$21.27
120	77700-03195	PIN, TOOTH ROLL 3/8 X 2 *	$8.08
130	68678-66200	ASSY CUTER,SIDE LH	$201.95
140	68678-66930	CUTTER,SIDE LH	$139.81
150, 190	01176-51635	BOLT	$1.65
160, 200	02076-70160	NUT	$2.23
170	68678-66300	ASSY CUTTER, SIDE RH	$196.06
180	68678-66940	CUTTER, SIDE RH	$139.81
210	RC401-66870	BUSH ***	$211.58
220	RC401-66880	PLATE	$26.42
230	01133-51025	BOLT M10x1.25x25 mm ***	$1.55
240	RC401-66890	SHIM	$5.10
240	RC401-66840	SHIM	$6.59
250	68761-66850	O-RING	$17.46
260	68131-67720	SHIM 1	$7.45
260	68131-67730	SHIM 2	$8.16

Ref: 010 Part #: 68741-74440 Price: $68.42

Item: PIN *

QTY:

Ref: 020 Part #: 01173-71285 Price: $1.95

Item: BOLT M12x1.25x85 mm

QTY:

Ref: 030070 Part #: 02174-70120 Price: $0.99

Item: NUT *

QTY:

Ref: 040 Part #: RC401-66750 Price: $184.31

Item: PIN,BUCKET

QTY:

Ref: 040 Part #: RC401-66750 Price: $184.31

Item: PIN,BUCKET

QTY:

Ref: 050 Part #: 06611-15010 Price: $2.34

Item: NIPPLE,GREASE

QTY:

Ref: 060 Part #: 01173-51200 Price: $4.04

Item: BOLT M12x1.25x100 mm ***

QTY:

Ref: 080 Part #: RD108-66800 Price: $2,893.96

Item: ASSY BUCKET 650-600 ***

QTY:

Ref: 080 Part #: RD108-68300 Price: $2,254.44

Item: ASSY BUCKET 550-500 ***

QTY:

Ref: 090 Part #: 77700-03301 Price: $76.48

Item: SHANK, CAST (ADAPTER) *** ***

QTY:

Ref: 100 Part #: 70090-33091 Price: $67.22

Item: TOOTH, LONG HD 2 3/16 x 5 3/4 ***

QTY:

Ref: 110 Part #: 68000-31730 Price: $21.27

Item: PLUG, RUBBER

QTY:

Ref: 120 Part #: 77700-03195 Price: $8.08

Item: PIN, TOOTH ROLL 3/8 X 2 *

QTY:

Ref: 130 Part #: 68678-66200 Price: $201.95

Item: ASSY CUTER,SIDE LH

QTY:

Ref: 140 Part #: 68678-66930 Price: $139.81

Item: CUTTER,SIDE LH

QTY:

Ref: 150190 Part #: 01176-51635 Price: $1.65

Item: BOLT

QTY:

Ref: 160200 Part #: 02076-70160 Price: $2.23

Item: NUT

QTY:

Ref: 170 Part #: 68678-66300 Price: $196.06

Item: ASSY CUTTER, SIDE RH

QTY:

Ref: 180 Part #: 68678-66940 Price: $139.81

Item: CUTTER, SIDE RH

QTY:

Ref: 210 Part #: RC401-66870 Price: $211.58

Item: BUSH ***

QTY:

Ref: 220 Part #: RC401-66880 Price: $26.42

Item: PLATE

QTY:

Ref: 230 Part #: 01133-51025 Price: $1.55

Item: BOLT M10x1.25x25 mm ***

QTY:

Ref: 240 Part #: RC401-66890 Price: $5.10

Item: SHIM

QTY:

Ref: 240 Part #: RC401-66840 Price: $6.59

Item: SHIM

QTY:

Ref: 250 Part #: 68761-66850 Price: $17.46

Item: O-RING

QTY:

Ref: 260 Part #: 68131-67720 Price: $7.45

Item: SHIM 1

QTY:

Ref: 260 Part #: 68131-67730 Price: $8.16

Item: SHIM 2

QTY:

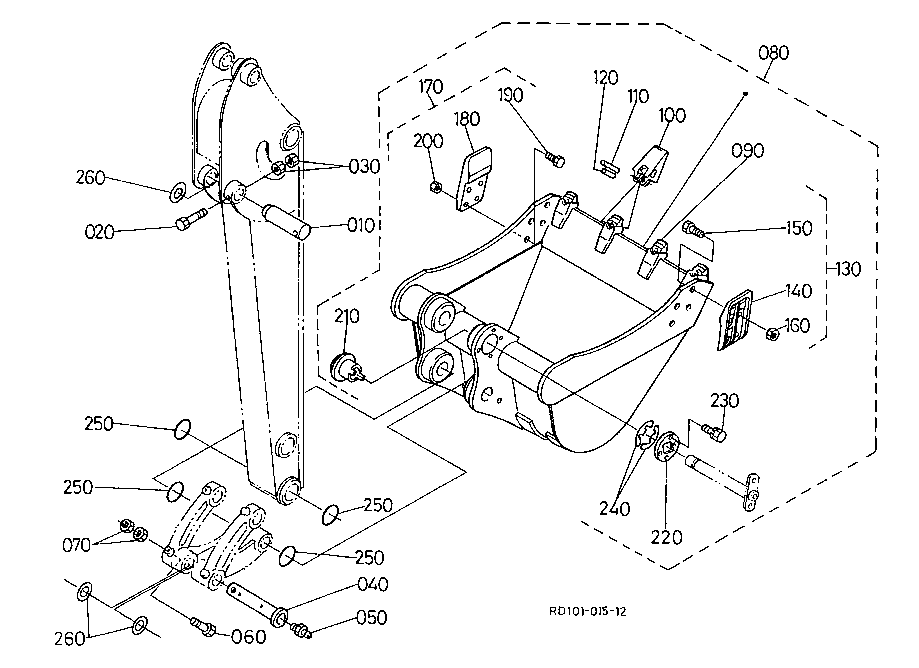

KUBOTA KX121 2 PARTS FRONT ATTACHMENTS S09200 BUCKET
