Ref	Part #	Item	Price
010	RD101-61112	ASSY PUMP, PISTON	$9,469.38
010	RD101-61112	ASSY PUMP, PISTON	$9,469.38
020	RD101-69030	PLATE, VALVE	$651.63
030	RD101-69040	PLATE THRUST ***	$614.21
040	RD101-69050	SHAFT ***	$871.77
050	RD101-69060	BEARING,NEEDLE ***	$280.60
060	RD101-69070	BEARING,NEEDLE	$301.29
065	RD101-69850	OIL SEAL	$86.71
066	RD101-69860	RING, SNAP (PUMP)	$15.06
070	RD101-69110	SEAT, SPRING	$10.08
080	RD101-69120	SEAT,SPRING	$9.88
090	RD101-69130	SEAT,SPRING	$10.08
100	RD201-69140	SET BOLT	$148.52
110	RD101-69150	SET SCREW	$9.88
120	RD201-69160	ASSY ROTOR	$459.32
130	RD201-69170	NUT	$29.04
140	RD201-69210	WASHER,THRUST	$14.17
150	68651-72380	PLUG	$33.48
160	RD101-69220	SET SCREW	$12.48
170	RD101-69240	BOLT	$16.42
180	RD101-69250	BOLT	$16.10
190	RD101-69280	SPRING	$229.72
200	RD101-69290	SPRING	$316.36
210	RD101-69310	PIN	$12.51
220	68493-71450	PIN,STRAIGHT	$10.10
222	04811-50700	O-RING	$2.41
224	04817-00080	O-RING	$1.49
226	04810-07310	O-RING	$1.86
228	04811-50850	O-RING ***	$5.59
230	RD101-69360	PIN, SPRING ***	$9.78
240	RD101-69390	COVER	$294.33
242	04817-00100	O-RING	$1.65
244	RD101-69440	GASKET	$90.41
260	RD101-69530	PIN,SPRING	$9.88
265	04817-00180	O-RING ***	$1.49
270	RD201-69540	COVER	$396.09
280	68701-71830	BOLT, SOCKET HEAD	$10.09
285	68311-72390	O-RING	$15.19
290	RD101-69560	WASHER,THRUST	$48.02
300	RD201-69580	PLATE,RODING ***	$192.39
310	RD101-69770	SPRING	$19.84
320	RD201-69620	POPPET	$60.54
330	RD201-69640	SHIM	$12.73
340	68671-69410	PLUG	$27.35
350	RD101-69720	ORIFICE	$31.86
360	RD101-69320	BUSH	$64.53
370	04817-00140	O-RING ***	$1.65
375	RD101-69480	O RING ***	$13.12
380	RD101-69730	NUT	$7.22
390	RD101-69420	PLUG	$30.51
400	RD101-69650	KIT, HYD PUMP SEAL ***	$207.73
410	RD101-69660	KIT SEALPORT BLOCK ***	$140.57
420	RD101-69710	KIT BODY	$2,406.87
430	RD101-69690	KIT BLOCK PORT	$2,236.71
440	RD101-69670	KIT SWASH PLATE ***	$871.77
450	RD101-69682	KIT BLOCK,CYLINDER	$2,300.30
460	01370-11230	BOLT	$7.22
470	04512-70120	WASHER,SPRING	$0.99

Ref: 010 Part #: RD101-61112 Price: $9,469.38

Item: ASSY PUMP, PISTON

QTY:

Ref: 010 Part #: RD101-61112 Price: $9,469.38

Item: ASSY PUMP, PISTON

QTY:

Ref: 020 Part #: RD101-69030 Price: $651.63

Item: PLATE, VALVE

QTY:

Ref: 030 Part #: RD101-69040 Price: $614.21

Item: PLATE THRUST ***

QTY:

Ref: 040 Part #: RD101-69050 Price: $871.77

Item: SHAFT ***

QTY:

Ref: 050 Part #: RD101-69060 Price: $280.60

Item: BEARING,NEEDLE ***

QTY:

Ref: 060 Part #: RD101-69070 Price: $301.29

Item: BEARING,NEEDLE

QTY:

Ref: 065 Part #: RD101-69850 Price: $86.71

Item: OIL SEAL

QTY:

Ref: 066 Part #: RD101-69860 Price: $15.06

Item: RING, SNAP (PUMP)

QTY:

Ref: 070 Part #: RD101-69110 Price: $10.08

Item: SEAT, SPRING

QTY:

Ref: 080 Part #: RD101-69120 Price: $9.88

Item: SEAT,SPRING

QTY:

Ref: 090 Part #: RD101-69130 Price: $10.08

Item: SEAT,SPRING

QTY:

Ref: 100 Part #: RD201-69140 Price: $148.52

Item: SET BOLT

QTY:

Ref: 110 Part #: RD101-69150 Price: $9.88

Item: SET SCREW

QTY:

Ref: 120 Part #: RD201-69160 Price: $459.32

Item: ASSY ROTOR

QTY:

Ref: 130 Part #: RD201-69170 Price: $29.04

Item: NUT

QTY:

Ref: 140 Part #: RD201-69210 Price: $14.17

Item: WASHER,THRUST

QTY:

Ref: 150 Part #: 68651-72380 Price: $33.48

Item: PLUG

QTY:

Ref: 160 Part #: RD101-69220 Price: $12.48

Item: SET SCREW

QTY:

Ref: 170 Part #: RD101-69240 Price: $16.42

Item: BOLT

QTY:

Ref: 180 Part #: RD101-69250 Price: $16.10

Item: BOLT

QTY:

Ref: 190 Part #: RD101-69280 Price: $229.72

Item: SPRING

QTY:

Ref: 200 Part #: RD101-69290 Price: $316.36

Item: SPRING

QTY:

Ref: 210 Part #: RD101-69310 Price: $12.51

Item: PIN

QTY:

Ref: 220 Part #: 68493-71450 Price: $10.10

Item: PIN,STRAIGHT

QTY:

Ref: 222 Part #: 04811-50700 Price: $2.41

Item: O-RING

QTY:

Ref: 224 Part #: 04817-00080 Price: $1.49

Item: O-RING

QTY:

Ref: 226 Part #: 04810-07310 Price: $1.86

Item: O-RING

QTY:

Ref: 228 Part #: 04811-50850 Price: $5.59

Item: O-RING ***

QTY:

Ref: 230 Part #: RD101-69360 Price: $9.78

Item: PIN, SPRING ***

QTY:

Ref: 240 Part #: RD101-69390 Price: $294.33

Item: COVER

QTY:

Ref: 242 Part #: 04817-00100 Price: $1.65

Item: O-RING

QTY:

Ref: 244 Part #: RD101-69440 Price: $90.41

Item: GASKET

QTY:

Ref: 260 Part #: RD101-69530 Price: $9.88

Item: PIN,SPRING

QTY:

Ref: 265 Part #: 04817-00180 Price: $1.49

Item: O-RING ***

QTY:

Ref: 270 Part #: RD201-69540 Price: $396.09

Item: COVER

QTY:

Ref: 280 Part #: 68701-71830 Price: $10.09

Item: BOLT, SOCKET HEAD

QTY:

Ref: 285 Part #: 68311-72390 Price: $15.19

Item: O-RING

QTY:

Ref: 290 Part #: RD101-69560 Price: $48.02

Item: WASHER,THRUST

QTY:

Ref: 300 Part #: RD201-69580 Price: $192.39

Item: PLATE,RODING ***

QTY:

Ref: 310 Part #: RD101-69770 Price: $19.84

Item: SPRING

QTY:

Ref: 320 Part #: RD201-69620 Price: $60.54

Item: POPPET

QTY:

Ref: 330 Part #: RD201-69640 Price: $12.73

Item: SHIM

QTY:

Ref: 340 Part #: 68671-69410 Price: $27.35

Item: PLUG

QTY:

Ref: 350 Part #: RD101-69720 Price: $31.86

Item: ORIFICE

QTY:

Ref: 360 Part #: RD101-69320 Price: $64.53

Item: BUSH

QTY:

Ref: 370 Part #: 04817-00140 Price: $1.65

Item: O-RING ***

QTY:

Ref: 375 Part #: RD101-69480 Price: $13.12

Item: O RING ***

QTY:

Ref: 380 Part #: RD101-69730 Price: $7.22

Item: NUT

QTY:

Ref: 390 Part #: RD101-69420 Price: $30.51

Item: PLUG

QTY:

Ref: 400 Part #: RD101-69650 Price: $207.73

Item: KIT, HYD PUMP SEAL ***

QTY:

Ref: 410 Part #: RD101-69660 Price: $140.57

Item: KIT SEALPORT BLOCK ***

QTY:

Ref: 420 Part #: RD101-69710 Price: $2,406.87

Item: KIT BODY

QTY:

Ref: 430 Part #: RD101-69690 Price: $2,236.71

Item: KIT BLOCK PORT

QTY:

Ref: 440 Part #: RD101-69670 Price: $871.77

Item: KIT SWASH PLATE ***

QTY:

Ref: 450 Part #: RD101-69682 Price: $2,300.30

Item: KIT BLOCK,CYLINDER

QTY:

Ref: 460 Part #: 01370-11230 Price: $7.22

Item: BOLT

QTY:

Ref: 470 Part #: 04512-70120 Price: $0.99

Item: WASHER,SPRING

QTY:

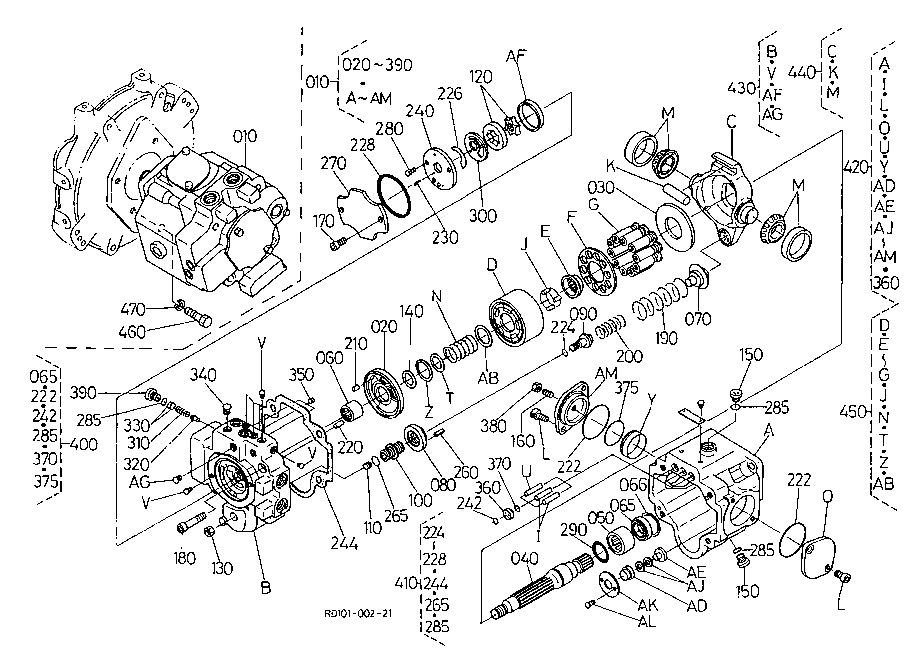

KUBOTA KX121 2 PARTS HYDRAULIC SYSTEM S03700 PISTON PUMP AND COMPONENT PARTS
