Ref	Part #	Item	Price
010	RD148-14430	SPROCKET,DRIVE	$436.53
020, 030	01128-51235	BOLT M12x1.75x35 mm	$2.27
040	RD128-92706	KIT, WHEEL MOTOR ***	$8,232.58
040	RD128-92706	KIT, WHEEL MOTOR ***	$8,232.58
060	08103-06005	BEARING, BALL	$8.85
070	RC401-73613	SHAFT, DRIVE MOTOR ***	$398.80
080	RC401-73820	SPRING	$5.55
085	RC401-73810	ASSY PISTON ***	$74.68
090	05012-00406	PIN, STRAIGHT	$0.99
100	01311-10645	BOLT,HEX SOC HD	$1.88
110	RC401-73770	WASHER	$9.89
115	RC401-73760	SPRING	$11.59
120	RC401-73780	WASHER	$9.89
130	04611-00320	CIR-CLIP, INTERNAL	$1.00
140	RC401-73710	PIN	$1.60
150	RC401-73730	PLATE, RETAINER	$70.09
160	RC401-73720	HOLDER, RETAINER ***	$60.54
180	68651-13630	PLUG	$7.45
190	68651-13330	BRGBALL RAD130/166.3	$704.18
200	68311-13340	NUT RING	$92.32
210	68311-13350	PLUG	$3.28
220	07715-03205	BALL, CAMSHAFT FUEL	$0.99
230	68311-13380	PLUG,PT 1/8"	$3.34
240	RC401-13430	PLATE	$3.28
250	01311-10840	BOLT	$2.60
260	68651-13420	COLLAR	$47.95
260	RC401-13420	COLLAR	$55.31
270	68651-13410	BEARING, ROLLER	$37.09
280	68651-13390	GEAR, PLANET	$168.63
290, 360	04612-00300	CIR-CLIP, EXTERNAL	$0.99
300	RC401-13460	GEAR	$92.13
310	04612-00350	CIR-CLIP, EXTERNAL	$1.32
330	68651-13510	BEARING NEEDLE ROLL	$27.69
340	RC501-13930	GEAR	$94.94
350	RC401-13470	PLATE	$3.18
370	RD101-13540	GEAR	$79.37
380	RC501-13550	PLATE THRUST C (2.0mm) ***	$37.09
380	RC501-13560	PLATE THRUST C (2.30mm)	$19.26
380	RC501-13570	PLATE	$49.53
380	RC501-13590	PLATE THRUST C (3.0mm)	$28.25
390	RC101-13580	COVER	$286.16
400	68311-13620	PLUT,PT 3/8"	$3.34
410	05411-00414	PIN, SPRING	$0.99
420	R1421-23590	PLUG, (R 1/2)	$4.20
430	RC401-73632	SEAL, OIL	$38.48
440	04811-51250	O RING	$6.04
450	RC101-13320	SEAL, FLOATING	$273.24
460	68311-13590	O-RING	$18.12
470	RD101-73950	ASSY, SWASH PLATE	$415.34
480	RC401-73940	BLOCK CYLINDER ASSY	$1,660.76
490	RC501-13940	HOLDER ASSY	$1,049.33
500	RC401-73930	CYLINDER ASSY ***	$2,321.88

Ref: 010 Part #: RD148-14430 Price: $436.53

Item: SPROCKET,DRIVE

QTY:

Ref: 020030 Part #: 01128-51235 Price: $2.27

Item: BOLT M12x1.75x35 mm

QTY:

Ref: 040 Part #: RD128-92706 Price: $8,232.58

Item: KIT, WHEEL MOTOR ***

QTY:

Ref: 040 Part #: RD128-92706 Price: $8,232.58

Item: KIT, WHEEL MOTOR ***

QTY:

Ref: 060 Part #: 08103-06005 Price: $8.85

Item: BEARING, BALL

QTY:

Ref: 070 Part #: RC401-73613 Price: $398.80

Item: SHAFT, DRIVE MOTOR ***

QTY:

Ref: 080 Part #: RC401-73820 Price: $5.55

Item: SPRING

QTY:

Ref: 085 Part #: RC401-73810 Price: $74.68

Item: ASSY PISTON ***

QTY:

Ref: 090 Part #: 05012-00406 Price: $0.99

Item: PIN, STRAIGHT

QTY:

Ref: 100 Part #: 01311-10645 Price: $1.88

Item: BOLT,HEX SOC HD

QTY:

Ref: 110 Part #: RC401-73770 Price: $9.89

Item: WASHER

QTY:

Ref: 115 Part #: RC401-73760 Price: $11.59

Item: SPRING

QTY:

Ref: 120 Part #: RC401-73780 Price: $9.89

Item: WASHER

QTY:

Ref: 130 Part #: 04611-00320 Price: $1.00

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 140 Part #: RC401-73710 Price: $1.60

Item: PIN

QTY:

Ref: 150 Part #: RC401-73730 Price: $70.09

Item: PLATE, RETAINER

QTY:

Ref: 160 Part #: RC401-73720 Price: $60.54

Item: HOLDER, RETAINER ***

QTY:

Ref: 180 Part #: 68651-13630 Price: $7.45

Item: PLUG

QTY:

Ref: 190 Part #: 68651-13330 Price: $704.18

Item: BRGBALL RAD130/166.3

QTY:

Ref: 200 Part #: 68311-13340 Price: $92.32

Item: NUT RING

QTY:

Ref: 210 Part #: 68311-13350 Price: $3.28

Item: PLUG

QTY:

Ref: 220 Part #: 07715-03205 Price: $0.99

Item: BALL, CAMSHAFT FUEL

QTY:

Ref: 230 Part #: 68311-13380 Price: $3.34

Item: PLUG,PT 1/8"

QTY:

Ref: 240 Part #: RC401-13430 Price: $3.28

Item: PLATE

QTY:

Ref: 250 Part #: 01311-10840 Price: $2.60

Item: BOLT

QTY:

Ref: 260 Part #: 68651-13420 Price: $47.95

Item: COLLAR

QTY:

Ref: 260 Part #: RC401-13420 Price: $55.31

Item: COLLAR

QTY:

Ref: 270 Part #: 68651-13410 Price: $37.09

Item: BEARING, ROLLER

QTY:

Ref: 280 Part #: 68651-13390 Price: $168.63

Item: GEAR, PLANET

QTY:

Ref: 290360 Part #: 04612-00300 Price: $0.99

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 300 Part #: RC401-13460 Price: $92.13

Item: GEAR

QTY:

Ref: 310 Part #: 04612-00350 Price: $1.32

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 330 Part #: 68651-13510 Price: $27.69

Item: BEARING NEEDLE ROLL

QTY:

Ref: 340 Part #: RC501-13930 Price: $94.94

Item: GEAR

QTY:

Ref: 350 Part #: RC401-13470 Price: $3.18

Item: PLATE

QTY:

Ref: 370 Part #: RD101-13540 Price: $79.37

Item: GEAR

QTY:

Ref: 380 Part #: RC501-13550 Price: $37.09

Item: PLATE THRUST C (2.0mm) ***

QTY:

Ref: 380 Part #: RC501-13560 Price: $19.26

Item: PLATE THRUST C (2.30mm)

QTY:

Ref: 380 Part #: RC501-13570 Price: $49.53

Item: PLATE

QTY:

Ref: 380 Part #: RC501-13590 Price: $28.25

Item: PLATE THRUST C (3.0mm)

QTY:

Ref: 390 Part #: RC101-13580 Price: $286.16

Item: COVER

QTY:

Ref: 400 Part #: 68311-13620 Price: $3.34

Item: PLUT,PT 3/8"

QTY:

Ref: 410 Part #: 05411-00414 Price: $0.99

Item: PIN, SPRING

QTY:

Ref: 420 Part #: R1421-23590 Price: $4.20

Item: PLUG, (R 1/2)

QTY:

Ref: 430 Part #: RC401-73632 Price: $38.48

Item: SEAL, OIL

QTY:

Ref: 440 Part #: 04811-51250 Price: $6.04

Item: O RING

QTY:

Ref: 450 Part #: RC101-13320 Price: $273.24

Item: SEAL, FLOATING

QTY:

Ref: 460 Part #: 68311-13590 Price: $18.12

Item: O-RING

QTY:

Ref: 470 Part #: RD101-73950 Price: $415.34

Item: ASSY, SWASH PLATE

QTY:

Ref: 480 Part #: RC401-73940 Price: $1,660.76

Item: BLOCK CYLINDER ASSY

QTY:

Ref: 490 Part #: RC501-13940 Price: $1,049.33

Item: HOLDER ASSY

QTY:

Ref: 500 Part #: RC401-73930 Price: $2,321.88

Item: CYLINDER ASSY ***

QTY:

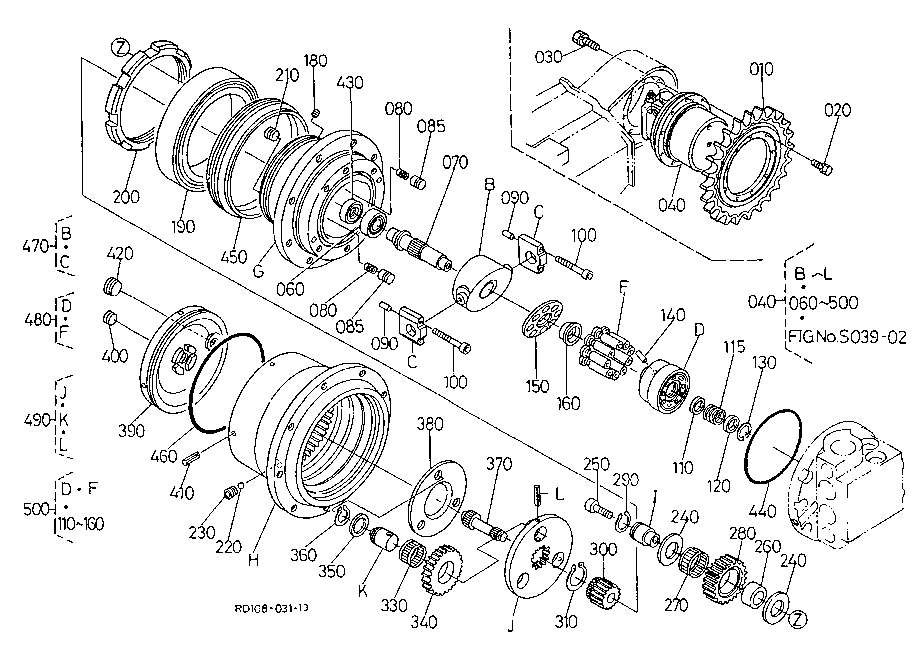

KUBOTA KX121 2 PARTS HYDRAULIC SYSTEM S039-1 DRIVE MOTOR AND COMPONENT PARTS (1)
