Ref	Part #	Item	Price
010	RD128-67800	ASSY CYLINDER	$2,556.49
020	RD128-94250	KIT TUBE, CYLINDER	$2,697.57
030	RD108-94230	KIT PISTON-ROD	$1,709.72
040	68311-71730	HEAD, CYLINDER	$612.12
050	RD201-71740	BUSH	$121.08
060	68371-92140	U-RING ***	$49.57
070	RP401-71640	RING, WIPER	$66.10
080	68591-67860	O-RING	$12.87
090	RP401-71610	RING BACK UP	$53.55
100	04811-50750	O-RING	$2.72
110	68869-93460	PISTON	$592.83
120	68741-71840	RING, SEAL	$78.30
130	68869-93470	RING SLIDE	$111.23
140	68493-67650	SCREW, SET	$14.60
150	68493-67670	BALL	$10.38
160	68351-67660	BUSH, PIN	$65.22
170	06616-35010	NIPPLE, GREASE	$2.49
180	68351-67770	BUSH, PIN	$56.72
190	06616-25010	NIPPLE , GREASE 1/8-27 NPTF ***	$1.72
200	RP401-71750	KIT,SEAL, HYD CYLINDER	$220.09
210	68741-66780	SEAL, DUST ***	$17.90
220	RD128-71780	ASSY PIPE	$547.19
230	RD128-71790	ASSY PIPE	$558.13
240	01053-51016	BOLT	$0.99
250	04011-50100	WASHER, PLAIN ***	$0.99

Ref: 010 Part #: RD128-67800 Price: $2,556.49

Item: ASSY CYLINDER

QTY:

Ref: 020 Part #: RD128-94250 Price: $2,697.57

Item: KIT TUBE, CYLINDER

QTY:

Ref: 030 Part #: RD108-94230 Price: $1,709.72

Item: KIT PISTON-ROD

QTY:

Ref: 040 Part #: 68311-71730 Price: $612.12

Item: HEAD, CYLINDER

QTY:

Ref: 050 Part #: RD201-71740 Price: $121.08

Item: BUSH

QTY:

Ref: 060 Part #: 68371-92140 Price: $49.57

Item: U-RING ***

QTY:

Ref: 070 Part #: RP401-71640 Price: $66.10

Item: RING, WIPER

QTY:

Ref: 080 Part #: 68591-67860 Price: $12.87

Item: O-RING

QTY:

Ref: 090 Part #: RP401-71610 Price: $53.55

Item: RING BACK UP

QTY:

Ref: 100 Part #: 04811-50750 Price: $2.72

Item: O-RING

QTY:

Ref: 110 Part #: 68869-93460 Price: $592.83

Item: PISTON

QTY:

Ref: 120 Part #: 68741-71840 Price: $78.30

Item: RING, SEAL

QTY:

Ref: 130 Part #: 68869-93470 Price: $111.23

Item: RING SLIDE

QTY:

Ref: 140 Part #: 68493-67650 Price: $14.60

Item: SCREW, SET

QTY:

Ref: 150 Part #: 68493-67670 Price: $10.38

Item: BALL

QTY:

Ref: 160 Part #: 68351-67660 Price: $65.22

Item: BUSH, PIN

QTY:

Ref: 170 Part #: 06616-35010 Price: $2.49

Item: NIPPLE, GREASE

QTY:

Ref: 180 Part #: 68351-67770 Price: $56.72

Item: BUSH, PIN

QTY:

Ref: 190 Part #: 06616-25010 Price: $1.72

Item: NIPPLE , GREASE 1/8-27 NPTF ***

QTY:

Ref: 200 Part #: RP401-71750 Price: $220.09

Item: KIT,SEAL, HYD CYLINDER

QTY:

Ref: 210 Part #: 68741-66780 Price: $17.90

Item: SEAL, DUST ***

QTY:

Ref: 220 Part #: RD128-71780 Price: $547.19

Item: ASSY PIPE

QTY:

Ref: 230 Part #: RD128-71790 Price: $558.13

Item: ASSY PIPE

QTY:

Ref: 240 Part #: 01053-51016 Price: $0.99

Item: BOLT

QTY:

Ref: 250 Part #: 04011-50100 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

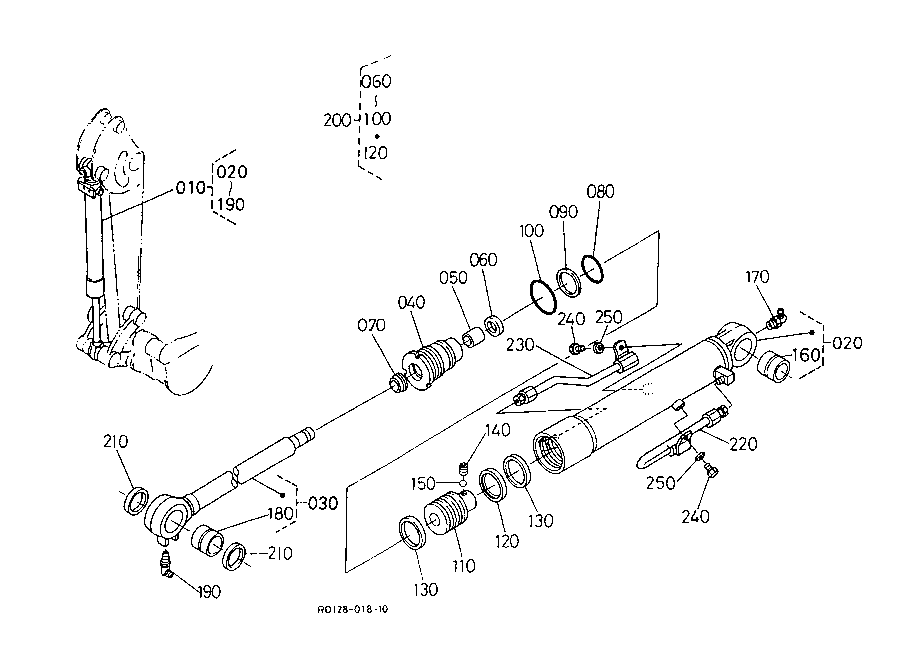

KUBOTA KX121 2(S SERIES) PARTS HYDRAULIC SYSTEM S08500 BUCKET CYLINDER AND COMPONENT PARTS
