Ref	Part #	Item	Price
010	RD158-21302	ASSY IDLER	$1,282.92
020	RC411-21320	BRACKET, LH	$177.78
030	RC411-21330	SHAFT, IDLER	$92.13
040	RD158-21340	IDLER	$792.13
050	68221-14630	SEAL, FLOATING	$66.14
060	RD148-21360	BUSHING *	$26.22
070	04816-50300	O-RING *	$2.08
080	05411-01080	PIN, SPRING	$3.52
090	RC411-21390	WIRE	$5.25
100	RC411-21370	BRACKET, RH	$177.78
105	15521-96020	PLUG *	$2.17
110	RD158-21382	PLATE,IDLER	$240.73
120	01133-71255	BOLT	$2.23
130	RC411-21506	ASSY CYLINDER LH	$739.88
140	RC411-21516	TUBE, CYLINDER LH	$432.61
150, 250	RC501-21570	ROD	$171.91
160, 260	RC461-21550	ASSY NIPPLE, IDLER	$58.12
170, 270	68371-21572	SPRING	$3.28
180, 280	RC101-21590	BALL	$1.70
190, 290	06611-15010	NIPPLE,GREASE	$2.34
200, 300	44312-23460	SEAL, DUST	$48.59
210, 310	04817-08500	O-RING	$6.34
220, 320	48100-15840	RING, BACK UP	$11.89
230	RC411-21606	ASSY CYLINDER RH	$739.88
240	RC411-21616	TUBE, CYLINDER RH	$426.99
330	RD118-21403	ASSY SPRING	$651.63
340	RD118-21443	BOLT SPRING	$201.12
350	RD118-21433	RETAINER,SPRING	$89.31
360	RD411-21420	SPRING	$283.37
370	68111-21530	NUT,SLOTTED	$11.32
380	05511-50645	PIN, SPLIT	$0.99

Ref: 010 Part #: RD158-21302 Price: $1,282.92

Item: ASSY IDLER

QTY:

Ref: 020 Part #: RC411-21320 Price: $177.78

Item: BRACKET, LH

QTY:

Ref: 030 Part #: RC411-21330 Price: $92.13

Item: SHAFT, IDLER

QTY:

Ref: 040 Part #: RD158-21340 Price: $792.13

Item: IDLER

QTY:

Ref: 050 Part #: 68221-14630 Price: $66.14

Item: SEAL, FLOATING

QTY:

Ref: 060 Part #: RD148-21360 Price: $26.22

Item: BUSHING *

QTY:

Ref: 070 Part #: 04816-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 080 Part #: 05411-01080 Price: $3.52

Item: PIN, SPRING

QTY:

Ref: 090 Part #: RC411-21390 Price: $5.25

Item: WIRE

QTY:

Ref: 100 Part #: RC411-21370 Price: $177.78

Item: BRACKET, RH

QTY:

Ref: 105 Part #: 15521-96020 Price: $2.17

Item: PLUG *

QTY:

Ref: 110 Part #: RD158-21382 Price: $240.73

Item: PLATE,IDLER

QTY:

Ref: 120 Part #: 01133-71255 Price: $2.23

Item: BOLT

QTY:

Ref: 130 Part #: RC411-21506 Price: $739.88

Item: ASSY CYLINDER LH

QTY:

Ref: 140 Part #: RC411-21516 Price: $432.61

Item: TUBE, CYLINDER LH

QTY:

Ref: 150250 Part #: RC501-21570 Price: $171.91

Item: ROD

QTY:

Ref: 160260 Part #: RC461-21550 Price: $58.12

Item: ASSY NIPPLE, IDLER

QTY:

Ref: 170270 Part #: 68371-21572 Price: $3.28

Item: SPRING

QTY:

Ref: 180280 Part #: RC101-21590 Price: $1.70

Item: BALL

QTY:

Ref: 190290 Part #: 06611-15010 Price: $2.34

Item: NIPPLE,GREASE

QTY:

Ref: 200300 Part #: 44312-23460 Price: $48.59

Item: SEAL, DUST

QTY:

Ref: 210310 Part #: 04817-08500 Price: $6.34

Item: O-RING

QTY:

Ref: 220320 Part #: 48100-15840 Price: $11.89

Item: RING, BACK UP

QTY:

Ref: 230 Part #: RC411-21606 Price: $739.88

Item: ASSY CYLINDER RH

QTY:

Ref: 240 Part #: RC411-21616 Price: $426.99

Item: TUBE, CYLINDER RH

QTY:

Ref: 330 Part #: RD118-21403 Price: $651.63

Item: ASSY SPRING

QTY:

Ref: 340 Part #: RD118-21443 Price: $201.12

Item: BOLT SPRING

QTY:

Ref: 350 Part #: RD118-21433 Price: $89.31

Item: RETAINER,SPRING

QTY:

Ref: 360 Part #: RD411-21420 Price: $283.37

Item: SPRING

QTY:

Ref: 370 Part #: 68111-21530 Price: $11.32

Item: NUT,SLOTTED

QTY:

Ref: 380 Part #: 05511-50645 Price: $0.99

Item: PIN, SPLIT

QTY:

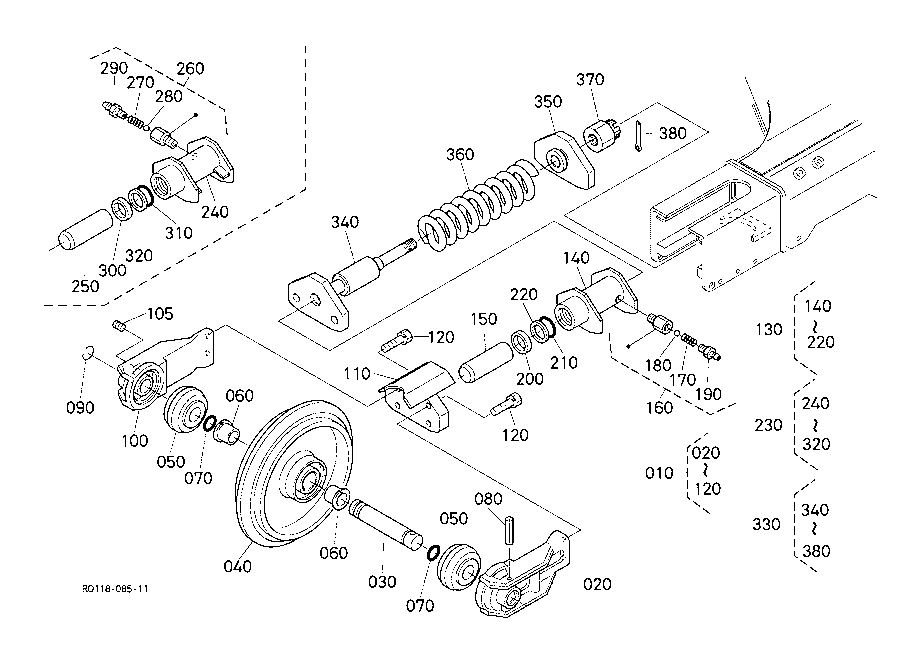

KUBOTA KX121 3S PARTS TRACK FRAME H10000 IDLER
