Ref	Part #	Item	Price
010	RD201-61110	PUMP, PISTON ASSY	$8,269.43
020	RD201-69010	BODY	$3,474.79
030	RD201-69740	BLOCK,PORT	$1,978.36
040	RD201-69030	PLATE,VALVE ***	$335.15
050	RD201-69040	PLATE, VALVE	$352.10
060	RD201-69050	SHAFT ***	$1,169.02
070	RD201-69060	BEARING ***	$145.47
080	RD201-69070	BEARING	$142.62
090	RD201-69750	OIL SEAL	$231.54
100	RD201-69080	PIN	$106.99
110	RD201-69090	PIN	$9.89
120	RD201-69110	SEAT,SPRING	$205.56
130	RD201-69760	SEAT,SPRING	$160.94
140	RD201-69130	SEAT,SPRING	$115.25
150	RD201-69140	SET BOLT	$148.52
160	RD201-69150	SET SCREW	$16.90
170	RD201-69160	ASSY ROTOR	$459.32
180	RD201-69170	NUT	$29.04
190	RD201-69180	BOLT	$16.92
200	RD201-69190	WASHER	$4.95
210	RD201-69210	WASHER,THRUST	$14.17
220, 530	RD201-69220	RING, SNAP (PUMP)	$10.10
230	68493-71850	SPRING ***	$12.73
240	68651-72380	PLUG	$33.48
250	RD201-69230	BEARING	$161.35
260	RD201-69240	BOLT,SOCKET HEAD	$8.50
270	RD201-69250	BOLT	$16.42
280	RD201-69260	BOLT	$16.42
290	RD201-69270	SPRING	$42.12
300	RD201-69280	SPRING ***	$261.86
310	RD201-69290	SPRING	$229.72
320	RD201-69310	PIN,SPRING	$5.39
330	68493-71450	PIN,STRAIGHT	$10.10
340	RD201-69320	BUSH	$68.84
350	RD201-69330	COVER	$459.32
360	04811-50700	O-RING	$2.41
370	04817-00080	O-RING	$1.49
380	RD201-69360	PIN,SPRING	$5.39
390	04817-07310	O-RING	$2.30
400	04811-50850	O-RING ***	$5.59
410	RD201-69380	HOLDER	$25.64
420	RD201-69390	COVER ***	$437.19
430	RD201-69410	PIN	$37.41
440	RD201-69420	PLUG	$16.90
450	RD201-69430	RING,BUCK UP	$8.75
460	04817-00070	O-RING	$1.65
470	RD201-69440	GASKET	$56.50
480	RD201-69450	COVER	$459.32
490	RD201-69460	SET SCREW ***	$19.84
500	RD201-69470	NUT	$10.08
510	RD201-69480	O-RING ***	$11.65
510	04817-00380	O-RING	$2.37
520	RD201-69490	BUSH	$171.87
570	04816-00180	O-RING	$1.32
580	RD201-69540	COVER	$396.09
590	RD201-69550	BOLT	$26.46
600	68311-72390	O-RING	$15.19
610	RD201-69560	WASHER,THRUST	$10.10
620	RD201-69572	COLLAR	$165.00
630	68671-69410	PLUG	$27.35
640	RD201-69780	PLATE	$357.55
650	RD201-69590	STOPPER	$105.95
660	RD201-69610	SPRING ***	$12.73
670	RD201-69620	POPPET	$60.54
680	RD201-69630	PLUG	$47.95
690	04817-00140	O-RING ***	$1.65
700	RD201-69640	SHIM	$12.73
710	RD201-69650	KIT SEAL, BODY ***	$170.05
720	RD201-69660	KIT SEAL, PORT BLOCK ***	$295.88
730	RD201-69670	KIT SWASH PLATE	$1,314.93
740, 760	RD201-69680	KIT, CYLINDER BLOCK	$2,029.73
750	RD201-69690	KIT PLATE,RETAINER	$833.36

Ref: 010 Part #: RD201-61110 Price: $8,269.43

Item: PUMP, PISTON ASSY

QTY:

Ref: 020 Part #: RD201-69010 Price: $3,474.79

Item: BODY

QTY:

Ref: 030 Part #: RD201-69740 Price: $1,978.36

Item: BLOCK,PORT

QTY:

Ref: 040 Part #: RD201-69030 Price: $335.15

Item: PLATE,VALVE ***

QTY:

Ref: 050 Part #: RD201-69040 Price: $352.10

Item: PLATE, VALVE

QTY:

Ref: 060 Part #: RD201-69050 Price: $1,169.02

Item: SHAFT ***

QTY:

Ref: 070 Part #: RD201-69060 Price: $145.47

Item: BEARING ***

QTY:

Ref: 080 Part #: RD201-69070 Price: $142.62

Item: BEARING

QTY:

Ref: 090 Part #: RD201-69750 Price: $231.54

Item: OIL SEAL

QTY:

Ref: 100 Part #: RD201-69080 Price: $106.99

Item: PIN

QTY:

Ref: 110 Part #: RD201-69090 Price: $9.89

Item: PIN

QTY:

Ref: 120 Part #: RD201-69110 Price: $205.56

Item: SEAT,SPRING

QTY:

Ref: 130 Part #: RD201-69760 Price: $160.94

Item: SEAT,SPRING

QTY:

Ref: 140 Part #: RD201-69130 Price: $115.25

Item: SEAT,SPRING

QTY:

Ref: 150 Part #: RD201-69140 Price: $148.52

Item: SET BOLT

QTY:

Ref: 160 Part #: RD201-69150 Price: $16.90

Item: SET SCREW

QTY:

Ref: 170 Part #: RD201-69160 Price: $459.32

Item: ASSY ROTOR

QTY:

Ref: 180 Part #: RD201-69170 Price: $29.04

Item: NUT

QTY:

Ref: 190 Part #: RD201-69180 Price: $16.92

Item: BOLT

QTY:

Ref: 200 Part #: RD201-69190 Price: $4.95

Item: WASHER

QTY:

Ref: 210 Part #: RD201-69210 Price: $14.17

Item: WASHER,THRUST

QTY:

Ref: 220530 Part #: RD201-69220 Price: $10.10

Item: RING, SNAP (PUMP)

QTY:

Ref: 230 Part #: 68493-71850 Price: $12.73

Item: SPRING ***

QTY:

Ref: 240 Part #: 68651-72380 Price: $33.48

Item: PLUG

QTY:

Ref: 250 Part #: RD201-69230 Price: $161.35

Item: BEARING

QTY:

Ref: 260 Part #: RD201-69240 Price: $8.50

Item: BOLT,SOCKET HEAD

QTY:

Ref: 270 Part #: RD201-69250 Price: $16.42

Item: BOLT

QTY:

Ref: 280 Part #: RD201-69260 Price: $16.42

Item: BOLT

QTY:

Ref: 290 Part #: RD201-69270 Price: $42.12

Item: SPRING

QTY:

Ref: 300 Part #: RD201-69280 Price: $261.86

Item: SPRING ***

QTY:

Ref: 310 Part #: RD201-69290 Price: $229.72

Item: SPRING

QTY:

Ref: 320 Part #: RD201-69310 Price: $5.39

Item: PIN,SPRING

QTY:

Ref: 330 Part #: 68493-71450 Price: $10.10

Item: PIN,STRAIGHT

QTY:

Ref: 340 Part #: RD201-69320 Price: $68.84

Item: BUSH

QTY:

Ref: 350 Part #: RD201-69330 Price: $459.32

Item: COVER

QTY:

Ref: 360 Part #: 04811-50700 Price: $2.41

Item: O-RING

QTY:

Ref: 370 Part #: 04817-00080 Price: $1.49

Item: O-RING

QTY:

Ref: 380 Part #: RD201-69360 Price: $5.39

Item: PIN,SPRING

QTY:

Ref: 390 Part #: 04817-07310 Price: $2.30

Item: O-RING

QTY:

Ref: 400 Part #: 04811-50850 Price: $5.59

Item: O-RING ***

QTY:

Ref: 410 Part #: RD201-69380 Price: $25.64

Item: HOLDER

QTY:

Ref: 420 Part #: RD201-69390 Price: $437.19

Item: COVER ***

QTY:

Ref: 430 Part #: RD201-69410 Price: $37.41

Item: PIN

QTY:

Ref: 440 Part #: RD201-69420 Price: $16.90

Item: PLUG

QTY:

Ref: 450 Part #: RD201-69430 Price: $8.75

Item: RING,BUCK UP

QTY:

Ref: 460 Part #: 04817-00070 Price: $1.65

Item: O-RING

QTY:

Ref: 470 Part #: RD201-69440 Price: $56.50

Item: GASKET

QTY:

Ref: 480 Part #: RD201-69450 Price: $459.32

Item: COVER

QTY:

Ref: 490 Part #: RD201-69460 Price: $19.84

Item: SET SCREW ***

QTY:

Ref: 500 Part #: RD201-69470 Price: $10.08

Item: NUT

QTY:

Ref: 510 Part #: RD201-69480 Price: $11.65

Item: O-RING ***

QTY:

Ref: 510 Part #: 04817-00380 Price: $2.37

Item: O-RING

QTY:

Ref: 520 Part #: RD201-69490 Price: $171.87

Item: BUSH

QTY:

Ref: 570 Part #: 04816-00180 Price: $1.32

Item: O-RING

QTY:

Ref: 580 Part #: RD201-69540 Price: $396.09

Item: COVER

QTY:

Ref: 590 Part #: RD201-69550 Price: $26.46

Item: BOLT

QTY:

Ref: 600 Part #: 68311-72390 Price: $15.19

Item: O-RING

QTY:

Ref: 610 Part #: RD201-69560 Price: $10.10

Item: WASHER,THRUST

QTY:

Ref: 620 Part #: RD201-69572 Price: $165.00

Item: COLLAR

QTY:

Ref: 630 Part #: 68671-69410 Price: $27.35

Item: PLUG

QTY:

Ref: 640 Part #: RD201-69780 Price: $357.55

Item: PLATE

QTY:

Ref: 650 Part #: RD201-69590 Price: $105.95

Item: STOPPER

QTY:

Ref: 660 Part #: RD201-69610 Price: $12.73

Item: SPRING ***

QTY:

Ref: 670 Part #: RD201-69620 Price: $60.54

Item: POPPET

QTY:

Ref: 680 Part #: RD201-69630 Price: $47.95

Item: PLUG

QTY:

Ref: 690 Part #: 04817-00140 Price: $1.65

Item: O-RING ***

QTY:

Ref: 700 Part #: RD201-69640 Price: $12.73

Item: SHIM

QTY:

Ref: 710 Part #: RD201-69650 Price: $170.05

Item: KIT SEAL, BODY ***

QTY:

Ref: 720 Part #: RD201-69660 Price: $295.88

Item: KIT SEAL, PORT BLOCK ***

QTY:

Ref: 730 Part #: RD201-69670 Price: $1,314.93

Item: KIT SWASH PLATE

QTY:

Ref: 740760 Part #: RD201-69680 Price: $2,029.73

Item: KIT, CYLINDER BLOCK

QTY:

Ref: 750 Part #: RD201-69690 Price: $833.36

Item: KIT PLATE,RETAINER

QTY:

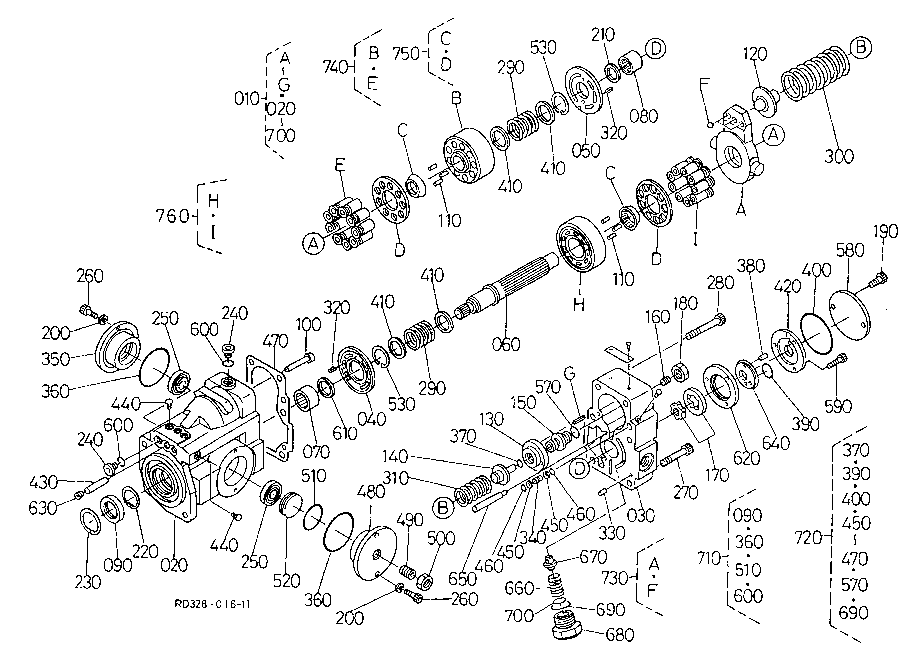

KUBOTA KX161 2(S SERIES) PARTS HYDRAULIC SYSTEM S03800 PISTON PUMP AND COMPONENT PARTS
