Ref	Part #	Item	Price
010	1G820-04021	COMP.CASE,GEAR S/N <=4K2137	Call for price
010	1G820-04022	COMP GEAR CASE	$821.91
010	1G820-04024	COMP GEARCASE	$837.87
020	15521-96030	PLUG, THREADED *	$2.07
030	1G820-56281	STAY,START SPRING S/N <=4K2137	Call for price
030	1G820-56282	STAY, START SPRING	$33.60
035	16861-93310	SCREW	$0.99
040	15241-32290	JOINT, PIPE	$19.62
050	15841-94010	WASHER, PLAIN	$0.99
060	16851-36950	SPRING	$1.63
070	15841-36930	SEAT, VALVE	$7.89
080	07715-03211	BALL (CREEP SPEED KIT COMPONENT)	$0.99
100	1E125-04130	GASKET, GEAR CASE	$20.20
100	1E125-04131	GASKET,GEAR CASE S/N >=4Y0001	Call for price
100	1G820-04130	GASKET, GEARCASE	$22.08
110	01023-50618	BOLT M6x1.0x18 mm ***	$0.99
110	01754-50616	BOLT M6x1.0x16 mm ***	$1.55
120	01023-50650	BOLT M6x1.0x50 mm ***	$1.44
130	15841-91010	BOLT	$1.24
140	01023-50680	BOLT ***	$1.83
150	01023-50690	BOLT ***	$2.26
160	04814-06130	O RING	$2.23
170	15877-04140	SEAL, OIL *	$13.40
180	HH1J0-32430	FILTER, OIL CARTRIDGE ***	$12.31
180	HH1J0-32430	FILTER, OIL CARTRIDGE ***	$12.31
190	1G171-59660	SENSOR(REVOLUTION)	$73.86
200	01023-50616	BOLT M6x1.0x16 mm ***	$0.99

Ref: 010 Part #: 1G820-04021 Price: Call for price

Item: COMP.CASE,GEAR S/N <=4K2137

QTY:

Ref: 010 Part #: 1G820-04022 Price: $821.91

Item: COMP GEAR CASE

QTY:

Ref: 010 Part #: 1G820-04024 Price: $837.87

Item: COMP GEARCASE

QTY:

Ref: 020 Part #: 15521-96030 Price: $2.07

Item: PLUG, THREADED *

QTY:

Ref: 030 Part #: 1G820-56281 Price: Call for price

Item: STAY,START SPRING S/N <=4K2137

QTY:

Ref: 030 Part #: 1G820-56282 Price: $33.60

Item: STAY, START SPRING

QTY:

Ref: 035 Part #: 16861-93310 Price: $0.99

Item: SCREW

QTY:

Ref: 040 Part #: 15241-32290 Price: $19.62

Item: JOINT, PIPE

QTY:

Ref: 050 Part #: 15841-94010 Price: $0.99

Item: WASHER, PLAIN

QTY:

Ref: 060 Part #: 16851-36950 Price: $1.63

Item: SPRING

QTY:

Ref: 070 Part #: 15841-36930 Price: $7.89

Item: SEAT, VALVE

QTY:

Ref: 080 Part #: 07715-03211 Price: $0.99

Item: BALL (CREEP SPEED KIT COMPONENT)

QTY:

Ref: 100 Part #: 1E125-04130 Price: $20.20

Item: GASKET, GEAR CASE

QTY:

Ref: 100 Part #: 1E125-04131 Price: Call for price

Item: GASKET,GEAR CASE S/N >=4Y0001

QTY:

Ref: 100 Part #: 1G820-04130 Price: $22.08

Item: GASKET, GEARCASE

QTY:

Ref: 110 Part #: 01023-50618 Price: $0.99

Item: BOLT M6x1.0x18 mm ***

QTY:

Ref: 110 Part #: 01754-50616 Price: $1.55

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 120 Part #: 01023-50650 Price: $1.44

Item: BOLT M6x1.0x50 mm ***

QTY:

Ref: 130 Part #: 15841-91010 Price: $1.24

Item: BOLT

QTY:

Ref: 140 Part #: 01023-50680 Price: $1.83

Item: BOLT ***

QTY:

Ref: 150 Part #: 01023-50690 Price: $2.26

Item: BOLT ***

QTY:

Ref: 160 Part #: 04814-06130 Price: $2.23

Item: O RING

QTY:

Ref: 170 Part #: 15877-04140 Price: $13.40

Item: SEAL, OIL *

QTY:

Ref: 180 Part #: HH1J0-32430 Price: $12.31

Item: FILTER, OIL CARTRIDGE ***

QTY:

Ref: 180 Part #: HH1J0-32430 Price: $12.31

Item: FILTER, OIL CARTRIDGE ***

QTY:

Ref: 190 Part #: 1G171-59660 Price: $73.86

Item: SENSOR(REVOLUTION)

QTY:

Ref: 200 Part #: 01023-50616 Price: $0.99

Item: BOLT M6x1.0x16 mm ***

QTY:

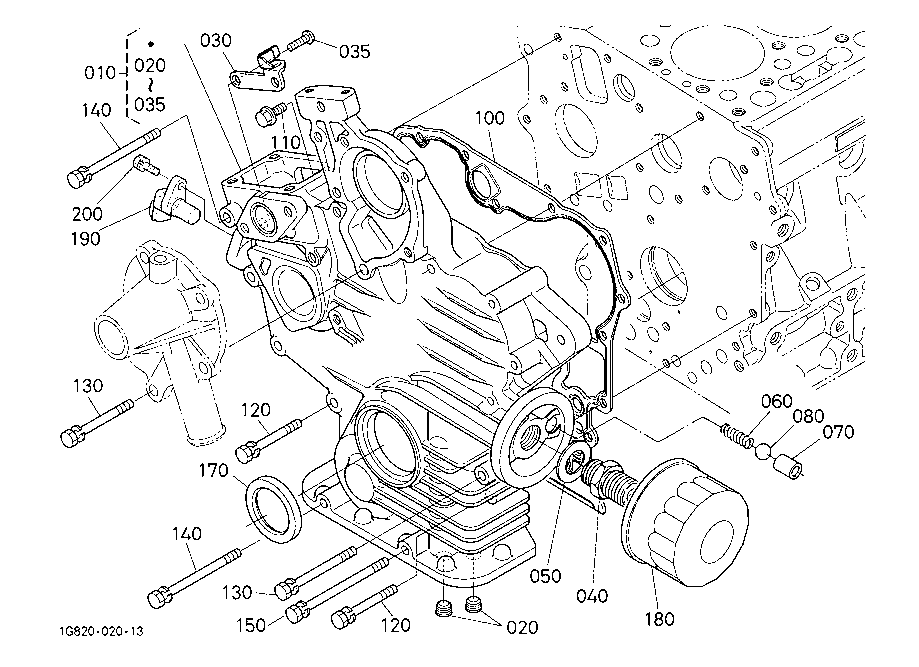

KUBOTA KX41 3 PARTS ENGINE 000400 GEAR CASE
