KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	RB238-66401	ASSY BRACKET,SWING S/N <=20212	Call for price
010	RB238-66406	ASSY BRACKET,SWING	$1,863.45
010	RB238-66403	ASSY BRACKET,SWING S/N >=40094	Call for price
010	RB238-66405	ASSY BRACKET,SWING S/N >=40304	Call for price
010	RB238-66406	ASSY BRACKET,SWING	$1,863.45
020	RB238-66590	BUSHING	$49.54
030	RB238-66370	BUSHING	$51.03
040	RB238-66390	BUSHING	$59.22
050	RB238-66380	BUSHING	$51.03
060	RB238-66462	BUSHING (SWING BRACKET)	$55.07
060	RB238-66462	BUSHING (SWING BRACKET)	$55.07
070	90545-11340	PLUG	$0.99
080	RB238-66450	PIN	$150.16
090, 095	RB238-66440	COLLAR, THRUST	$15.16
095	RB238-66480	COLLAR, THRUST	$11.29
095	RB238-66490	COLLAR, THRUST	$12.52
100	01173-51204	BOLT M12x1.25x120 mm ***	$3.37
110	02572-50120	NUT, SELF LOCKING ***	$4.13
120	RB238-67440	PIN	$70.56
130	RB238-67451	PLATE,KEY S/N <=30052	Call for price
130	RB238-67470	PLATE, KEY	$19.61
140	01133-51016	BOLT M10x1.25x16 mm ***	$1.31
140	01133-51016	BOLT M10x1.25x16 mm ***	$1.31
150	05411-00825	PIN, SPRING	$1.00
160	RB238-67460	PIN	$57.89
170	69181-66440	SPACER	$4.36
180	53582-53560	WASHER, CHAIN SHAFT	$1.20
190	01133-71020	BOLT M10x1.25x20 mm	$1.31
190	01133-51020	BOLT M10x1.25x20 mm ***	$1.44
200	68051-66330	SHIM,3 ***	$5.87
200	68051-66340	SHIM 4	$8.75
200	68721-66970	SHIM 0.5	$4.36

Ref: 010 Part #: RB238-66401 Price: Call for price

Item: ASSY BRACKET,SWING S/N <=20212

QTY:

Ref: 010 Part #: RB238-66406 Price: $1,863.45

Item: ASSY BRACKET,SWING

QTY:

Ref: 010 Part #: RB238-66403 Price: Call for price

Item: ASSY BRACKET,SWING S/N >=40094

QTY:

Ref: 010 Part #: RB238-66405 Price: Call for price

Item: ASSY BRACKET,SWING S/N >=40304

QTY:

Ref: 010 Part #: RB238-66406 Price: $1,863.45

Item: ASSY BRACKET,SWING

QTY:

Ref: 020 Part #: RB238-66590 Price: $49.54

Item: BUSHING

QTY:

Ref: 030 Part #: RB238-66370 Price: $51.03

Item: BUSHING

QTY:

Ref: 040 Part #: RB238-66390 Price: $59.22

Item: BUSHING

QTY:

Ref: 050 Part #: RB238-66380 Price: $51.03

Item: BUSHING

QTY:

Ref: 060 Part #: RB238-66462 Price: $55.07

Item: BUSHING (SWING BRACKET)

QTY:

Ref: 060 Part #: RB238-66462 Price: $55.07

Item: BUSHING (SWING BRACKET)

QTY:

Ref: 070 Part #: 90545-11340 Price: $0.99

Item: PLUG

QTY:

Ref: 080 Part #: RB238-66450 Price: $150.16

Item: PIN

QTY:

Ref: 090095 Part #: RB238-66440 Price: $15.16

Item: COLLAR, THRUST

QTY:

Ref: 095 Part #: RB238-66480 Price: $11.29

Item: COLLAR, THRUST

QTY:

Ref: 095 Part #: RB238-66490 Price: $12.52

Item: COLLAR, THRUST

QTY:

Ref: 100 Part #: 01173-51204 Price: $3.37

Item: BOLT M12x1.25x120 mm ***

QTY:

Ref: 110 Part #: 02572-50120 Price: $4.13

Item: NUT, SELF LOCKING ***

QTY:

Ref: 120 Part #: RB238-67440 Price: $70.56

Item: PIN

QTY:

Ref: 130 Part #: RB238-67451 Price: Call for price

Item: PLATE,KEY S/N <=30052

QTY:

Ref: 130 Part #: RB238-67470 Price: $19.61

Item: PLATE, KEY

QTY:

Ref: 140 Part #: 01133-51016 Price: $1.31

Item: BOLT M10x1.25x16 mm ***

QTY:

Ref: 140 Part #: 01133-51016 Price: $1.31

Item: BOLT M10x1.25x16 mm ***

QTY:

Ref: 150 Part #: 05411-00825 Price: $1.00

Item: PIN, SPRING

QTY:

Ref: 160 Part #: RB238-67460 Price: $57.89

Item: PIN

QTY:

Ref: 170 Part #: 69181-66440 Price: $4.36

Item: SPACER

QTY:

Ref: 180 Part #: 53582-53560 Price: $1.20

Item: WASHER, CHAIN SHAFT

QTY:

Ref: 190 Part #: 01133-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 190 Part #: 01133-51020 Price: $1.44

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 200 Part #: 68051-66330 Price: $5.87

Item: SHIM,3 ***

QTY:

Ref: 200 Part #: 68051-66340 Price: $8.75

Item: SHIM 4

QTY:

Ref: 200 Part #: 68721-66970 Price: $4.36

Item: SHIM 0.5

QTY:

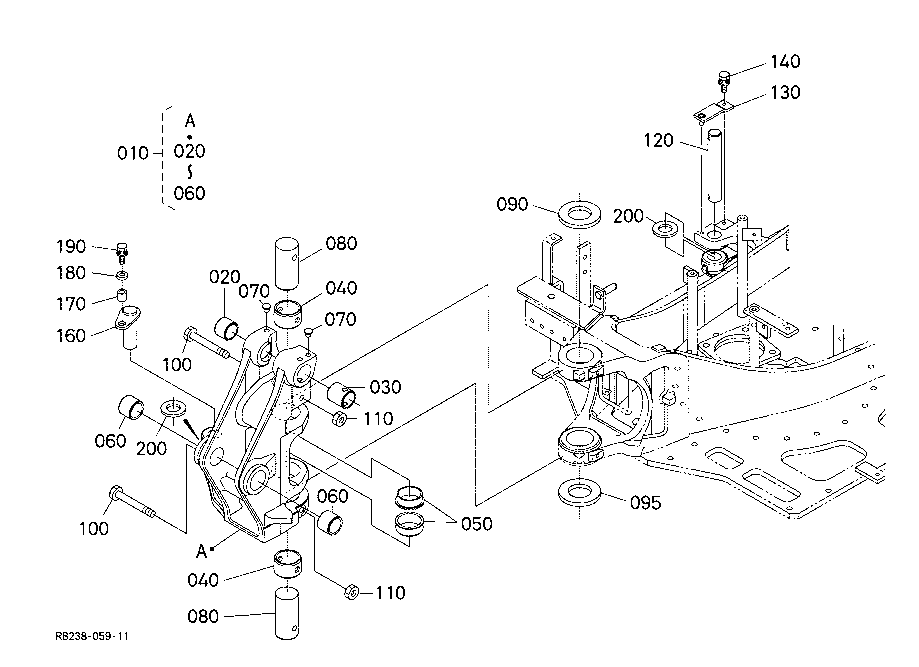

KUBOTA KX41 3 PARTS FRONT ATTACHMENTS G00000 SWING BRACKET
