KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	RC348-66773	PIN	$161.18
020, 140, 210	06611-15010	NIPPLE,GREASE	$2.34
030, 150	68271-42170	WASHER 1	$17.83
040, 160	01133-51630	BOLT M16x1.5x30 mm	$2.92
050	RC348-66700	ASSY LINK, BUCKET	$854.09
060	RC348-76150	BUSHING	$59.52
070	RD118-66640	COLLAR	$8.45
080	RC348-76240	BUSHING	$66.05
090, 100	RD118-66530	SEAL, DUST	$11.04
110	RC348-66723	LINK, BUCKET	$310.26
120	RC348-66734	LINK, BUCKET	$318.68
130	RC418-66770	PIN	$137.74
170	RC418-66760	PIN, BUCKET *	$130.08
180	01133-71225	BOLT M12x1.25x25 mm	$1.31
190	04015-70120	WASHER,PLAIN	$0.99
200	68741-66920	SPACER	$3.42
220	RC411-66942	SHIM	$5.12
220	RC411-66952	SHIM	$5.12

Ref: 010 Part #: RC348-66773 Price: $161.18

Item: PIN

QTY:

Ref: 020140210 Part #: 06611-15010 Price: $2.34

Item: NIPPLE,GREASE

QTY:

Ref: 030150 Part #: 68271-42170 Price: $17.83

Item: WASHER 1

QTY:

Ref: 040160 Part #: 01133-51630 Price: $2.92

Item: BOLT M16x1.5x30 mm

QTY:

Ref: 050 Part #: RC348-66700 Price: $854.09

Item: ASSY LINK, BUCKET

QTY:

Ref: 060 Part #: RC348-76150 Price: $59.52

Item: BUSHING

QTY:

Ref: 070 Part #: RD118-66640 Price: $8.45

Item: COLLAR

QTY:

Ref: 080 Part #: RC348-76240 Price: $66.05

Item: BUSHING

QTY:

Ref: 090100 Part #: RD118-66530 Price: $11.04

Item: SEAL, DUST

QTY:

Ref: 110 Part #: RC348-66723 Price: $310.26

Item: LINK, BUCKET

QTY:

Ref: 120 Part #: RC348-66734 Price: $318.68

Item: LINK, BUCKET

QTY:

Ref: 130 Part #: RC418-66770 Price: $137.74

Item: PIN

QTY:

Ref: 170 Part #: RC418-66760 Price: $130.08

Item: PIN, BUCKET *

QTY:

Ref: 180 Part #: 01133-71225 Price: $1.31

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 190 Part #: 04015-70120 Price: $0.99

Item: WASHER,PLAIN

QTY:

Ref: 200 Part #: 68741-66920 Price: $3.42

Item: SPACER

QTY:

Ref: 220 Part #: RC411-66942 Price: $5.12

Item: SHIM

QTY:

Ref: 220 Part #: RC411-66952 Price: $5.12

Item: SHIM

QTY:

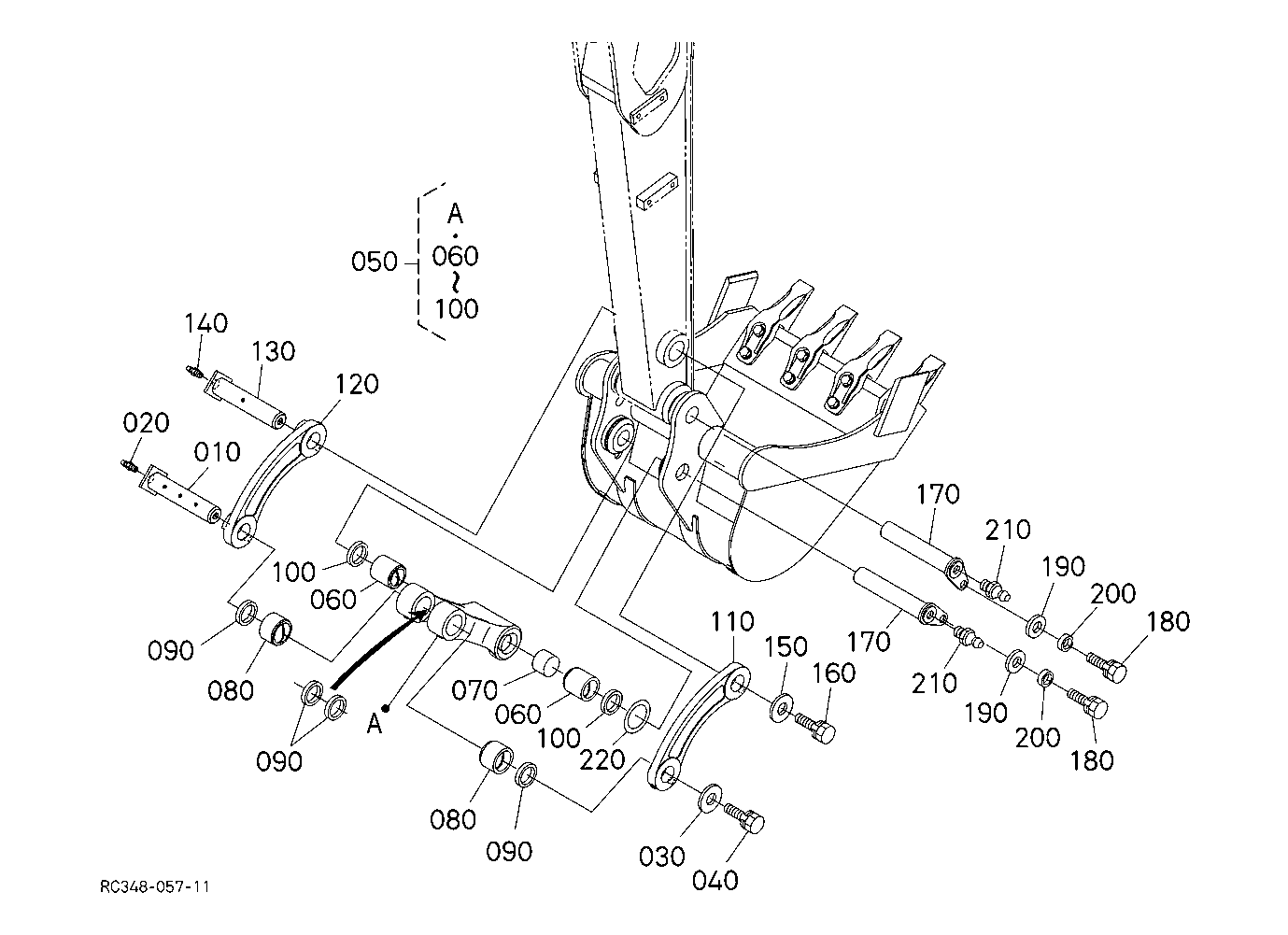

KUBOTA KX71 3 CANOPY PARTS FRONT ATTACHMENTS G30000 BUCKET LINK
