Ref	Part #	Item	Price
010	68398-41110	FRAME, SWING	$0.99
010	68398-41080	FRAME,SWING	$9,389.47
010	68328-41120	FRAME, SWING	$8,937.24
020	68311-41120	BUSH	$152.76
030	68311-41130	BUSH	$152.76
040	06616-35010	NIPPLE, GREASE	$2.49
050	68391-41370	GROMMET (215)	$2.10
060	68311-41330	GROMMET	$14.12
060	68311-41460	GROMMET ***	$14.12
070	68311-41360	GROMMET 4	$16.42
070	68311-41470	GROMMET	$16.40
080	68311-41480	GROMMET	$5.02
080	68311-41480	GROMMET	$5.02
090	68311-41340	GROMMET (4)	$7.22
100	68331-51430	GROMMET	$9.42
100	68311-41380	LABEL 1	$5.39
110	68551-51250	CUSHION	$2.44
120	68311-41160	STOPPER ***	$20.14
130	RD101-41180	PIN	$46.61
130	RD101-41180	PIN	$46.61
140	68391-41192	LEVER	$92.57
150	05515-51000	PIN, SNAP ***	$1.00
160	68398-41140	COVER 1	$296.77
170, 240, 310	01135-71020	BOLT M10x1.25x20 mm	$1.31
180	68741-66560	CAP	$8.45
190	68398-41210	FRAME,ARCH	$2,977.45
190	68398-41214	FRAME,ARCH	$2,977.45
190	68328-41220	FRAME,ARCH	$3,393.82
190	68328-41310	FRAME	$3,542.27
200	68318-41220	HINGE	$92.17
210	01133-71020	BOLT M10x1.25x20 mm	$1.31
220	01133-71225	BOLT M12x1.25x25 mm	$1.31
230	04013-70120	WASHER,PLAIN	$0.99
250	68318-41230	COVER	$83.03
250	68658-41230	COVER ***	$115.25
260	01133-51016	BOLT M10x1.25x16 mm ***	$1.31
270	68351-43220	CUSHION	$7.26
280	68773-42580	GROMMET	$3.23
290	68311-41280	TRIM (225)	$12.73
300	68311-41170	BRACKET	$57.06
320	68318-41410	COVER 3 ***	$108.90
330	01123-70816	BOLT M8x1.25x16 mm	$0.99
330	01123-70816	BOLT M8x1.25x16 mm	$0.99
330	01123-70820	BOLT M8x1.25x20 mm	$0.99
340	04512-70080	WASHER,SPRING	$0.99
350	68311-41250	SHIM	$3.12

Ref: 010 Part #: 68398-41110 Price: $0.99

Item: FRAME, SWING

QTY:

Ref: 010 Part #: 68398-41080 Price: $9,389.47

Item: FRAME,SWING

QTY:

Ref: 010 Part #: 68328-41120 Price: $8,937.24

Item: FRAME, SWING

QTY:

Ref: 020 Part #: 68311-41120 Price: $152.76

Item: BUSH

QTY:

Ref: 030 Part #: 68311-41130 Price: $152.76

Item: BUSH

QTY:

Ref: 040 Part #: 06616-35010 Price: $2.49

Item: NIPPLE, GREASE

QTY:

Ref: 050 Part #: 68391-41370 Price: $2.10

Item: GROMMET (215)

QTY:

Ref: 060 Part #: 68311-41330 Price: $14.12

Item: GROMMET

QTY:

Ref: 060 Part #: 68311-41460 Price: $14.12

Item: GROMMET ***

QTY:

Ref: 070 Part #: 68311-41360 Price: $16.42

Item: GROMMET 4

QTY:

Ref: 070 Part #: 68311-41470 Price: $16.40

Item: GROMMET

QTY:

Ref: 080 Part #: 68311-41480 Price: $5.02

Item: GROMMET

QTY:

Ref: 080 Part #: 68311-41480 Price: $5.02

Item: GROMMET

QTY:

Ref: 090 Part #: 68311-41340 Price: $7.22

Item: GROMMET (4)

QTY:

Ref: 100 Part #: 68331-51430 Price: $9.42

Item: GROMMET

QTY:

Ref: 100 Part #: 68311-41380 Price: $5.39

Item: LABEL 1

QTY:

Ref: 110 Part #: 68551-51250 Price: $2.44

Item: CUSHION

QTY:

Ref: 120 Part #: 68311-41160 Price: $20.14

Item: STOPPER ***

QTY:

Ref: 130 Part #: RD101-41180 Price: $46.61

Item: PIN

QTY:

Ref: 130 Part #: RD101-41180 Price: $46.61

Item: PIN

QTY:

Ref: 140 Part #: 68391-41192 Price: $92.57

Item: LEVER

QTY:

Ref: 150 Part #: 05515-51000 Price: $1.00

Item: PIN, SNAP ***

QTY:

Ref: 160 Part #: 68398-41140 Price: $296.77

Item: COVER 1

QTY:

Ref: 170240310 Part #: 01135-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 180 Part #: 68741-66560 Price: $8.45

Item: CAP

QTY:

Ref: 190 Part #: 68398-41210 Price: $2,977.45

Item: FRAME,ARCH

QTY:

Ref: 190 Part #: 68398-41214 Price: $2,977.45

Item: FRAME,ARCH

QTY:

Ref: 190 Part #: 68328-41220 Price: $3,393.82

Item: FRAME,ARCH

QTY:

Ref: 190 Part #: 68328-41310 Price: $3,542.27

Item: FRAME

QTY:

Ref: 200 Part #: 68318-41220 Price: $92.17

Item: HINGE

QTY:

Ref: 210 Part #: 01133-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 220 Part #: 01133-71225 Price: $1.31

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 230 Part #: 04013-70120 Price: $0.99

Item: WASHER,PLAIN

QTY:

Ref: 250 Part #: 68318-41230 Price: $83.03

Item: COVER

QTY:

Ref: 250 Part #: 68658-41230 Price: $115.25

Item: COVER ***

QTY:

Ref: 260 Part #: 01133-51016 Price: $1.31

Item: BOLT M10x1.25x16 mm ***

QTY:

Ref: 270 Part #: 68351-43220 Price: $7.26

Item: CUSHION

QTY:

Ref: 280 Part #: 68773-42580 Price: $3.23

Item: GROMMET

QTY:

Ref: 290 Part #: 68311-41280 Price: $12.73

Item: TRIM (225)

QTY:

Ref: 300 Part #: 68311-41170 Price: $57.06

Item: BRACKET

QTY:

Ref: 320 Part #: 68318-41410 Price: $108.90

Item: COVER 3 ***

QTY:

Ref: 330 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 330 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 330 Part #: 01123-70820 Price: $0.99

Item: BOLT M8x1.25x20 mm

QTY:

Ref: 340 Part #: 04512-70080 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 350 Part #: 68311-41250 Price: $3.12

Item: SHIM

QTY:

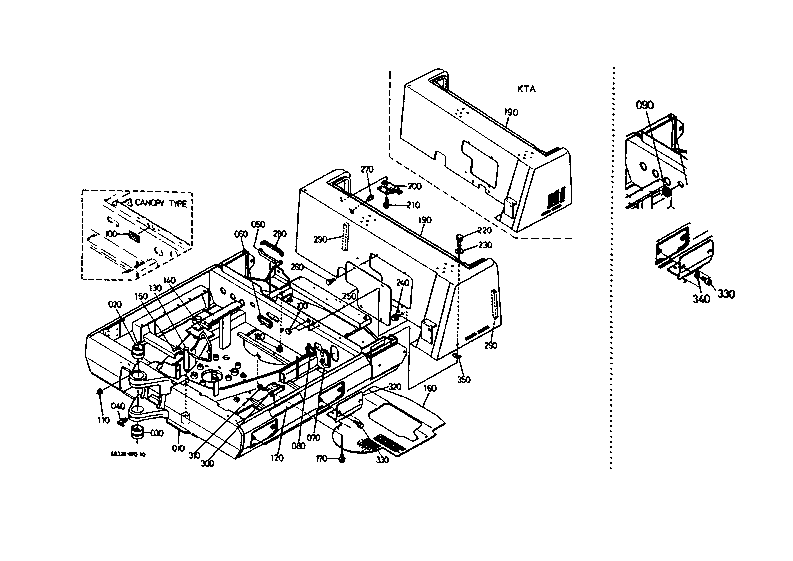

KUBOTA KX71 PARTS SWIVEL FRAME S14500 SWIVEL FRAME
