KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
001	37150-14120	HOUSING, CLUTCH	$3,453.41
002	32448-99030	GASKET NA	$18.60
003	06311-25010	PLUG	$2.34
004	04717-01000	WASHER, SEAL W/RUBBER	$1.49
005	34150-14260	PLUG, DRAIN *	$10.29
006	04717-02150	WASHER, SEAL w/RUBBER	$2.37
007	E9151-33140	PLUG, OIL FILLER *	$5.38
007	H3270-21410	PLUG	$26.03
008	04816-50300	O-RING *	$2.08
009	05012-01018	PIN, STRAIGHT	$1.00
009	37150-14150	PIN	$2.51
010	32210-27580	PLUG, BLIND	$1.39
011	01173-51070	BOLT M10x1.25x70 mm	$2.33
012	01173-51050	BOLT M10x1.25x50 mm	$1.82
013	01173-51040	BOLT M10x1.25x40 mm ***	$1.44
014	01173-51042	BOLT M10x1.25x42 mm	$1.55
015	35110-14180	STUD	$4.13
016	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
017	37150-14190	NUT	$2.60
018	34150-14160	COVER, HOUSING	$10.55
019	34150-14170	PACKING, HOUSING	$11.65
020	01123-70816	BOLT M8x1.25x16 mm	$0.99
021	35110-19830	NAMEPLATE,SERIAL # ***NSS	$4.48
022	34152-57920	RIVET	$0.99
023	37150-21210	COVER SPEED CHG	$419.90
024	32448-99080	GASKET NA	$15.86
025	34150-21250	PLUG, BLIND	$4.02
026	01153-50840	BOLT	$0.99
027	01153-50850	BOLT M8x1.25x50 mm	$1.68
028	04512-50080	WASHER, SPRING ***	$0.99
029	04717-00800	WASHER, w/RUBBER	$1.49
030	06312-10010	PLUG ***	$2.72
031	01153-50825	BOLT M8x1.25x25 mm ***	$1.17
032	02114-50080	NUT, HEX M8-1.25 4T ***	$0.99
033	34159-14150	SPACER	$296.58
033	38240-21150	SPACER	$305.67
033	38240-21150	SPACER	$305.67
034	31393-75420	PLUG	$1.72

Ref: 001 Part #: 37150-14120 Price: $3,453.41

Item: HOUSING, CLUTCH

QTY:

Ref: 002 Part #: 32448-99030 Price: $18.60

Item: GASKET NA

QTY:

Ref: 003 Part #: 06311-25010 Price: $2.34

Item: PLUG

QTY:

Ref: 004 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 005 Part #: 34150-14260 Price: $10.29

Item: PLUG, DRAIN *

QTY:

Ref: 006 Part #: 04717-02150 Price: $2.37

Item: WASHER, SEAL w/RUBBER

QTY:

Ref: 007 Part #: E9151-33140 Price: $5.38

Item: PLUG, OIL FILLER *

QTY:

Ref: 007 Part #: H3270-21410 Price: $26.03

Item: PLUG

QTY:

Ref: 008 Part #: 04816-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 009 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 009 Part #: 37150-14150 Price: $2.51

Item: PIN

QTY:

Ref: 010 Part #: 32210-27580 Price: $1.39

Item: PLUG, BLIND

QTY:

Ref: 011 Part #: 01173-51070 Price: $2.33

Item: BOLT M10x1.25x70 mm

QTY:

Ref: 012 Part #: 01173-51050 Price: $1.82

Item: BOLT M10x1.25x50 mm

QTY:

Ref: 013 Part #: 01173-51040 Price: $1.44

Item: BOLT M10x1.25x40 mm ***

QTY:

Ref: 014 Part #: 01173-51042 Price: $1.55

Item: BOLT M10x1.25x42 mm

QTY:

Ref: 015 Part #: 35110-14180 Price: $4.13

Item: STUD

QTY:

Ref: 016 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 017 Part #: 37150-14190 Price: $2.60

Item: NUT

QTY:

Ref: 018 Part #: 34150-14160 Price: $10.55

Item: COVER, HOUSING

QTY:

Ref: 019 Part #: 34150-14170 Price: $11.65

Item: PACKING, HOUSING

QTY:

Ref: 020 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 021 Part #: 35110-19830 Price: $4.48

Item: NAMEPLATE,SERIAL # ***NSS

QTY:

Ref: 022 Part #: 34152-57920 Price: $0.99

Item: RIVET

QTY:

Ref: 023 Part #: 37150-21210 Price: $419.90

Item: COVER SPEED CHG

QTY:

Ref: 024 Part #: 32448-99080 Price: $15.86

Item: GASKET NA

QTY:

Ref: 025 Part #: 34150-21250 Price: $4.02

Item: PLUG, BLIND

QTY:

Ref: 026 Part #: 01153-50840 Price: $0.99

Item: BOLT

QTY:

Ref: 027 Part #: 01153-50850 Price: $1.68

Item: BOLT M8x1.25x50 mm

QTY:

Ref: 028 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 029 Part #: 04717-00800 Price: $1.49

Item: WASHER, w/RUBBER

QTY:

Ref: 030 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 031 Part #: 01153-50825 Price: $1.17

Item: BOLT M8x1.25x25 mm ***

QTY:

Ref: 032 Part #: 02114-50080 Price: $0.99

Item: NUT, HEX M8-1.25 4T ***

QTY:

Ref: 033 Part #: 34159-14150 Price: $296.58

Item: SPACER

QTY:

Ref: 033 Part #: 38240-21150 Price: $305.67

Item: SPACER

QTY:

Ref: 033 Part #: 38240-21150 Price: $305.67

Item: SPACER

QTY:

Ref: 034 Part #: 31393-75420 Price: $1.72

Item: PLUG

QTY:

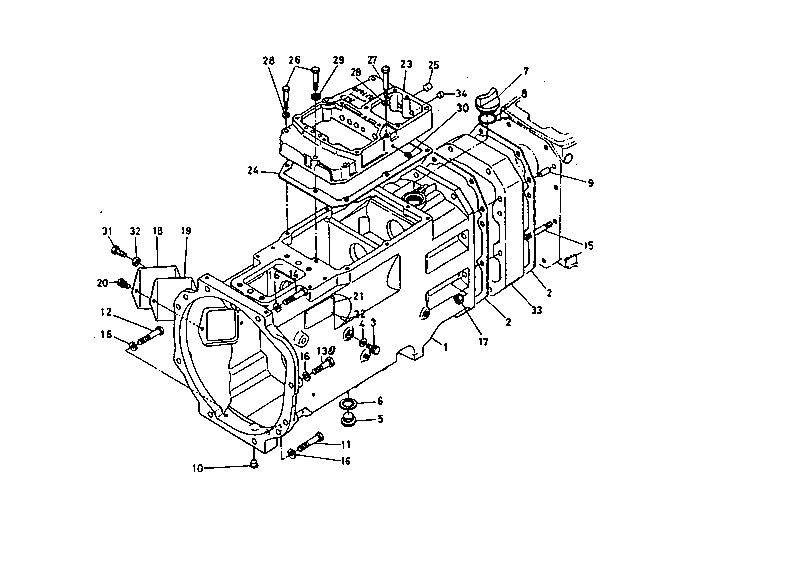

KUBOTA L185F PARTS CLUTCH 024000 CLUTCH HOUSING
