KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
001	H3520-99100	KIT STEERING	$1,248.94
001	H3520-99100	KIT STEERING	$1,248.94
001	H3520-99100	KIT STEERING	$1,248.94
002	35240-16110	GEARBOX, STEERING ***	$158.44
002	34150-16110	GEARBOX, STEERING ***	$475.65
003	34150-16120	SHAFT, SECTOR ***	$269.30
003	38180-16120	SHAFT, SECTOR *	$394.78
004	34150-16200	ASSY NUT, BALL *	$246.94
005	34150-16220	BEARING, BALL RADIAL 18/38	$26.59
006	34150-16310	COVER, GEARCASE REAR ***	$98.54
007	34150-16320	SHIM 1	$13.44
008	34150-16330	SHIM 2	$13.44
009	34150-16340	SHIM 3	$13.44
010	34150-16350	SHIM 4	$13.44
011	34150-16360	SHIM 5	$13.44
012	34150-16410	COVER, SIDE	$300.29
013	H3410-16420	GASKET STEERING, SIDE	$1.65
013	H3410-16420	GASKET STEERING, SIDE	$1.65
014	34150-16430	SCREW, ADJUSTING ***	$10.40
015	34150-16490	NUT**	$7.74
015	02116-50100	NUT, HEX M10 ***	$0.99
016	04714-00100	GASKET	$0.99
016	31351-16250	WASHER, SEAL	$3.83
017	61011-18140	PLUG, RUBBER	$1.72
018	34150-16440	COLLAR, ADJUSTING 1	$8.91
019	34150-16450	COLLAR, ADJUSTING 2	$5.98
020	34150-16460	COLLAR, ADJUSTING 3	$7.26
021	34150-16470	COLLAR, ADJUSTING 4	$5.98
022	34150-16480	COLLAR, ADJUSTING 4	$5.98
023	01153-50822	BOLT M8x1.25x22 mm ***	$1.04
024	04512-50080	WASHER, SPRING ***	$0.99
025	09500-26387	SEAL, OIL	$5.23
026	37300-16390	OIL SEAL ***	$16.57
027	02172-50200	NUT	$1.94
028	04512-70200	WASHER, SPRING ***	$0.99
029	06312-10020	PLUG ***	$3.34
030	34150-16510	COLUMN (POST), STEERING ***	$48.81
031	34150-16520	BUSHING	$15.41
031	32200-16490	SHIM**	$11.34
031	32200-16520	BUSHING	$20.34
032	05811-00519	KEY, WOODRUFF	$1.94
033	04512-50120	WASHER, SPRING LOCK ***	$1.70
034	37150-15990	NUT, STEERING ***	$0.99
035	37150-27370	PIN,STRAIGHT	$2.74
036	01173-51025	BOLT M10x1.25x25 mm ***	$0.99
037	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
038	H3711-16800	WHEEL,STEERING,ASSY	$871.33
040	H3710-16800	ASSY CAP	$67.55
040	H3710-16800	ASSY CAP	$67.55
041	37150-16850	POST HOLDER ***	$146.01
042	34159-16910	ARM, PITMAN ***	$143.25
043	35110-16540	LABEL **	$1.97
044	35240-16300	COMP COLUMN **	$81.65

Ref: 001 Part #: H3520-99100 Price: $1,248.94

Item: KIT STEERING

QTY:

Ref: 001 Part #: H3520-99100 Price: $1,248.94

Item: KIT STEERING

QTY:

Ref: 001 Part #: H3520-99100 Price: $1,248.94

Item: KIT STEERING

QTY:

Ref: 002 Part #: 35240-16110 Price: $158.44

Item: GEARBOX, STEERING ***

QTY:

Ref: 002 Part #: 34150-16110 Price: $475.65

Item: GEARBOX, STEERING ***

QTY:

Ref: 003 Part #: 34150-16120 Price: $269.30

Item: SHAFT, SECTOR ***

QTY:

Ref: 003 Part #: 38180-16120 Price: $394.78

Item: SHAFT, SECTOR *

QTY:

Ref: 004 Part #: 34150-16200 Price: $246.94

Item: ASSY NUT, BALL *

QTY:

Ref: 005 Part #: 34150-16220 Price: $26.59

Item: BEARING, BALL RADIAL 18/38

QTY:

Ref: 006 Part #: 34150-16310 Price: $98.54

Item: COVER, GEARCASE REAR ***

QTY:

Ref: 007 Part #: 34150-16320 Price: $13.44

Item: SHIM 1

QTY:

Ref: 008 Part #: 34150-16330 Price: $13.44

Item: SHIM 2

QTY:

Ref: 009 Part #: 34150-16340 Price: $13.44

Item: SHIM 3

QTY:

Ref: 010 Part #: 34150-16350 Price: $13.44

Item: SHIM 4

QTY:

Ref: 011 Part #: 34150-16360 Price: $13.44

Item: SHIM 5

QTY:

Ref: 012 Part #: 34150-16410 Price: $300.29

Item: COVER, SIDE

QTY:

Ref: 013 Part #: H3410-16420 Price: $1.65

Item: GASKET STEERING, SIDE

QTY:

Ref: 013 Part #: H3410-16420 Price: $1.65

Item: GASKET STEERING, SIDE

QTY:

Ref: 014 Part #: 34150-16430 Price: $10.40

Item: SCREW, ADJUSTING ***

QTY:

Ref: 015 Part #: 34150-16490 Price: $7.74

Item: NUT**

QTY:

Ref: 015 Part #: 02116-50100 Price: $0.99

Item: NUT, HEX M10 ***

QTY:

Ref: 016 Part #: 04714-00100 Price: $0.99

Item: GASKET

QTY:

Ref: 016 Part #: 31351-16250 Price: $3.83

Item: WASHER, SEAL

QTY:

Ref: 017 Part #: 61011-18140 Price: $1.72

Item: PLUG, RUBBER

QTY:

Ref: 018 Part #: 34150-16440 Price: $8.91

Item: COLLAR, ADJUSTING 1

QTY:

Ref: 019 Part #: 34150-16450 Price: $5.98

Item: COLLAR, ADJUSTING 2

QTY:

Ref: 020 Part #: 34150-16460 Price: $7.26

Item: COLLAR, ADJUSTING 3

QTY:

Ref: 021 Part #: 34150-16470 Price: $5.98

Item: COLLAR, ADJUSTING 4

QTY:

Ref: 022 Part #: 34150-16480 Price: $5.98

Item: COLLAR, ADJUSTING 4

QTY:

Ref: 023 Part #: 01153-50822 Price: $1.04

Item: BOLT M8x1.25x22 mm ***

QTY:

Ref: 024 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 025 Part #: 09500-26387 Price: $5.23

Item: SEAL, OIL

QTY:

Ref: 026 Part #: 37300-16390 Price: $16.57

Item: OIL SEAL ***

QTY:

Ref: 027 Part #: 02172-50200 Price: $1.94

Item: NUT

QTY:

Ref: 028 Part #: 04512-70200 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 029 Part #: 06312-10020 Price: $3.34

Item: PLUG ***

QTY:

Ref: 030 Part #: 34150-16510 Price: $48.81

Item: COLUMN (POST), STEERING ***

QTY:

Ref: 031 Part #: 34150-16520 Price: $15.41

Item: BUSHING

QTY:

Ref: 031 Part #: 32200-16490 Price: $11.34

Item: SHIM**

QTY:

Ref: 031 Part #: 32200-16520 Price: $20.34

Item: BUSHING

QTY:

Ref: 032 Part #: 05811-00519 Price: $1.94

Item: KEY, WOODRUFF

QTY:

Ref: 033 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 034 Part #: 37150-15990 Price: $0.99

Item: NUT, STEERING ***

QTY:

Ref: 035 Part #: 37150-27370 Price: $2.74

Item: PIN,STRAIGHT

QTY:

Ref: 036 Part #: 01173-51025 Price: $0.99

Item: BOLT M10x1.25x25 mm ***

QTY:

Ref: 037 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 038 Part #: H3711-16800 Price: $871.33

Item: WHEEL,STEERING,ASSY

QTY:

Ref: 040 Part #: H3710-16800 Price: $67.55

Item: ASSY CAP

QTY:

Ref: 040 Part #: H3710-16800 Price: $67.55

Item: ASSY CAP

QTY:

Ref: 041 Part #: 37150-16850 Price: $146.01

Item: POST HOLDER ***

QTY:

Ref: 042 Part #: 34159-16910 Price: $143.25

Item: ARM, PITMAN ***

QTY:

Ref: 043 Part #: 35110-16540 Price: $1.97

Item: LABEL **

QTY:

Ref: 044 Part #: 35240-16300 Price: $81.65

Item: COMP COLUMN **

QTY:

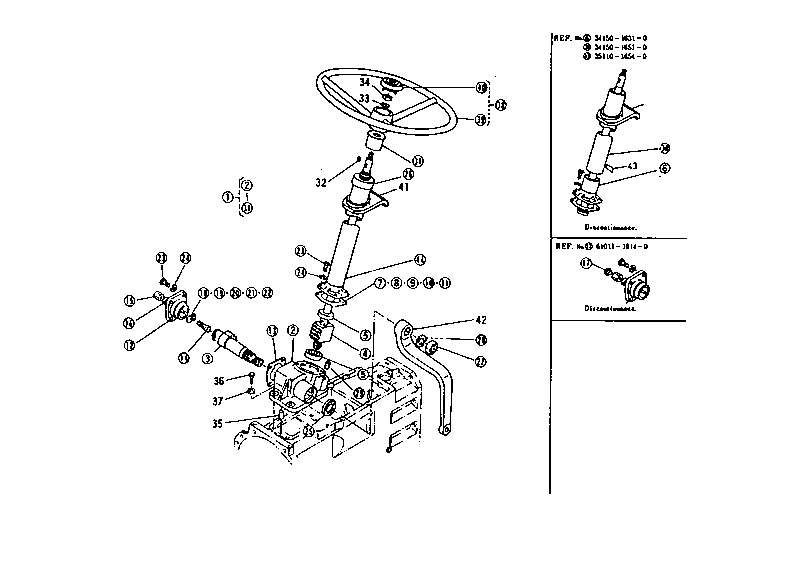

KUBOTA L185F PARTS STEERING 027000 STEERING
