Ref	Part #	Item	Price
001	32425-14150	GASKET	$15.25
002	35260-21153	MID CASE *****	$291.14
003	06311-45030	PLUG	$3.90
004	04717-01700	WASHER, w/RUBBER	$1.94
005	06311-25010	PLUG	$2.34
006	04717-01000	WASHER, SEAL W/RUBBER	$1.49
007	34150-14260	PLUG, DRAIN *	$10.29
008	04717-02150	WASHER, SEAL w/RUBBER	$2.37
009	H3270-21410	PLUG	$26.03
010	04816-50300	O-RING *	$2.08
011	38240-14210	OIL GAUGE	$14.86
012	05012-01018	PIN, STRAIGHT	$1.00
013	05012-01022	PIN, KNOCK	$1.00
014	32210-27580	PLUG, BLIND	$1.39
015	01173-51065	BOLT M10x1.25x65 mm ***	$2.21
016	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
017	01133-51040	BOLT M10x1.25x40 mm ***	$1.90
018	35260-14180	STUD	$7.98
019	04512-50120	WASHER, SPRING LOCK ***	$1.70
020	35340-27360	NUT	$1.74
021	34150-14160	COVER, HOUSING	$10.55
022	34150-14170	PACKING, HOUSING	$11.65
023	01123-70816	BOLT M8x1.25x16 mm	$0.99
024	01153-50825	BOLT M8x1.25x25 mm ***	$1.17
025	02114-50080	NUT, HEX M8-1.25 4T ***	$0.99

Ref: 001 Part #: 32425-14150 Price: $15.25

Item: GASKET

QTY:

Ref: 002 Part #: 35260-21153 Price: $291.14

Item: MID CASE *****

QTY:

Ref: 003 Part #: 06311-45030 Price: $3.90

Item: PLUG

QTY:

Ref: 004 Part #: 04717-01700 Price: $1.94

Item: WASHER, w/RUBBER

QTY:

Ref: 005 Part #: 06311-25010 Price: $2.34

Item: PLUG

QTY:

Ref: 006 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 007 Part #: 34150-14260 Price: $10.29

Item: PLUG, DRAIN *

QTY:

Ref: 008 Part #: 04717-02150 Price: $2.37

Item: WASHER, SEAL w/RUBBER

QTY:

Ref: 009 Part #: H3270-21410 Price: $26.03

Item: PLUG

QTY:

Ref: 010 Part #: 04816-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 011 Part #: 38240-14210 Price: $14.86

Item: OIL GAUGE

QTY:

Ref: 012 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 013 Part #: 05012-01022 Price: $1.00

Item: PIN, KNOCK

QTY:

Ref: 014 Part #: 32210-27580 Price: $1.39

Item: PLUG, BLIND

QTY:

Ref: 015 Part #: 01173-51065 Price: $2.21

Item: BOLT M10x1.25x65 mm ***

QTY:

Ref: 016 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 017 Part #: 01133-51040 Price: $1.90

Item: BOLT M10x1.25x40 mm ***

QTY:

Ref: 018 Part #: 35260-14180 Price: $7.98

Item: STUD

QTY:

Ref: 019 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 020 Part #: 35340-27360 Price: $1.74

Item: NUT

QTY:

Ref: 021 Part #: 34150-14160 Price: $10.55

Item: COVER, HOUSING

QTY:

Ref: 022 Part #: 34150-14170 Price: $11.65

Item: PACKING, HOUSING

QTY:

Ref: 023 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 024 Part #: 01153-50825 Price: $1.17

Item: BOLT M8x1.25x25 mm ***

QTY:

Ref: 025 Part #: 02114-50080 Price: $0.99

Item: NUT, HEX M8-1.25 4T ***

QTY:

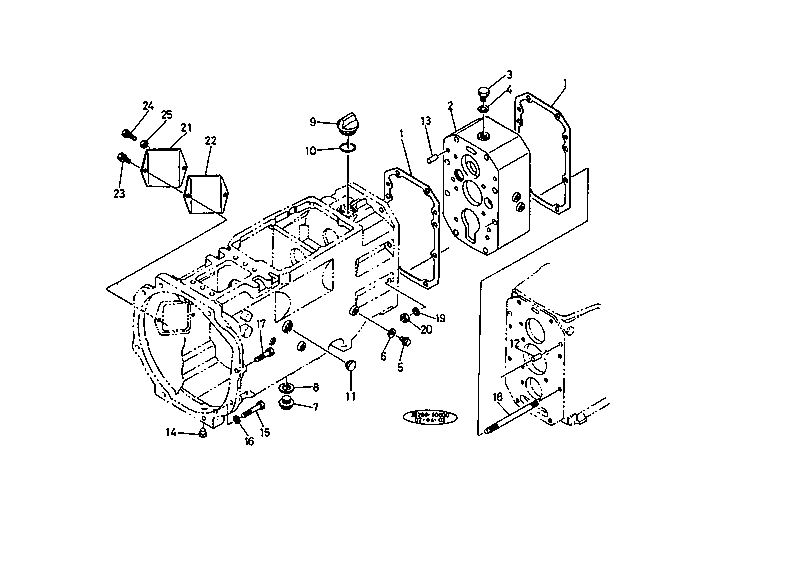

KUBOTA L235 PARTS BODY 031000 MID CASE
