KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	32412-37112	CYLINDER HYD. ***	$1,127.93
020	32425-37120	GASKET N/A	$32.85
030	01574-51245	STUD ***	$2.60
040	01133-51245	BOLT M12x1.25x45 mm	$1.74
050	02176-50120	NUT, HEX M12x1.25 ***	$0.99
060	04512-50120	WASHER, SPRING LOCK ***	$1.70
070	37150-36730	PLUG	$3.34
080	37150-36720	GASKET, COPPER	$3.20
090, 140, 240	31351-37160	PLUG, 9.728 w/6mm Orifice *	$3.34
100	31351-37280	COVER, SIDE LH ***	$37.49
110	06312-10010	PLUG ***	$2.72
120	01123-50825	BOLT M8x1.25x25 mm *	$0.99
130, 250	04817-00100	O-RING	$1.65
210	32400-99810	ASSY OUTLET, HYD ***	$281.42
220	70760-62690	CONNECTOR ***	$324.56
230	01123-50860	BOLT M8x1.25x60 mm ***	$1.44

Ref: 010 Part #: 32412-37112 Price: $1,127.93

Item: CYLINDER HYD. ***

QTY:

Ref: 020 Part #: 32425-37120 Price: $32.85

Item: GASKET N/A

QTY:

Ref: 030 Part #: 01574-51245 Price: $2.60

Item: STUD ***

QTY:

Ref: 040 Part #: 01133-51245 Price: $1.74

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 050 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 060 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 070 Part #: 37150-36730 Price: $3.34

Item: PLUG

QTY:

Ref: 080 Part #: 37150-36720 Price: $3.20

Item: GASKET, COPPER

QTY:

Ref: 090140240 Part #: 31351-37160 Price: $3.34

Item: PLUG, 9.728 w/6mm Orifice *

QTY:

Ref: 100 Part #: 31351-37280 Price: $37.49

Item: COVER, SIDE LH ***

QTY:

Ref: 110 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 120 Part #: 01123-50825 Price: $0.99

Item: BOLT M8x1.25x25 mm *

QTY:

Ref: 130250 Part #: 04817-00100 Price: $1.65

Item: O-RING

QTY:

Ref: 210 Part #: 32400-99810 Price: $281.42

Item: ASSY OUTLET, HYD ***

QTY:

Ref: 220 Part #: 70760-62690 Price: $324.56

Item: CONNECTOR ***

QTY:

Ref: 230 Part #: 01123-50860 Price: $1.44

Item: BOLT M8x1.25x60 mm ***

QTY:

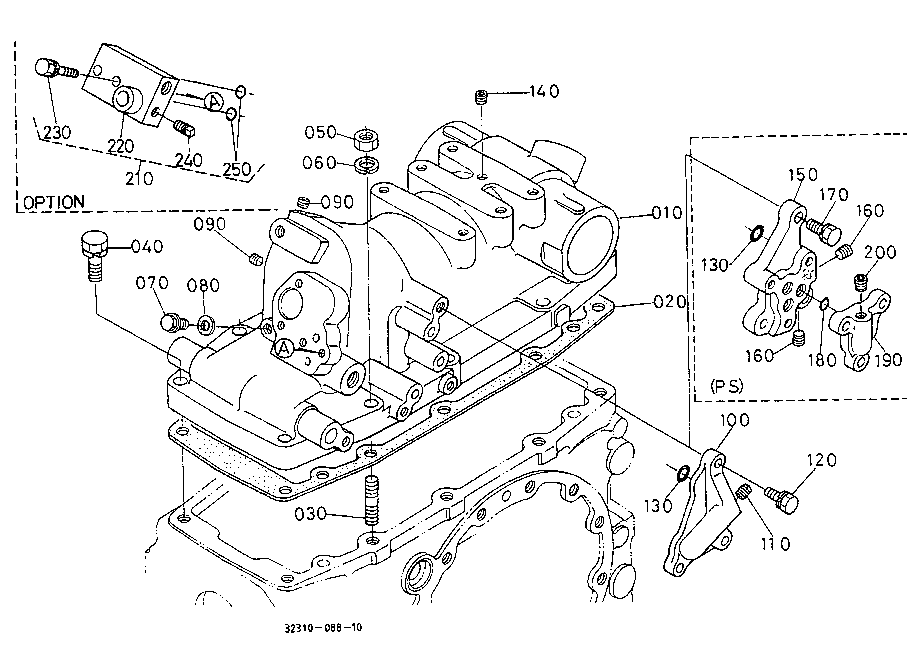

KUBOTA L2350F PARTS HYDRAULIC SYSTEM T09100 HYDRAULIC CYLUNDER
