Ref	Part #	Item	Price
010	32400-35510	PIPE, FUEL 1	$9.26
010	67800-53730	FUEL PIPE 2 ASSY	$6.00
020, 040	14301-42750	CLIP, PIPE	$3.04
030	37260-35520	ASSY. PIPE FUEL	$15.53
050	34070-42633	ASSY PIPE, FUEL OVERFLOW (ID4 OD8 400L)	$8.33
060	09661-40400	TUBE, FUEL	$7.59
065	14971-42750	CLIP, PIPE	$1.24
070	15291-43010	ASSY FILTER, FUEL	$74.88
080	15224-43200	ASSY COVER, FILTER	$66.23
085	15224-43200	ASSY COVER, FILTER	$66.23
086	15224-43200	ASSY COVER, FILTER	$66.23
090	15221-43170	ELEMENT, FILTER FUEL *	$19.60
100	19222-43280	PLUG BREATHER FILTER	$3.13
110	15108-43290	O-RING	$8.95
120	15291-87760	LABEL	$9.86
130	37150-35810	BRACKET, FILTER ***	$31.09
140	01123-50822	BOLT M8x1.25x22 mm ***	$0.99
150	01123-70816	BOLT M8x1.25x16 mm	$0.99
160	02114-50080	NUT, HEX M8-1.25 4T ***	$0.99

Ref: 010 Part #: 32400-35510 Price: $9.26

Item: PIPE, FUEL 1

QTY:

Ref: 010 Part #: 67800-53730 Price: $6.00

Item: FUEL PIPE 2 ASSY

QTY:

Ref: 020040 Part #: 14301-42750 Price: $3.04

Item: CLIP, PIPE

QTY:

Ref: 030 Part #: 37260-35520 Price: $15.53

Item: ASSY. PIPE FUEL

QTY:

Ref: 050 Part #: 34070-42633 Price: $8.33

Item: ASSY PIPE, FUEL OVERFLOW (ID4 OD8 400L)

QTY:

Ref: 060 Part #: 09661-40400 Price: $7.59

Item: TUBE, FUEL

QTY:

Ref: 065 Part #: 14971-42750 Price: $1.24

Item: CLIP, PIPE

QTY:

Ref: 070 Part #: 15291-43010 Price: $74.88

Item: ASSY FILTER, FUEL

QTY:

Ref: 080 Part #: 15224-43200 Price: $66.23

Item: ASSY COVER, FILTER

QTY:

Ref: 085 Part #: 15224-43200 Price: $66.23

Item: ASSY COVER, FILTER

QTY:

Ref: 086 Part #: 15224-43200 Price: $66.23

Item: ASSY COVER, FILTER

QTY:

Ref: 090 Part #: 15221-43170 Price: $19.60

Item: ELEMENT, FILTER FUEL *

QTY:

Ref: 100 Part #: 19222-43280 Price: $3.13

Item: PLUG BREATHER FILTER

QTY:

Ref: 110 Part #: 15108-43290 Price: $8.95

Item: O-RING

QTY:

Ref: 120 Part #: 15291-87760 Price: $9.86

Item: LABEL

QTY:

Ref: 130 Part #: 37150-35810 Price: $31.09

Item: BRACKET, FILTER ***

QTY:

Ref: 140 Part #: 01123-50822 Price: $0.99

Item: BOLT M8x1.25x22 mm ***

QTY:

Ref: 150 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 160 Part #: 02114-50080 Price: $0.99

Item: NUT, HEX M8-1.25 4T ***

QTY:

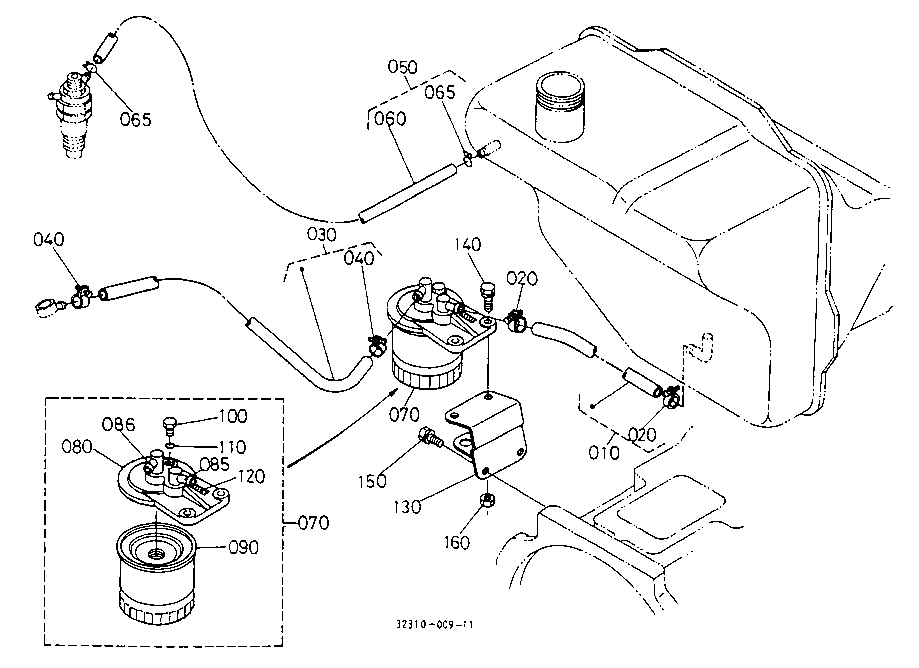

KUBOTA L2500DT PARTS FUEL SYSTEM T03000 FUEL FILTER FUEL PIPE
