Ref	Part #	Item	Price
010	TC220-28134	CASE, BRAKE RH	$645.92
020	TC220-28154	CASE, BRAKE LH	$645.92
040	05012-01018	PIN, STRAIGHT	$1.00
050	37150-27350	STUD	$7.93
060	01133-51260	BOLT M12x1.25x60 mm ***	$1.95
070	01574-51280	STUD	$2.60
080	01574-51260	STUD	$2.57
090	01574-71235	STUD	$1.94
100, 190	04512-50120	WASHER, SPRING LOCK ***	$1.70
110	T3680-80950	NUT,M12,CR	$1.65
120	34070-24190	BOLT	$1.11
130	15471-96650	GASKET, COPPER *	$1.14
140	31351-28214	CAM, BRAKE	$72.91
150	37150-28224	LEVER, BRAKE CAM RH	$45.56
160	37150-28234	LEVER, BRAKE CAM LH	$45.56
170	04816-00220	O-RING	$2.08
180	04015-50120	WASHER, PLAIN ***	$0.99
200	T3630-80990	NUT,M12,4T,CR	$1.28
210	TC620-28770	PLATE,BRAKE CAM LH	$135.50
220	TC620-28780	PLATE,BRAKE CAM RH	$135.50
230	37150-28250	SEAT, BALL	$0.99
240	07715-00805	BALL, BRAKE	$1.07
250	TD170-28200	BRAKE, DISK MAIN	$87.52
260	37720-28170	PLATE, BRAKE	$40.24

Ref: 010 Part #: TC220-28134 Price: $645.92

Item: CASE, BRAKE RH

QTY:

Ref: 020 Part #: TC220-28154 Price: $645.92

Item: CASE, BRAKE LH

QTY:

Ref: 040 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 050 Part #: 37150-27350 Price: $7.93

Item: STUD

QTY:

Ref: 060 Part #: 01133-51260 Price: $1.95

Item: BOLT M12x1.25x60 mm ***

QTY:

Ref: 070 Part #: 01574-51280 Price: $2.60

Item: STUD

QTY:

Ref: 080 Part #: 01574-51260 Price: $2.57

Item: STUD

QTY:

Ref: 090 Part #: 01574-71235 Price: $1.94

Item: STUD

QTY:

Ref: 100190 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 110 Part #: T3680-80950 Price: $1.65

Item: NUT,M12,CR

QTY:

Ref: 120 Part #: 34070-24190 Price: $1.11

Item: BOLT

QTY:

Ref: 130 Part #: 15471-96650 Price: $1.14

Item: GASKET, COPPER *

QTY:

Ref: 140 Part #: 31351-28214 Price: $72.91

Item: CAM, BRAKE

QTY:

Ref: 150 Part #: 37150-28224 Price: $45.56

Item: LEVER, BRAKE CAM RH

QTY:

Ref: 160 Part #: 37150-28234 Price: $45.56

Item: LEVER, BRAKE CAM LH

QTY:

Ref: 170 Part #: 04816-00220 Price: $2.08

Item: O-RING

QTY:

Ref: 180 Part #: 04015-50120 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 200 Part #: T3630-80990 Price: $1.28

Item: NUT,M12,4T,CR

QTY:

Ref: 210 Part #: TC620-28770 Price: $135.50

Item: PLATE,BRAKE CAM LH

QTY:

Ref: 220 Part #: TC620-28780 Price: $135.50

Item: PLATE,BRAKE CAM RH

QTY:

Ref: 230 Part #: 37150-28250 Price: $0.99

Item: SEAT, BALL

QTY:

Ref: 240 Part #: 07715-00805 Price: $1.07

Item: BALL, BRAKE

QTY:

Ref: 250 Part #: TD170-28200 Price: $87.52

Item: BRAKE, DISK MAIN

QTY:

Ref: 260 Part #: 37720-28170 Price: $40.24

Item: PLATE, BRAKE

QTY:

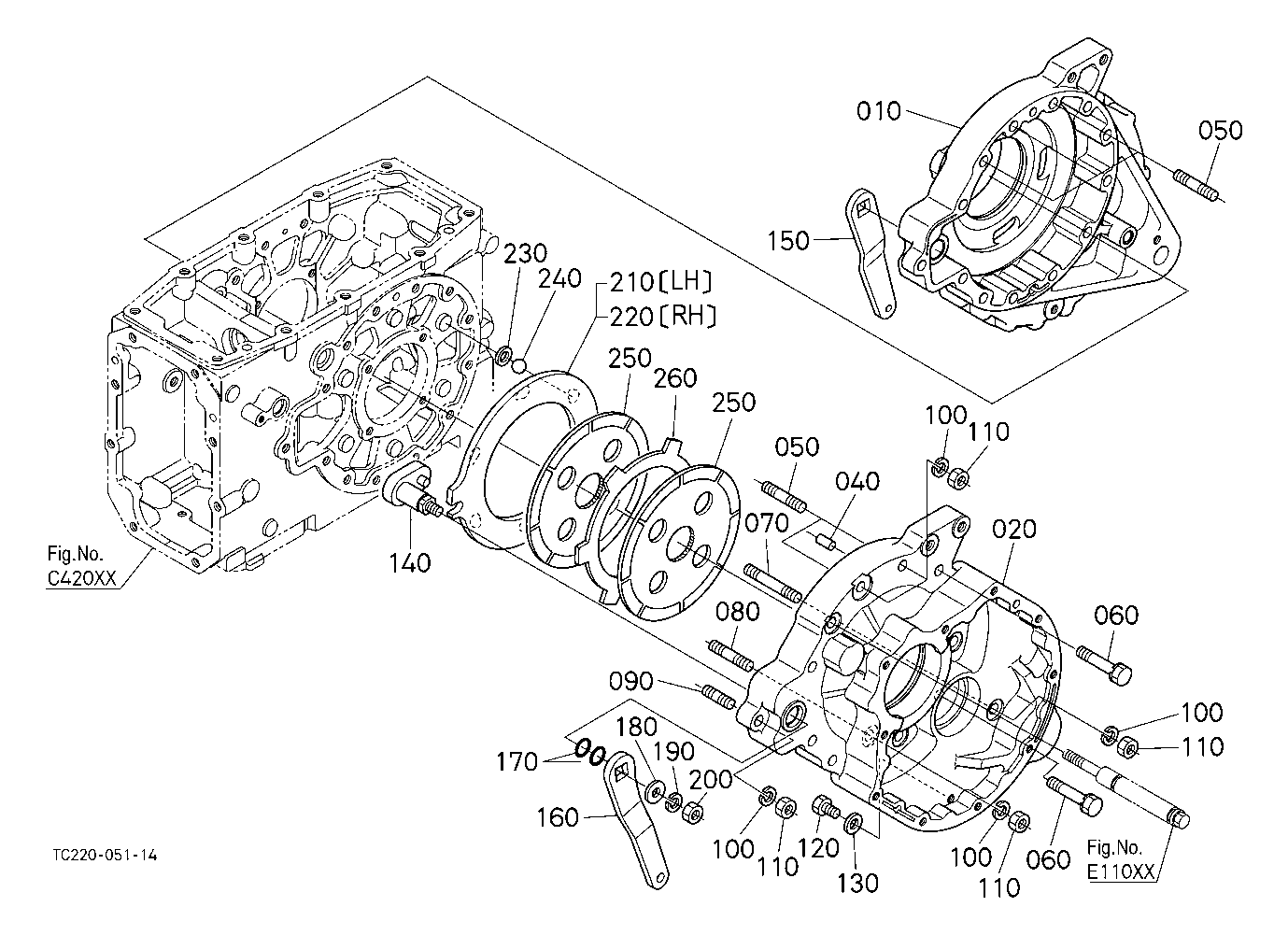

KUBOTA L2501F PARTS REAR AXLE BRAKE E16000 BRAKE
