Ref	Part #	Item	Price
010	TC220-99015	ASSY CASE, CYLINDER	$1,252.05
015	30400-37460	BUSHING	$34.30
016	30400-37450	BUSHING	$35.33
020	37150-36730	PLUG	$3.34
030	37150-36720	GASKET, COPPER	$3.20
040	31351-37160	PLUG, 9.728 w/6mm Orifice *	$3.34
050	31351-37284	COVER, CYL LH	$29.35
060	06312-10010	PLUG ***	$2.72
070	01123-50825	BOLT M8x1.25x25 mm *	$0.99
075	01123-50830	BOLT M8x1.25x30 mm ***	$0.99
080	04817-00100	O-RING	$1.65
090	01574-51245	STUD ***	$2.60
100	01133-51245	BOLT M12x1.25x45 mm	$1.74
110	01133-51255	BOLT M12x1.25x55 mm	$1.90
120	T3680-80950	NUT,M12,CR	$1.65
130	04512-50120	WASHER, SPRING LOCK ***	$1.70
140	TC402-37140	HOSE, BREATHER 2	$4.26
150	36200-21610	BREATHER 1, AXLE FRONT	$10.29
160	YW125-00102	ASSY VALVE, SAFETY	$161.21
170	YW125-55170	O-RING	$3.20
180	04816-06280	O-RING	$2.08
190	06331-45010	PLUG	$2.23
200	04717-01000	WASHER, SEAL W/RUBBER	$1.49

Ref: 010 Part #: TC220-99015 Price: $1,252.05

Item: ASSY CASE, CYLINDER

QTY:

Ref: 015 Part #: 30400-37460 Price: $34.30

Item: BUSHING

QTY:

Ref: 016 Part #: 30400-37450 Price: $35.33

Item: BUSHING

QTY:

Ref: 020 Part #: 37150-36730 Price: $3.34

Item: PLUG

QTY:

Ref: 030 Part #: 37150-36720 Price: $3.20

Item: GASKET, COPPER

QTY:

Ref: 040 Part #: 31351-37160 Price: $3.34

Item: PLUG, 9.728 w/6mm Orifice *

QTY:

Ref: 050 Part #: 31351-37284 Price: $29.35

Item: COVER, CYL LH

QTY:

Ref: 060 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 070 Part #: 01123-50825 Price: $0.99

Item: BOLT M8x1.25x25 mm *

QTY:

Ref: 075 Part #: 01123-50830 Price: $0.99

Item: BOLT M8x1.25x30 mm ***

QTY:

Ref: 080 Part #: 04817-00100 Price: $1.65

Item: O-RING

QTY:

Ref: 090 Part #: 01574-51245 Price: $2.60

Item: STUD ***

QTY:

Ref: 100 Part #: 01133-51245 Price: $1.74

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 110 Part #: 01133-51255 Price: $1.90

Item: BOLT M12x1.25x55 mm

QTY:

Ref: 120 Part #: T3680-80950 Price: $1.65

Item: NUT,M12,CR

QTY:

Ref: 130 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 140 Part #: TC402-37140 Price: $4.26

Item: HOSE, BREATHER 2

QTY:

Ref: 150 Part #: 36200-21610 Price: $10.29

Item: BREATHER 1, AXLE FRONT

QTY:

Ref: 160 Part #: YW125-00102 Price: $161.21

Item: ASSY VALVE, SAFETY

QTY:

Ref: 170 Part #: YW125-55170 Price: $3.20

Item: O-RING

QTY:

Ref: 180 Part #: 04816-06280 Price: $2.08

Item: O-RING

QTY:

Ref: 190 Part #: 06331-45010 Price: $2.23

Item: PLUG

QTY:

Ref: 200 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

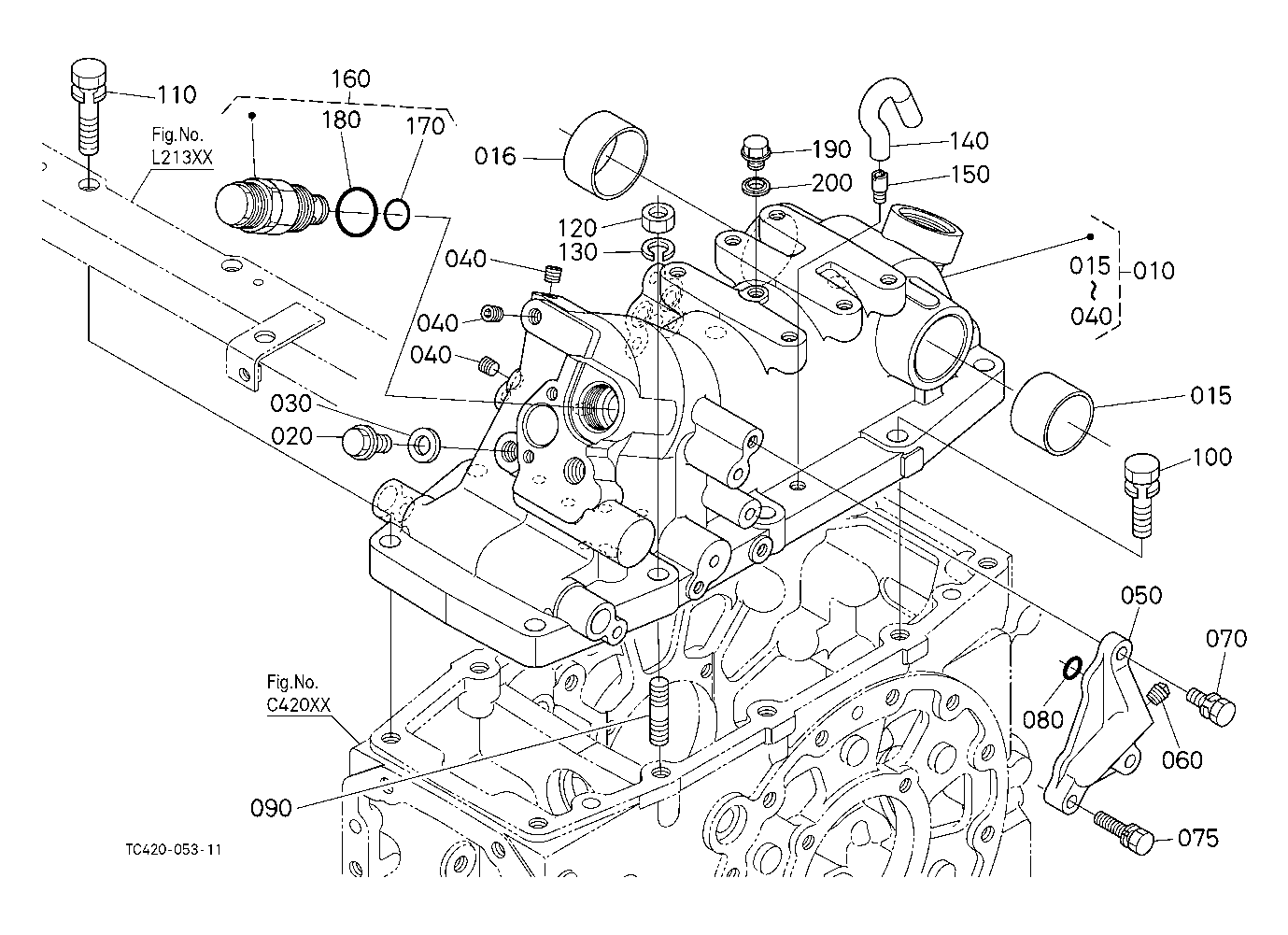

KUBOTA L2501H PARTS HYDRAULIC SYSTEM H30100 HYDRAULIC CYLINDER
