Ref	Part #	Item	Price
010	32330-99960	ASSY CASE, BEVEL GEAR	$450.93
020	31353-43880	PIN, STRAIGHT	$2.08
030	01176-51435	BOLT M14x1.5x35 mm	$2.39
040	04512-50140	WASHER, SPRING ***	$0.99
050	04811-10850	O-RING	$4.16
060	32430-43630	SHAFT,DIFF GEAR LH ***	$74.84
070	31353-43650	GEAR, BEVEL 13T	$139.75
080	08101-06208	BEARING,BALL RADIAL 40/80 ***	$22.31
090	31353-43750	SHIM, 0.40MM	$0.99
090	31353-43760	SHIM, 0.60MM	$1.07
090	31353-43770	SHIM, 0.80MM	$1.07
090	31353-43780	SHIM, 1.00MM	$1.42
090	31353-43790	SHIM, 1.20MM	$1.53
100	31353-43660	GEAR, BEVEL 15T	$139.75
110	36920-40090	BEARING, BALL RADIAL 35/62 ***	$25.49

Ref: 010 Part #: 32330-99960 Price: $450.93

Item: ASSY CASE, BEVEL GEAR

QTY:

Ref: 020 Part #: 31353-43880 Price: $2.08

Item: PIN, STRAIGHT

QTY:

Ref: 030 Part #: 01176-51435 Price: $2.39

Item: BOLT M14x1.5x35 mm

QTY:

Ref: 040 Part #: 04512-50140 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 050 Part #: 04811-10850 Price: $4.16

Item: O-RING

QTY:

Ref: 060 Part #: 32430-43630 Price: $74.84

Item: SHAFT,DIFF GEAR LH ***

QTY:

Ref: 070 Part #: 31353-43650 Price: $139.75

Item: GEAR, BEVEL 13T

QTY:

Ref: 080 Part #: 08101-06208 Price: $22.31

Item: BEARING,BALL RADIAL 40/80 ***

QTY:

Ref: 090 Part #: 31353-43750 Price: $0.99

Item: SHIM, 0.40MM

QTY:

Ref: 090 Part #: 31353-43760 Price: $1.07

Item: SHIM, 0.60MM

QTY:

Ref: 090 Part #: 31353-43770 Price: $1.07

Item: SHIM, 0.80MM

QTY:

Ref: 090 Part #: 31353-43780 Price: $1.42

Item: SHIM, 1.00MM

QTY:

Ref: 090 Part #: 31353-43790 Price: $1.53

Item: SHIM, 1.20MM

QTY:

Ref: 100 Part #: 31353-43660 Price: $139.75

Item: GEAR, BEVEL 15T

QTY:

Ref: 110 Part #: 36920-40090 Price: $25.49

Item: BEARING, BALL RADIAL 35/62 ***

QTY:

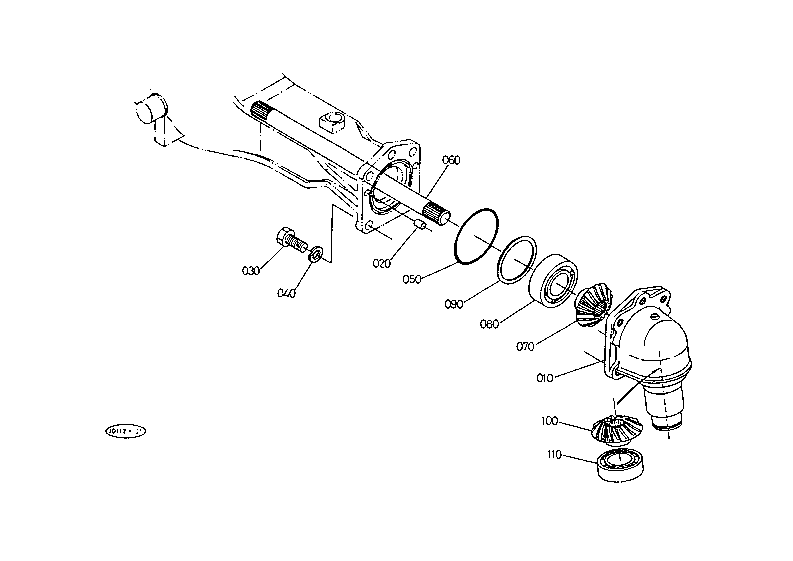

KUBOTA L2850DT PARTS FRONT AXLE AND FRONT WHEEL T08300 DIFF.GEAR SHAFT
