Ref	Part #	Item	Price
010	31351-37310	PISTON, HYDRAULIC	$211.82
020	04811-00750	O-RING	$3.58
030	34350-37330	RING BACK UP	$26.38
040	31351-37320	ROD, HYD. PISTON 3PT	$42.55
050	31351-37330	GUIDE, O/P ROD	$3.34
060	05411-00645	PIN, SPRING	$1.00
060	05411-00656	PIN, SPRING	$1.49
070	31351-37430	SHAFT, O/P ARM ***	$423.97
080	31351-37444	ARM, HYDRAULIC ***	$161.51
090	34550-34320	BUSH	$36.36
100	34550-34330	BUSH	$42.90
110	34150-37480	COLLAR (LIFT ARM)	$8.30
120	37300-37490	COLLAR	$15.08
130	04811-50450	O-RING***	$1.37
140	04811-50500	O RING *	$2.09
150	38240-37613	ARM, LIFT	$197.42
160	04612-00450	CIR-CLIP, EXTERNAL 45mm	$1.49
170	32240-37695	PIN, LIFT ROD	$30.59
170	30442-37690	PIN, LIFT LEVER	$19.88
180	04512-70160	WASHER,SPRING	$0.99
190	02174-50160	NUT,HEX M16x2 4T JIS ***	$1.49
200	34150-37640	PIN, SET	$5.72
210	04011-50180	WASHER, FLAT 18MM (19MM IDX34MM OD) ***	$0.99

Ref: 010 Part #: 31351-37310 Price: $211.82

Item: PISTON, HYDRAULIC

QTY:

Ref: 020 Part #: 04811-00750 Price: $3.58

Item: O-RING

QTY:

Ref: 030 Part #: 34350-37330 Price: $26.38

Item: RING BACK UP

QTY:

Ref: 040 Part #: 31351-37320 Price: $42.55

Item: ROD, HYD. PISTON 3PT

QTY:

Ref: 050 Part #: 31351-37330 Price: $3.34

Item: GUIDE, O/P ROD

QTY:

Ref: 060 Part #: 05411-00645 Price: $1.00

Item: PIN, SPRING

QTY:

Ref: 060 Part #: 05411-00656 Price: $1.49

Item: PIN, SPRING

QTY:

Ref: 070 Part #: 31351-37430 Price: $423.97

Item: SHAFT, O/P ARM ***

QTY:

Ref: 080 Part #: 31351-37444 Price: $161.51

Item: ARM, HYDRAULIC ***

QTY:

Ref: 090 Part #: 34550-34320 Price: $36.36

Item: BUSH

QTY:

Ref: 100 Part #: 34550-34330 Price: $42.90

Item: BUSH

QTY:

Ref: 110 Part #: 34150-37480 Price: $8.30

Item: COLLAR (LIFT ARM)

QTY:

Ref: 120 Part #: 37300-37490 Price: $15.08

Item: COLLAR

QTY:

Ref: 130 Part #: 04811-50450 Price: $1.37

Item: O-RING***

QTY:

Ref: 140 Part #: 04811-50500 Price: $2.09

Item: O RING *

QTY:

Ref: 150 Part #: 38240-37613 Price: $197.42

Item: ARM, LIFT

QTY:

Ref: 160 Part #: 04612-00450 Price: $1.49

Item: CIR-CLIP, EXTERNAL 45mm

QTY:

Ref: 170 Part #: 32240-37695 Price: $30.59

Item: PIN, LIFT ROD

QTY:

Ref: 170 Part #: 30442-37690 Price: $19.88

Item: PIN, LIFT LEVER

QTY:

Ref: 180 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 190 Part #: 02174-50160 Price: $1.49

Item: NUT,HEX M16x2 4T JIS ***

QTY:

Ref: 200 Part #: 34150-37640 Price: $5.72

Item: PIN, SET

QTY:

Ref: 210 Part #: 04011-50180 Price: $0.99

Item: WASHER, FLAT 18MM (19MM IDX34MM OD) ***

QTY:

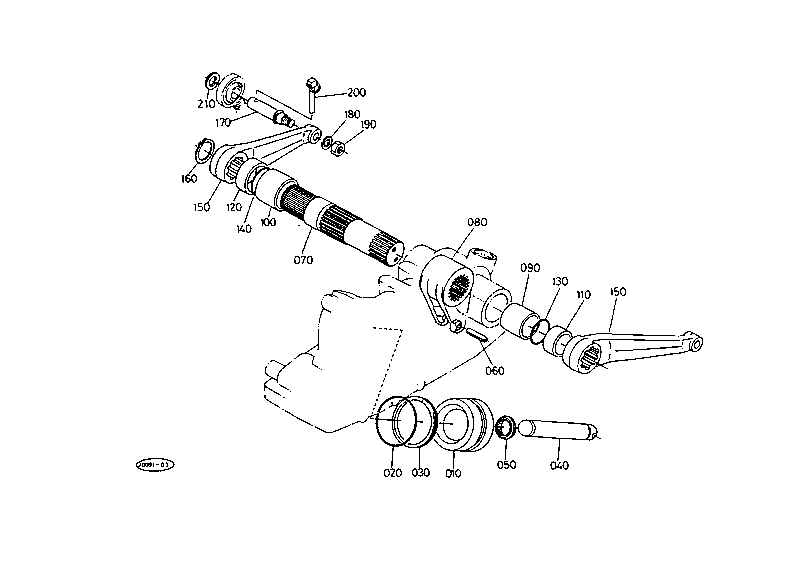

KUBOTA L2850F PARTS HYDRAULIC SYSTEM T10800 LIFT ARM
