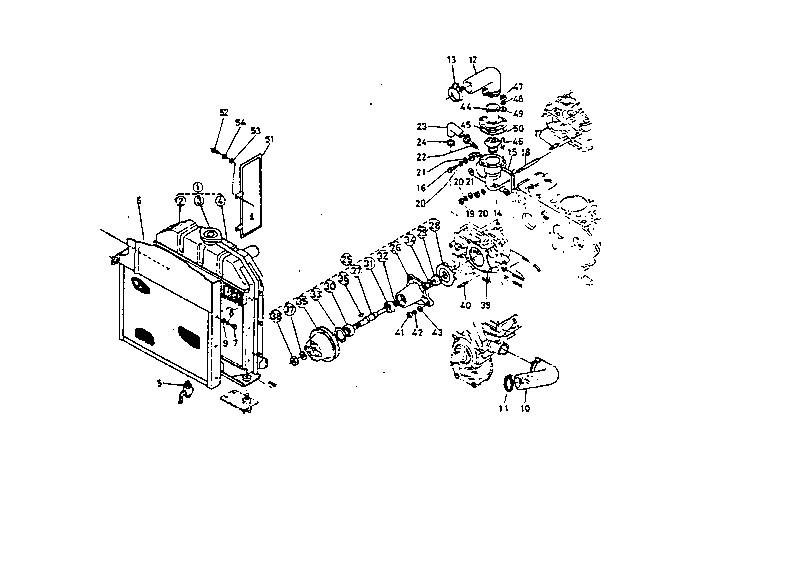

KUBOTA L285P PARTS ENGINE 019000 RADIATOR

    KUBOTA >kubota-l285p-parts-engine-019000-radiator
    Ref: 001  Part #: 15401-72060  Price: $785.87

    Item: ASSY RADIATOR ***

    QTY:
    Ref: 003  Part #: 15272-72020  Price: $26.72

    Item: CAP, RADIATOR ASSY

    QTY:
    Ref: 004  Part #: 15401-72710  Price: $7.19

    Item: PIPE, OVERFLOW

    QTY:
    Ref: 005  Part #: G3600-34390  Price: $67.36

    Item: COCK

    QTY:
    Ref: 006  Part #: 15401-72250  Price: $136.29

    Item: NET RADIATOR ***

    QTY:
    Ref: 007  Part #: 01053-50612  Price: $0.99

    Item: BOLT M6x1.0x12 mm ***

    QTY:
    Ref: 008054  Part #: 04512-50060  Price: $0.99

    Item: WASHER, SPRING ***

    QTY:
    Ref: 009  Part #: 04013-50060  Price: $0.99

    Item: WASHER, PLAIN ***

    QTY:
    Ref: 010  Part #: 15321-72850  Price: $9.44

    Item: HOSE 1, WATER (RADIATOR) ***

    QTY:
    Ref: 011013  Part #: 15108-72870  Price: $3.04

    Item: BAND, HOSE *

    QTY:
    Ref: 012  Part #: 15401-72940  Price: $10.01

    Item: HOSE, WATER ***

    QTY:
    Ref: 014  Part #: 15321-72702  Price: $139.64

    Item: FLANGE

    QTY:
    Ref: 015  Part #: 15296-72920  Price: $5.38

    Item: GASKET, WATER FLANGE

    QTY:
    Ref: 015  Part #: 15296-72920  Price: $5.38

    Item: GASKET, WATER FLANGE

    QTY:
    Ref: 016  Part #: 01053-50822  Price: $0.99

    Item: BOLT M8x1.25x22 mm ***

    QTY:
    Ref: 017  Part #: 01513-50822  Price: $0.99

    Item: STUD ***

    QTY:
    Ref: 018  Part #: 01513-50870  Price: $1.65

    Item: STUD

    QTY:
    Ref: 019041047  Part #: 02056-50080  Price: $1.54

    Item: NUT, HEX M8-1.25, 6T ***

    QTY:
    Ref: 020042048  Part #: 04512-50080  Price: $0.99

    Item: WASHER, SPRING ***

    QTY:
    Ref: 021043049  Part #: 04012-50080  Price: $0.99

    Item: WASHER, PLAIN ***

    QTY:
    Ref: 022  Part #: 15321-73340  Price: $9.76

    Item: PIPE, WATER RETURN

    QTY:
    Ref: 023  Part #: 15321-73350  Price: $6.45

    Item: HOSE 2, WATER ***

    QTY:
    Ref: 024  Part #: 15109-73360  Price: $3.04

    Item: BAND, PIPE

    QTY:
    Ref: 025  Part #: 15401-73033  Price: $336.68

    Item: ASSY PUMP,WATER

    QTY:
    Ref: 027  Part #: 15321-73480  Price: $60.67

    Item: SHAFT

    QTY:
    Ref: 028  Part #: 15521-73510  Price: $33.39

    Item: IMPELLER,WATER PUMP

    QTY:
    Ref: 029  Part #: 19202-73052  Price: $27.25

    Item: ASSY SEAL,MECHANICAL

    QTY:
    Ref: 030  Part #: 08143-06302  Price: $12.45

    Item: BEARING BALL RADIAL15/42

    QTY:
    Ref: 031  Part #: 08143-06202  Price: $7.84

    Item: BEARING BALL RADIAL15/35

    QTY:
    Ref: 032  Part #: 04612-00150  Price: $0.99

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 033  Part #: 04611-00420  Price: $1.65

    Item: CIR-CLIP, INTERNAL

    QTY:
    Ref: 034  Part #: 15121-73620  Price: $8.19

    Item: SLINGER

    QTY:
    Ref: 035  Part #: 15401-74250  Price: $133.16

    Item: PULLEY FAN ***

    QTY:
    Ref: 036  Part #: 12331-95230  Price: $1.98

    Item: KEY, WOODRUFF

    QTY:
    Ref: 037  Part #: 04512-50140  Price: $0.99

    Item: WASHER, SPRING ***

    QTY:
    Ref: 038  Part #: 02076-50140  Price: $0.99

    Item: NUT,M14x1.5 6T

    QTY:
    Ref: 039  Part #: 15439-73430  Price: $5.75

    Item: GASKET, WATER PUMP

    QTY:
    Ref: 040  Part #: 01518-50822  Price: $0.99

    Item: STUD ***

    QTY:
    Ref: 044  Part #: 15321-73260  Price: $16.94

    Item: COVER, THERMOSTAT

    QTY:
    Ref: 045  Part #: 16221-73270  Price: $3.94

    Item: GASKET, THERMOSTAT NA ***

    QTY:
    Ref: 046  Part #: 01518-50832  Price: $13.17

    Item: STUD

    QTY:
    Ref: 050  Part #: 1E401-73012  Price: $42.64

    Item: THERMOSTAT,ASSY

    QTY:
    Ref: 051  Part #: 34260-13850  Price: $42.71

    Item: BELT COVER RH ***

    QTY:
    Ref: 052  Part #: 01050-50614  Price: $0.99

    Item: BOLT

    QTY:
    Ref: 053  Part #: 04012-50060  Price: $0.99

    Item: WASHER, PLAIN ***

    QTY:
