Ref	Part #	Item	Price
001	34260-13114	AXLE FT MIDDLE ***	$944.05
002	34220-13124	AXLE 54 error OB	$520.15
003, 016	32150-11530	BUSHING	$20.18
004	04811-00280	O RING***	$1.67
005	06613-10010	NIPPLE, GREASE	$2.34
006	01173-51485	BOLT	$3.10
007	04512-50140	WASHER, SPRING ***	$0.99
008	02174-50140	NUT, HEX M14-1.5 ***	$1.00
009	34220-13410	PIN CENTER	$45.66
010	34220-13450	COLLAR (FRONT AXLE) ***	$42.81
011	34220-13460	COLLAR, ADJUSTING ***	$35.04
012	32210-13480	NUT ADJUSTING ***	$60.62
013	05511-50440	PIN, SPLIT ***	$0.99
014	05411-01050	PIN, SPRING	$2.60
015	34220-13614	BRACKET FRONT AXCE	Call for price
017	34260-13640	STUD 121mm ***	$16.11
018	01173-51035	BOLT M10x1.25x35 mm ***	$1.31
019	01173-51235	BOLT M12x1.25x35 mm ***	$1.68
020, 032	04512-50120	WASHER, SPRING LOCK ***	$1.70
021	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
022	34260-13752	SUPPORT RAD RH ***	$28.23
023	01133-51020	BOLT M10x1.25x20 mm ***	$1.44
024	15111-72180	CUSHION	$10.17
025	15108-72380	BOLT, RADIATOR SET	$5.13
026	05515-51000	PIN, SNAP ***	$1.00
027	15111-72200	WASHER	$2.60
028	15111-72190	CUSHION	$10.17
030	34260-13810	BUMPER ***	$499.48
031	01173-51225	BOLT M12x1.25x25 mm	$1.31
033	15221-03510	NUT, CYLINDER HEAD	$39.69
034	34260-13760	SUPPORT RADIATOR LH	Call for price

Ref: 001 Part #: 34260-13114 Price: $944.05

Item: AXLE FT MIDDLE ***

QTY:

Ref: 002 Part #: 34220-13124 Price: $520.15

Item: AXLE 54 error OB

QTY:

Ref: 003016 Part #: 32150-11530 Price: $20.18

Item: BUSHING

QTY:

Ref: 004 Part #: 04811-00280 Price: $1.67

Item: O RING***

QTY:

Ref: 005 Part #: 06613-10010 Price: $2.34

Item: NIPPLE, GREASE

QTY:

Ref: 006 Part #: 01173-51485 Price: $3.10

Item: BOLT

QTY:

Ref: 007 Part #: 04512-50140 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 008 Part #: 02174-50140 Price: $1.00

Item: NUT, HEX M14-1.5 ***

QTY:

Ref: 009 Part #: 34220-13410 Price: $45.66

Item: PIN CENTER

QTY:

Ref: 010 Part #: 34220-13450 Price: $42.81

Item: COLLAR (FRONT AXLE) ***

QTY:

Ref: 011 Part #: 34220-13460 Price: $35.04

Item: COLLAR, ADJUSTING ***

QTY:

Ref: 012 Part #: 32210-13480 Price: $60.62

Item: NUT ADJUSTING ***

QTY:

Ref: 013 Part #: 05511-50440 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 014 Part #: 05411-01050 Price: $2.60

Item: PIN, SPRING

QTY:

Ref: 015 Part #: 34220-13614 Price: Call for price

Item: BRACKET FRONT AXCE

QTY:

Ref: 017 Part #: 34260-13640 Price: $16.11

Item: STUD 121mm ***

QTY:

Ref: 018 Part #: 01173-51035 Price: $1.31

Item: BOLT M10x1.25x35 mm ***

QTY:

Ref: 019 Part #: 01173-51235 Price: $1.68

Item: BOLT M12x1.25x35 mm ***

QTY:

Ref: 020032 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 021 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 022 Part #: 34260-13752 Price: $28.23

Item: SUPPORT RAD RH ***

QTY:

Ref: 023 Part #: 01133-51020 Price: $1.44

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 024 Part #: 15111-72180 Price: $10.17

Item: CUSHION

QTY:

Ref: 025 Part #: 15108-72380 Price: $5.13

Item: BOLT, RADIATOR SET

QTY:

Ref: 026 Part #: 05515-51000 Price: $1.00

Item: PIN, SNAP ***

QTY:

Ref: 027 Part #: 15111-72200 Price: $2.60

Item: WASHER

QTY:

Ref: 028 Part #: 15111-72190 Price: $10.17

Item: CUSHION

QTY:

Ref: 030 Part #: 34260-13810 Price: $499.48

Item: BUMPER ***

QTY:

Ref: 031 Part #: 01173-51225 Price: $1.31

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 033 Part #: 15221-03510 Price: $39.69

Item: NUT, CYLINDER HEAD

QTY:

Ref: 034 Part #: 34260-13760 Price: Call for price

Item: SUPPORT RADIATOR LH

QTY:

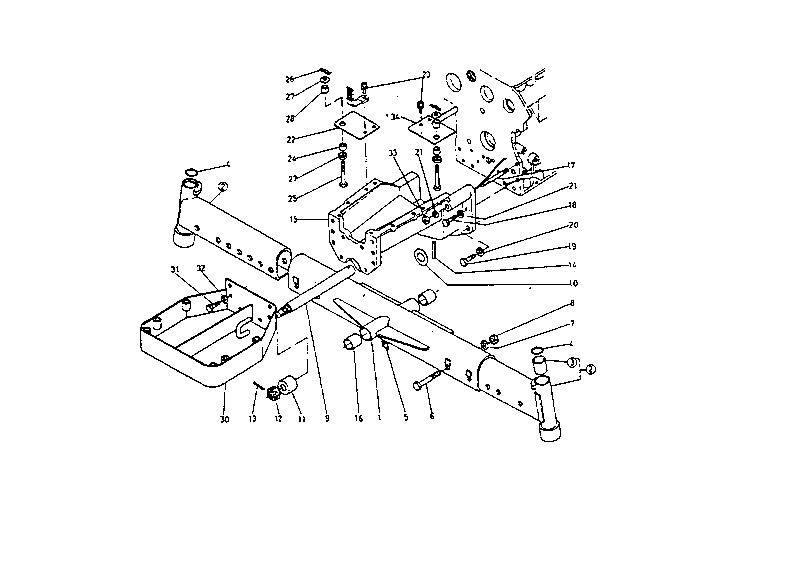

KUBOTA L285P PARTS FRONT AXLE AND FRONT WHEEL 023000 FRONT AXLE
