Ref	Part #	Item	Price
010	35060-27600	ASSY REAR WHEEL	Call for price
020	35060-27910	ASSY REAR WHEEL LH	Call for price
030, 120	35060-27620	TIRE	Call for price
040, 130	70000-00053	RIM & CLAMP, 24XW10- 4 Z CLAMPS	$284.66
060, 150	35080-27660	DISC,FC 6-6.693-5.325-21.543 24" 4 LUG *	$313.52
070, 160	31220-27680	BOLT, M16-2x35 RD HD SQ NECK *	$9.14
080, 170	02174-50160	NUT,HEX M16x2 4T JIS ***	$1.49
090, 180, 230	04512-70160	WASHER,SPRING	$0.99
100	35060-27980	LABEL,TIRE LH	Call for price
110	35060-27990	ASSY REAR WHEEL RH	Call for price
190	35060-27970	LABEL,TIRE RH	Call for price
200	01073-51630	BOLT M16x1.5x30 mm	$2.27
210	02076-50160	NUT,HEX M16x1.5 ***	$1.65
220	01517-51632	STUD	$2.92

Ref: 010 Part #: 35060-27600 Price: Call for price

Item: ASSY REAR WHEEL

QTY:

Ref: 020 Part #: 35060-27910 Price: Call for price

Item: ASSY REAR WHEEL LH

QTY:

Ref: 030120 Part #: 35060-27620 Price: Call for price

Item: TIRE

QTY:

Ref: 040130 Part #: 70000-00053 Price: $284.66

Item: RIM & CLAMP, 24XW10- 4 Z CLAMPS

QTY:

Ref: 060150 Part #: 35080-27660 Price: $313.52

Item: DISC,FC 6-6.693-5.325-21.543 24" 4 LUG *

QTY:

Ref: 070160 Part #: 31220-27680 Price: $9.14

Item: BOLT, M16-2x35 RD HD SQ NECK *

QTY:

Ref: 080170 Part #: 02174-50160 Price: $1.49

Item: NUT,HEX M16x2 4T JIS ***

QTY:

Ref: 090180230 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 100 Part #: 35060-27980 Price: Call for price

Item: LABEL,TIRE LH

QTY:

Ref: 110 Part #: 35060-27990 Price: Call for price

Item: ASSY REAR WHEEL RH

QTY:

Ref: 190 Part #: 35060-27970 Price: Call for price

Item: LABEL,TIRE RH

QTY:

Ref: 200 Part #: 01073-51630 Price: $2.27

Item: BOLT M16x1.5x30 mm

QTY:

Ref: 210 Part #: 02076-50160 Price: $1.65

Item: NUT,HEX M16x1.5 ***

QTY:

Ref: 220 Part #: 01517-51632 Price: $2.92

Item: STUD

QTY:

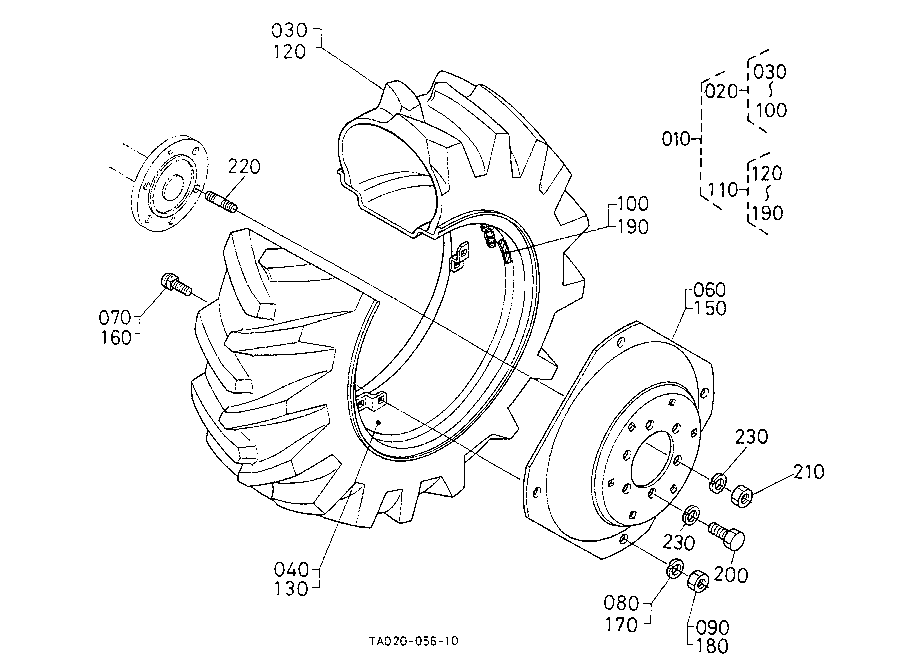

KUBOTA L2900DT GST PARTS FRONT REAR TIRE T07401 REAR WHEEL (11.2-24)
