KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	32420-21910	GEAR-SHAFT 13 ***	$256.86
020, 120, 140	37150-21551	CIR-CLIP, EXTERNAL	$9.78
030	35260-23270	BOSS, SPLINE 2 ***	$49.28
040	35260-23299	SHIFTER ***	$914.75
050	34070-12280	CIR-CLIP, EXTERNAL	$5.41
060	08151-06305	BEARING, BALL (RADIAL) 25/62 *	$15.74
070	34150-21942	RETAINER, BEARING	$6.95
080	01123-50820	BOLT M8x1.25x20 mm ***	$0.99
090	32430-21922	GEAR, 28T	$133.41
100, 270	32430-21990	COLLAR (COUNTERSHAFT 2)	$9.12
110	08101-06305	BEARING,BALL(RADIAL)	$12.26
130	32420-22510	SHAFT, COUNTER 2 ***	$118.11
150	08151-06205	BEARING BALL RADIAL25/52	$12.11
160	35260-23300	RETAINER, BEARING	$4.57
170	01123-50816	BOLT M8x1.25x16 mm ***	$0.99
180	31361-22520	GEAR ***	$113.64
190	31361-22530	BEARING CYL ROLLER25/62 ***	$66.83
200	38430-21762	COLLAR, THRUST	$14.89
210	31361-22540	RING, INNER ***	$26.15
220	35260-23240	WASHER	$7.22
230	32440-22570	BRG NDL ROLLER32/39	$21.72
235	35080-22560	BEARING, NDL ROL RAD32/39	$21.17
240	31361-22550	GEAR ***	$187.47
250	35260-23260	BOSS, SPLINE 1 ***	$241.48
260	35260-23252	NUT 22	$7.22
280	31351-21822	GEAR, 42T	$172.90

Ref: 010 Part #: 32420-21910 Price: $256.86

Item: GEAR-SHAFT 13 ***

QTY:

Ref: 020120140 Part #: 37150-21551 Price: $9.78

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 030 Part #: 35260-23270 Price: $49.28

Item: BOSS, SPLINE 2 ***

QTY:

Ref: 040 Part #: 35260-23299 Price: $914.75

Item: SHIFTER ***

QTY:

Ref: 050 Part #: 34070-12280 Price: $5.41

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 060 Part #: 08151-06305 Price: $15.74

Item: BEARING, BALL (RADIAL) 25/62 *

QTY:

Ref: 070 Part #: 34150-21942 Price: $6.95

Item: RETAINER, BEARING

QTY:

Ref: 080 Part #: 01123-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 090 Part #: 32430-21922 Price: $133.41

Item: GEAR, 28T

QTY:

Ref: 100270 Part #: 32430-21990 Price: $9.12

Item: COLLAR (COUNTERSHAFT 2)

QTY:

Ref: 110 Part #: 08101-06305 Price: $12.26

Item: BEARING,BALL(RADIAL)

QTY:

Ref: 130 Part #: 32420-22510 Price: $118.11

Item: SHAFT, COUNTER 2 ***

QTY:

Ref: 150 Part #: 08151-06205 Price: $12.11

Item: BEARING BALL RADIAL25/52

QTY:

Ref: 160 Part #: 35260-23300 Price: $4.57

Item: RETAINER, BEARING

QTY:

Ref: 170 Part #: 01123-50816 Price: $0.99

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 180 Part #: 31361-22520 Price: $113.64

Item: GEAR ***

QTY:

Ref: 190 Part #: 31361-22530 Price: $66.83

Item: BEARING CYL ROLLER25/62 ***

QTY:

Ref: 200 Part #: 38430-21762 Price: $14.89

Item: COLLAR, THRUST

QTY:

Ref: 210 Part #: 31361-22540 Price: $26.15

Item: RING, INNER ***

QTY:

Ref: 220 Part #: 35260-23240 Price: $7.22

Item: WASHER

QTY:

Ref: 230 Part #: 32440-22570 Price: $21.72

Item: BRG NDL ROLLER32/39

QTY:

Ref: 235 Part #: 35080-22560 Price: $21.17

Item: BEARING, NDL ROL RAD32/39

QTY:

Ref: 240 Part #: 31361-22550 Price: $187.47

Item: GEAR ***

QTY:

Ref: 250 Part #: 35260-23260 Price: $241.48

Item: BOSS, SPLINE 1 ***

QTY:

Ref: 260 Part #: 35260-23252 Price: $7.22

Item: NUT 22

QTY:

Ref: 280 Part #: 31351-21822 Price: $172.90

Item: GEAR, 42T

QTY:

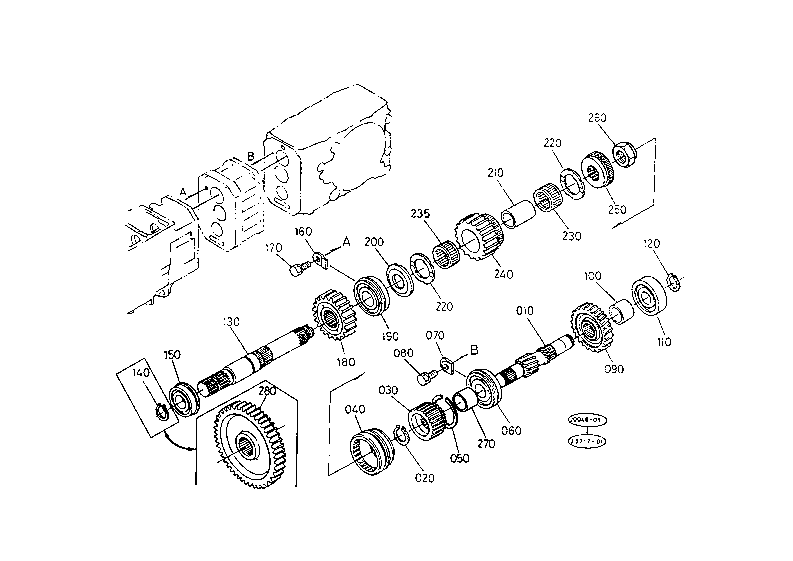

KUBOTA L2950DT WET PARTS TRANSMISSION T05100 COUNTERSHAFT 2
