KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	TC020-14710	LEVER, CLUTCH ***	$81.82
020	TC220-14720	FORK, CLUTCH RELEASE	$80.38
020	TC220-14720	FORK, CLUTCH RELEASE	$80.38
030	31150-14780	KEY, FORK	$21.57
040	31351-14750	BOLT	$5.41
050	04512-70080	WASHER,SPRING	$0.99
060	31351-14813	HUB,CLUTCH RELEASE	$161.34
070	38430-14820	BEARING,BALL THRUST 55/84	$85.41
080	05411-00314	PIN, SPRING	$0.99
090	TC020-25510	CASE,PROPELLER SHAFT	$85.71
100	09500-35477	SEAL, OIL	$8.22
110	08813-84820	BEARING, NDL ROLLER38/48	$12.90
120	31351-15460	CIR-CLIP	$4.42
130	04811-10670	O-RING	$4.03
140	01123-50830	BOLT M8x1.25x30 mm ***	$0.99
140	01123-50835	BOLT M8x1.25x35 mm ***	$1.04

Ref: 010 Part #: TC020-14710 Price: $81.82

Item: LEVER, CLUTCH ***

QTY:

Ref: 020 Part #: TC220-14720 Price: $80.38

Item: FORK, CLUTCH RELEASE

QTY:

Ref: 020 Part #: TC220-14720 Price: $80.38

Item: FORK, CLUTCH RELEASE

QTY:

Ref: 030 Part #: 31150-14780 Price: $21.57

Item: KEY, FORK

QTY:

Ref: 040 Part #: 31351-14750 Price: $5.41

Item: BOLT

QTY:

Ref: 050 Part #: 04512-70080 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 060 Part #: 31351-14813 Price: $161.34

Item: HUB,CLUTCH RELEASE

QTY:

Ref: 070 Part #: 38430-14820 Price: $85.41

Item: BEARING,BALL THRUST 55/84

QTY:

Ref: 080 Part #: 05411-00314 Price: $0.99

Item: PIN, SPRING

QTY:

Ref: 090 Part #: TC020-25510 Price: $85.71

Item: CASE,PROPELLER SHAFT

QTY:

Ref: 100 Part #: 09500-35477 Price: $8.22

Item: SEAL, OIL

QTY:

Ref: 110 Part #: 08813-84820 Price: $12.90

Item: BEARING, NDL ROLLER38/48

QTY:

Ref: 120 Part #: 31351-15460 Price: $4.42

Item: CIR-CLIP

QTY:

Ref: 130 Part #: 04811-10670 Price: $4.03

Item: O-RING

QTY:

Ref: 140 Part #: 01123-50830 Price: $0.99

Item: BOLT M8x1.25x30 mm ***

QTY:

Ref: 140 Part #: 01123-50835 Price: $1.04

Item: BOLT M8x1.25x35 mm ***

QTY:

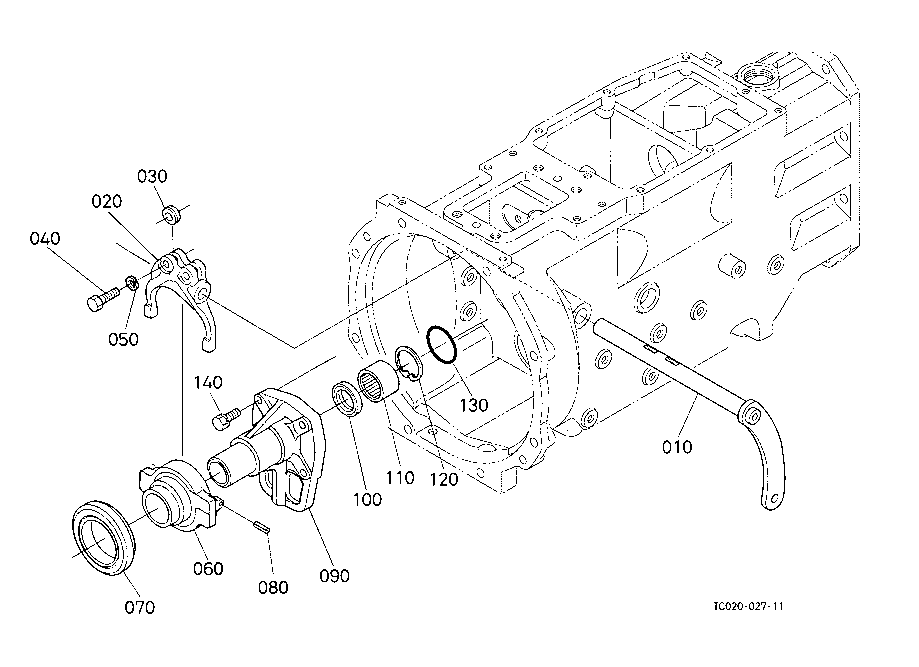

KUBOTA L3000DT PARTS TRANSMISSION CLUTCH REAR AXLE C20102 CLUTCH LEVER
