Ref	Part #	Item	Price
010	TC020-26710	GEAR-SHAFT, DIFF. RH	$255.03
020	TC020-26720	GEAR-SHAFT, DIFF. LH	$273.41
030	08101-06309	BEARING, BALL (RAD45/100	$32.66
040	04611-01000	CIR-CLIP, INTERNAL	$13.37
050	04612-00450	CIR-CLIP, EXTERNAL 45mm	$1.49
060	32400-27313	CASE, AXLE RH	$699.50
060	32400-27313	CASE, AXLE RH	$699.50
070, 160	31331-26832	GEAR 53	$384.31
080, 170	32400-27110	AXLE,REAR ***	$714.13
090, 180	32400-27140	SPACER	$27.48
100, 190	T0030-27160	WASHER	$2.92
110, 200	08101-06209	BEARING,BALL RADIAL 45/85	$24.91
120, 210	04611-00850	CIR-CLIP, INTERNAL	$8.83
130, 220	70650-11380	NUT	$45.14
140, 230	37150-27560	SEAL, OIL	$40.00
150	32400-27333	CASE, AXLE LH	$702.50
150	32400-27333	CASE, AXLE LH	$702.50
240	08101-06306	BEARING, BALL (RADIAL)	$15.18
250	TC020-27350	GASKET, AXLE CASE	$32.85
260	31351-27392	BOLT, REAMER	$2.01
270	01133-51020	BOLT M10x1.25x20 mm ***	$1.44
280	01517-51016	STUD	$0.99
290	04512-70100	WASHER,SPRING	$0.99
300	02176-50100	NUT,HEX M10-1.25mm 6T ***	$0.99

Ref: 010 Part #: TC020-26710 Price: $255.03

Item: GEAR-SHAFT, DIFF. RH

QTY:

Ref: 020 Part #: TC020-26720 Price: $273.41

Item: GEAR-SHAFT, DIFF. LH

QTY:

Ref: 030 Part #: 08101-06309 Price: $32.66

Item: BEARING, BALL (RAD45/100

QTY:

Ref: 040 Part #: 04611-01000 Price: $13.37

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 050 Part #: 04612-00450 Price: $1.49

Item: CIR-CLIP, EXTERNAL 45mm

QTY:

Ref: 060 Part #: 32400-27313 Price: $699.50

Item: CASE, AXLE RH

QTY:

Ref: 060 Part #: 32400-27313 Price: $699.50

Item: CASE, AXLE RH

QTY:

Ref: 070160 Part #: 31331-26832 Price: $384.31

Item: GEAR 53

QTY:

Ref: 080170 Part #: 32400-27110 Price: $714.13

Item: AXLE,REAR ***

QTY:

Ref: 090180 Part #: 32400-27140 Price: $27.48

Item: SPACER

QTY:

Ref: 100190 Part #: T0030-27160 Price: $2.92

Item: WASHER

QTY:

Ref: 110200 Part #: 08101-06209 Price: $24.91

Item: BEARING,BALL RADIAL 45/85

QTY:

Ref: 120210 Part #: 04611-00850 Price: $8.83

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 130220 Part #: 70650-11380 Price: $45.14

Item: NUT

QTY:

Ref: 140230 Part #: 37150-27560 Price: $40.00

Item: SEAL, OIL

QTY:

Ref: 150 Part #: 32400-27333 Price: $702.50

Item: CASE, AXLE LH

QTY:

Ref: 150 Part #: 32400-27333 Price: $702.50

Item: CASE, AXLE LH

QTY:

Ref: 240 Part #: 08101-06306 Price: $15.18

Item: BEARING, BALL (RADIAL)

QTY:

Ref: 250 Part #: TC020-27350 Price: $32.85

Item: GASKET, AXLE CASE

QTY:

Ref: 260 Part #: 31351-27392 Price: $2.01

Item: BOLT, REAMER

QTY:

Ref: 270 Part #: 01133-51020 Price: $1.44

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 280 Part #: 01517-51016 Price: $0.99

Item: STUD

QTY:

Ref: 290 Part #: 04512-70100 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 300 Part #: 02176-50100 Price: $0.99

Item: NUT,HEX M10-1.25mm 6T ***

QTY:

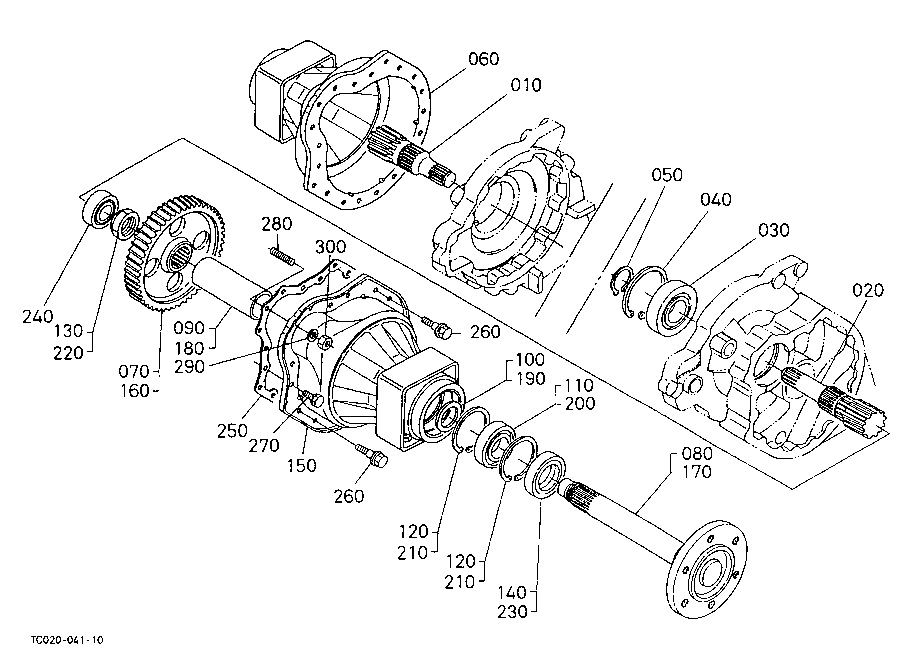

KUBOTA L3000DT PARTS TRANSMISSION CLUTCH REAR AXLE D30102 REAR AXLE
