Ref	Part #	Item	Price
010	32420-13110	AXLE, FRONT MIDDLE ***	$981.72
020	TA020-13120	AXLE, FRONT OUTER	$814.14
030	38240-13130	BUSHING	$28.35
040	38240-13140	SEAL, OIL	$6.98
050	06613-10010	NIPPLE, GREASE	$2.34
060	01173-51495	BOLT	$3.20
070	38240-13150	COLLAR	$9.59
080	04512-70140	WASHER,SPRING *	$0.99
090	02176-50140	NUT	$1.00
100	TA040-11500	ASSY HOLDER, FRONT	$184.62
110, 200	38240-13430	WASHER, THRUST	$4.80
120, 210	08511-04025	BUSHING	$10.29
130, 230	38240-13160	SEAL, OIL	$8.45
140, 240	01133-51228	BOLT M12x1.25x28 mm	$1.49
150	38630-44760	BOLT	$8.52
160	38440-44750	WASHER, SEAL	$1.49
170	02176-50160	NUT, HEX	$1.49
180	38240-13690	ASSY BRACKET, FRONT AXLE	$187.32
190	38240-13684	BRACKET	Call for price
220	06312-10010	PLUG ***	$2.72

Ref: 010 Part #: 32420-13110 Price: $981.72

Item: AXLE, FRONT MIDDLE ***

QTY:

Ref: 020 Part #: TA020-13120 Price: $814.14

Item: AXLE, FRONT OUTER

QTY:

Ref: 030 Part #: 38240-13130 Price: $28.35

Item: BUSHING

QTY:

Ref: 040 Part #: 38240-13140 Price: $6.98

Item: SEAL, OIL

QTY:

Ref: 050 Part #: 06613-10010 Price: $2.34

Item: NIPPLE, GREASE

QTY:

Ref: 060 Part #: 01173-51495 Price: $3.20

Item: BOLT

QTY:

Ref: 070 Part #: 38240-13150 Price: $9.59

Item: COLLAR

QTY:

Ref: 080 Part #: 04512-70140 Price: $0.99

Item: WASHER,SPRING *

QTY:

Ref: 090 Part #: 02176-50140 Price: $1.00

Item: NUT

QTY:

Ref: 100 Part #: TA040-11500 Price: $184.62

Item: ASSY HOLDER, FRONT

QTY:

Ref: 110200 Part #: 38240-13430 Price: $4.80

Item: WASHER, THRUST

QTY:

Ref: 120210 Part #: 08511-04025 Price: $10.29

Item: BUSHING

QTY:

Ref: 130230 Part #: 38240-13160 Price: $8.45

Item: SEAL, OIL

QTY:

Ref: 140240 Part #: 01133-51228 Price: $1.49

Item: BOLT M12x1.25x28 mm

QTY:

Ref: 150 Part #: 38630-44760 Price: $8.52

Item: BOLT

QTY:

Ref: 160 Part #: 38440-44750 Price: $1.49

Item: WASHER, SEAL

QTY:

Ref: 170 Part #: 02176-50160 Price: $1.49

Item: NUT, HEX

QTY:

Ref: 180 Part #: 38240-13690 Price: $187.32

Item: ASSY BRACKET, FRONT AXLE

QTY:

Ref: 190 Part #: 38240-13684 Price: Call for price

Item: BRACKET

QTY:

Ref: 220 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

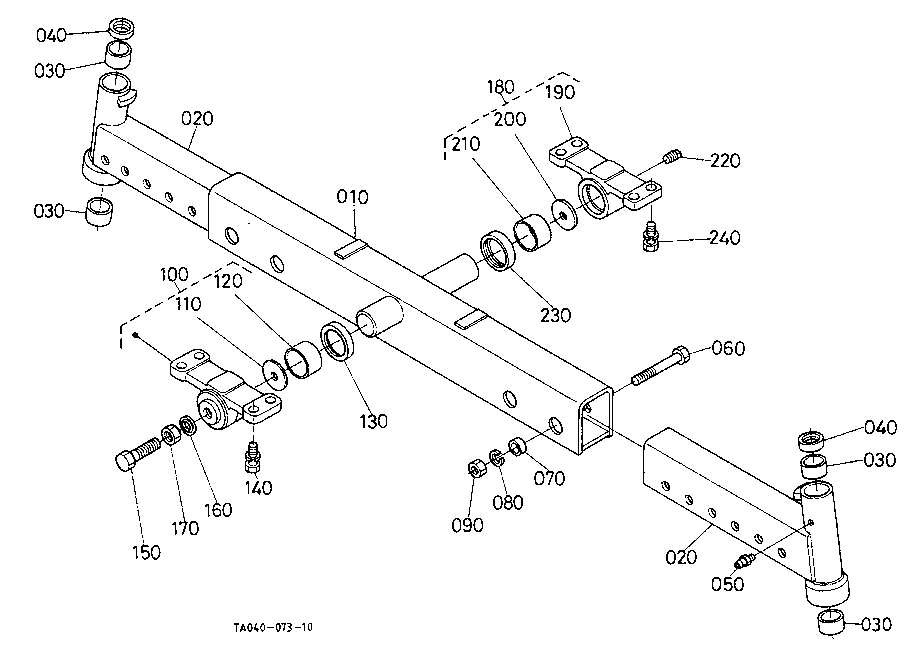

KUBOTA L3010F PARTS FRONT AXLE CHASSIS F11000 FRONT AXLE
