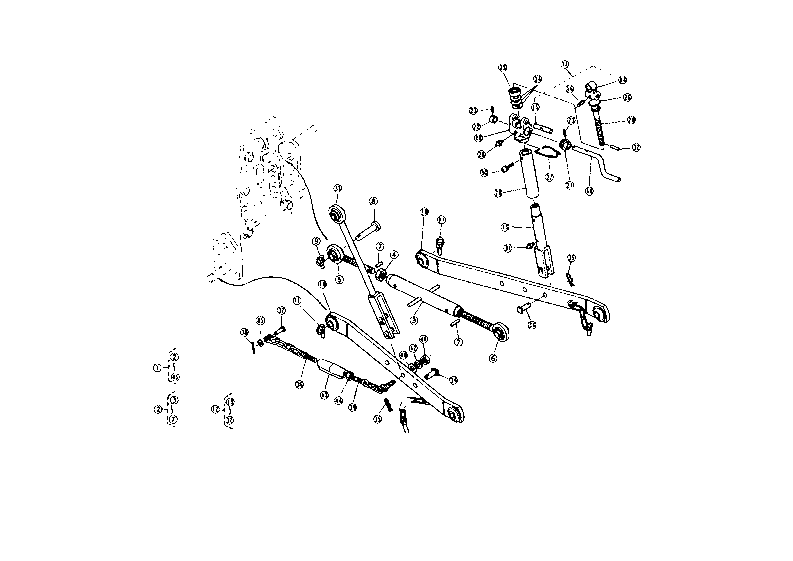

KUBOTA L305DT PARTS HITCH DRAWBAR T05900 3-POINT LINKAGE

    KUBOTA >kubota-l305dt-parts-hitch-drawbar-t05900-3-point-linkage
    Ref: 002  Part #: 35080-71104  Price: $417.64

    Item: ASSY LINK,TOP

    QTY:
    Ref: 003  Part #: 32244-71110  Price: $86.05

    Item: LINK, TOP

    QTY:
    Ref: 004  Part #: 32244-71180  Price: $10.11

    Item: NUT,TOP LINK

    QTY:
    Ref: 005  Part #: 37307-71210  Price: $111.24

    Item: JOINT, TOP LINK 1

    QTY:
    Ref: 006  Part #: 37307-71220  Price: $63.18

    Item: JOINT, TOP LINK 2

    QTY:
    Ref: 007  Part #: 05411-00425  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 008  Part #: 31150-71360  Price: $12.54

    Item: PIN, JOINT

    QTY:
    Ref: 009011  Part #: 34150-37640  Price: $5.72

    Item: PIN, SET

    QTY:
    Ref: 010  Part #: 37307-71310  Price: $584.73

    Item: LOWER LINK ASSEMBLY**

    QTY:
    Ref: 012  Part #: 37307-71560  Price: $302.29

    Item: ROD, ADJ ASSY.

    QTY:
    Ref: 013  Part #: 37307-71520  Price: $58.07

    Item: LOWER LIFT ROD

    QTY:
    Ref: 014  Part #: 31351-71570  Price: $88.55

    Item: JOINT, GEARCASE

    QTY:
    Ref: 015  Part #: 38247-71550  Price: $20.55

    Item: PIN, LIFT ROD

    QTY:
    Ref: 016  Part #: 05411-00532  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 017  Part #: 31351-71590  Price: $121.97

    Item: JOINT,ASSY GEARCASE

    QTY:
    Ref: 018  Part #: 34264-71710  Price: $150.77

    Item: CASE, LIFT ROD GEAR

    QTY:
    Ref: 019  Part #: 32244-71610  Price: $85.22

    Item: HANDLE LIFT ROD

    QTY:
    Ref: 020  Part #: 32244-71640  Price: $283.55

    Item: SCREW, ROD

    QTY:
    Ref: 021  Part #: 32244-71650  Price: $203.35

    Item: GEAR, LIFT ROD

    QTY:
    Ref: 022  Part #: 32244-71670  Price: $19.14

    Item: COLLAR (3-POINT LINK) ***

    QTY:
    Ref: 023  Part #: 05411-00622  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 024  Part #: 31220-71720  Price: $18.98

    Item: SHIM, LIFT ROD

    QTY:
    Ref: 025  Part #: 32294-71770  Price: $32.85

    Item: BEARING, THRUST BALL11/37

    QTY:
    Ref: 026  Part #: 06311-75045  Price: $0.99

    Item: PLUG, EXPANSION *

    QTY:
    Ref: 027  Part #: 32244-71730  Price: $25.78

    Item: STOPPER, HANDLE

    QTY:
    Ref: 028031  Part #: 06613-10675  Price: $2.34

    Item: NIPPLE, GREASE

    QTY:
    Ref: 029  Part #: 34264-71704  Price: $21.76

    Item: PIPE

    QTY:
    Ref: 030  Part #: 01202-50612  Price: $0.99

    Item: BOLT M6x1.0x12 mm ***

    QTY:
    Ref: 032  Part #: 05411-00420  Price: $0.99

    Item: PIN, SPRING

    QTY:
    Ref: 033  Part #: 37307-71540  Price: $245.15

    Item: ROD, LIFT LH

    QTY:
    Ref: 034  Part #: 34354-71580  Price: $24.78

    Item: PIN, LIFT ROD

    QTY:
    Ref: 035  Part #: 05515-51600  Price: $0.99

    Item: PIN, SNAP

    QTY:
    Ref: 036  Part #: 37307-71810  Price: $86.26

    Item: STABILIZER, 1

    QTY:
    Ref: 037  Part #: 32353-71890  Price: $8.83

    Item: PIN

    QTY:
    Ref: 038  Part #: 05511-50425  Price: $0.99

    Item: PIN, SPLIT ***

    QTY:
    Ref: 039  Part #: 37307-71820  Price: $290.53

    Item: STABILIZER, 2 ***

    QTY:
    Ref: 040  Part #: 37307-71830  Price: $41.20

    Item: WASHER ***

    QTY:
    Ref: 041  Part #: 02174-50180  Price: $1.65

    Item: NUT ***

    QTY:
    Ref: 042  Part #: 04512-50180  Price: $0.99

    Item: WASHER, SPRING LOCK ***

    QTY:
    Ref: 043  Part #: 36200-91190  Price: $79.02

    Item: TURNBACKLE

    QTY:
    Ref: 044  Part #: 02154-50160  Price: $1.49

    Item: NUT

    QTY:
    Ref: 045  Part #: 04013-50120  Price: $0.99

    Item: WASHER, PLAIN M12 ***

    QTY:
    Ref: 046  Part #: 37267-71800  Price: $172.55

    Item: STABILIZER, ASSY**

    QTY:
