Ref	Part #	Item	Price
001	35340-21113	CAST TRANSMISSION	$1,204.25
002	32210-27580	PLUG, BLIND	$1.39
003	31220-14290	PLUG	$1.07
004	37150-21272	COVER	$93.03
005	32425-21280	GASKET NA	$10.20
006	34150-14260	PLUG, DRAIN *	$10.29
007	04717-02150	WASHER, SEAL w/RUBBER	$2.37
008	01173-51235	BOLT M12x1.25x35 mm ***	$1.68
009, 015	04512-50120	WASHER, SPRING LOCK ***	$1.70
010	01222-50816	BOLT	$0.99
011	04512-50080	WASHER, SPRING ***	$0.99
012	37300-71220	BRACKET, RH LWR LINK	$141.34
013	37300-71230	BRACKET, LH LWR LINK ***	$183.23
014	01176-51232	BOLT	$1.94
016	35320-29710	FRAME	$445.35
017	01173-51430	BOLT M14x1.5x30 mm ***	$1.90
018	04512-50140	WASHER, SPRING ***	$0.99
019	35320-29720	LINK,SUPPORT ***	$69.95
020	99553-78210	DRAWBAR	$325.87
021	99533-78240	DRAWBAR	$186.49
022	01173-51665	BOLT M16x1.5x65 mm	$2.59
023	04512-70160	WASHER,SPRING	$0.99
024	02174-50160	NUT,HEX M16x2 4T JIS ***	$1.49
025	37300-29780	PIN	$28.40
026	70515-16330	PIN, SPRING	$9.78
026	70515-16330	PIN, SPRING	$9.78
027	99533-78250	PIN	$38.32
028	34150-37640	PIN, SET	$5.72
029	35320-25330	PROTECTOR ***	$144.24
030	04013-50100	WASHER, M10 PLAIN ***	$0.99
031	01133-51025	BOLT M10x1.25x25 mm ***	$1.55
032	35320-25440	SUPPORT,PROTECTOR ***	$19.13
033	01517-51428	STUD,WHEEL	$2.23
034	02174-50140	NUT, HEX M14-1.5 ***	$1.00

Ref: 001 Part #: 35340-21113 Price: $1,204.25

Item: CAST TRANSMISSION

QTY:

Ref: 002 Part #: 32210-27580 Price: $1.39

Item: PLUG, BLIND

QTY:

Ref: 003 Part #: 31220-14290 Price: $1.07

Item: PLUG

QTY:

Ref: 004 Part #: 37150-21272 Price: $93.03

Item: COVER

QTY:

Ref: 005 Part #: 32425-21280 Price: $10.20

Item: GASKET NA

QTY:

Ref: 006 Part #: 34150-14260 Price: $10.29

Item: PLUG, DRAIN *

QTY:

Ref: 007 Part #: 04717-02150 Price: $2.37

Item: WASHER, SEAL w/RUBBER

QTY:

Ref: 008 Part #: 01173-51235 Price: $1.68

Item: BOLT M12x1.25x35 mm ***

QTY:

Ref: 009015 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 010 Part #: 01222-50816 Price: $0.99

Item: BOLT

QTY:

Ref: 011 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 012 Part #: 37300-71220 Price: $141.34

Item: BRACKET, RH LWR LINK

QTY:

Ref: 013 Part #: 37300-71230 Price: $183.23

Item: BRACKET, LH LWR LINK ***

QTY:

Ref: 014 Part #: 01176-51232 Price: $1.94

Item: BOLT

QTY:

Ref: 016 Part #: 35320-29710 Price: $445.35

Item: FRAME

QTY:

Ref: 017 Part #: 01173-51430 Price: $1.90

Item: BOLT M14x1.5x30 mm ***

QTY:

Ref: 018 Part #: 04512-50140 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 019 Part #: 35320-29720 Price: $69.95

Item: LINK,SUPPORT ***

QTY:

Ref: 020 Part #: 99553-78210 Price: $325.87

Item: DRAWBAR

QTY:

Ref: 021 Part #: 99533-78240 Price: $186.49

Item: DRAWBAR

QTY:

Ref: 022 Part #: 01173-51665 Price: $2.59

Item: BOLT M16x1.5x65 mm

QTY:

Ref: 023 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 024 Part #: 02174-50160 Price: $1.49

Item: NUT,HEX M16x2 4T JIS ***

QTY:

Ref: 025 Part #: 37300-29780 Price: $28.40

Item: PIN

QTY:

Ref: 026 Part #: 70515-16330 Price: $9.78

Item: PIN, SPRING

QTY:

Ref: 026 Part #: 70515-16330 Price: $9.78

Item: PIN, SPRING

QTY:

Ref: 027 Part #: 99533-78250 Price: $38.32

Item: PIN

QTY:

Ref: 028 Part #: 34150-37640 Price: $5.72

Item: PIN, SET

QTY:

Ref: 029 Part #: 35320-25330 Price: $144.24

Item: PROTECTOR ***

QTY:

Ref: 030 Part #: 04013-50100 Price: $0.99

Item: WASHER, M10 PLAIN ***

QTY:

Ref: 031 Part #: 01133-51025 Price: $1.55

Item: BOLT M10x1.25x25 mm ***

QTY:

Ref: 032 Part #: 35320-25440 Price: $19.13

Item: SUPPORT,PROTECTOR ***

QTY:

Ref: 033 Part #: 01517-51428 Price: $2.23

Item: STUD,WHEEL

QTY:

Ref: 034 Part #: 02174-50140 Price: $1.00

Item: NUT, HEX M14-1.5 ***

QTY:

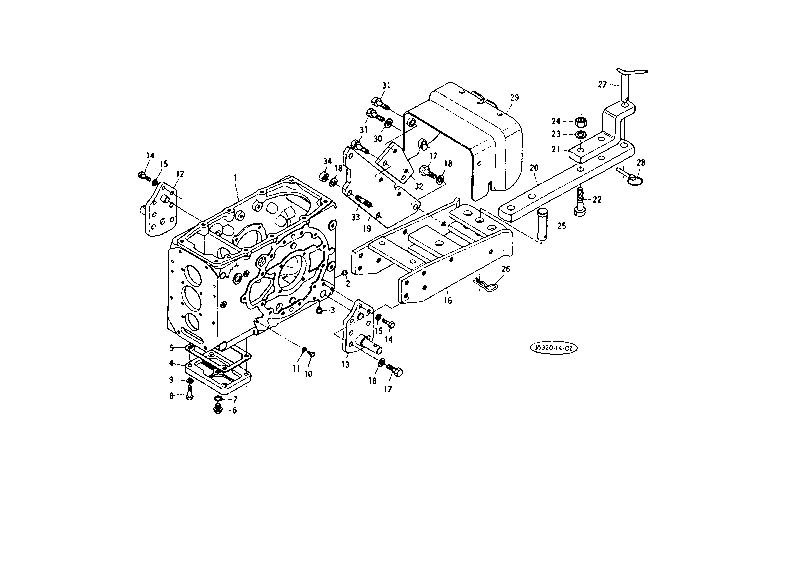

KUBOTA L305F PARTS TRANSMISSION CLUTCH REAR AXLE T03300 TRASNMISSION CASE
